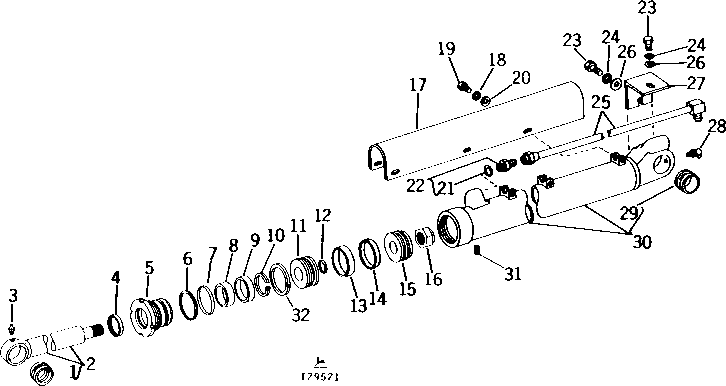

Запчасти John Deere 90 15 - BUCKET CYLINDER 65 - BOOM, DIPPERSTICK, BUCKETS AND CYLINDERS

1

U46436

BUSHING

1шт.

2

AU43224

ROD

1шт.

3

JD7759

LUBRICATION FITTING

STRAIGHT, 1/8"

1шт.

4

U45832

SEAL

(A)

1шт.

5

R69276

GUIDE

(SUB FOR T38716) (SUB R77566)

1шт.

R77566

GUIDE

1шт.

6

R78818

BACK-UP RING

(A) (SUB FOR T38484, THIS APPLICATION)

1шт.

U44590

BACK-UP RING

(A)

1шт.

7

T38485

O-RING

(A)

1шт.

T70176

O-RING

(A)

1шт.

8

U45830

PISTON RING

(A)

1шт.

9

R76781

SEAL

(A) (SUB FOR T36188)

1шт.

10

SNAP RING

( U45829 NO LONGER AVAILABLE)

1шт.

11

T38717

PISTON

1шт.

12

P50631

O-RING

(A)

1шт.

13

T52425

PACKING

(A) (SUB FOR T32937)

1шт.

14

U45180

WEAR RING

(A)

1шт.

15

T52506

PISTON

(SUB FOR T38718)

1шт.

16

U43399

LOCK NUT

1шт.

17

T38721

SHIELD

1шт.

18

12H301

LOCK WASHER

1/2"

6шт.

19

19H1741

CAP SCREW

1/2" X 1-1/8"

6шт.

20

24H1111

WASHER

17/32" X 1-1/16" X 0.090"

6шт.

21

R29936

O-RING

1шт.

22

AU43250

FITTING

1шт.

23

19H3483

CAP SCREW

3/8" X 1-1/8"

2шт.

24

12H304

LOCK WASHER

3/8"

2шт.

25

AT37540

TUBE

1шт.

26

24H1305

WASHER

13/32" X 13/16" X 0.065"

2шт.

27

T38720

ANGLE

1шт.

28

JD7781

LUBRICATION FITTING

90°, 1/8"

1шт.

29

U45831

BUSHING

1шт.

30

AT37537

HYDRAULIC CYLINDER BARREL

WITH BUSHING

1шт.

31

22H842

SET SCREW

1/4" X 5/16"

1шт.

32

U46616

PISTON RING

1шт.

AT37536

CYLINDER

LESS RETURN TUBE, SHIELD, CLAMP AND ATTACHING HARDWARE

1шт.

AR105312

HYDRAULIC CYLINDER KIT

(SUB FOR AT37322)

1шт.
