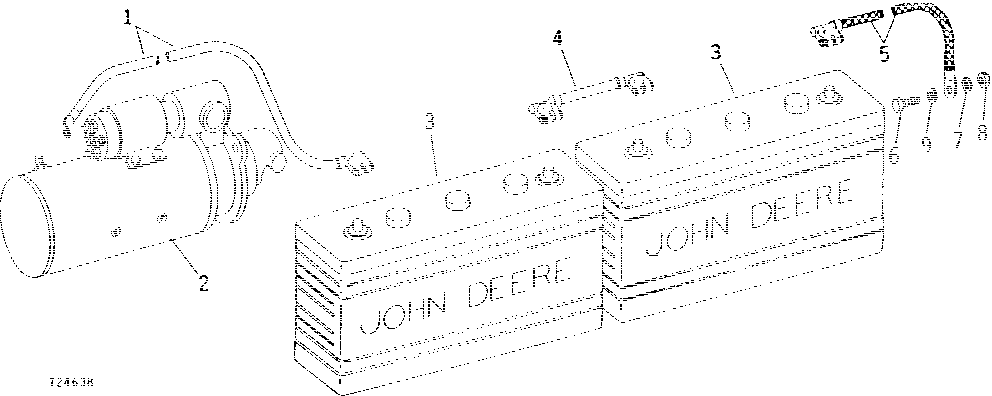

Запчасти John Deere 90 1 - STARTING MOTOR AND BATTERIES 85 - ALTERNATOR, STARTING MOTOR, REGULATOR AND BATTERIES

1

AU43041

CABLE

1шт.

2

AR62267

STARTER MOTOR

(SUB FOR AR41627 AND AR55638) (SUB AR78538) (DELCO-REMY NO. 1113672 AND 1113402) (FOR PARTS SEE PAGES 85-9 AND 85-10) (SEE PAGES 85-11, 85-12 AND 85-13)

1шт.

AR77254

STARTER MOTOR

(SUB FOR AR55639) (JOHN DEERE) (FOR PARTS SEE PAGES 85-14, 85-15, 85-16 AND 85-17)

1шт.

3

AR45450

BATTERY

2шт.

AT37931

BATTERY

2шт.

4

AT165190

BATTERY CABLE

(SUB FOR AR45927)

1шт.

AR46231

CABLE

1шт.

5

AU43040

CABLE

1шт.

AR26622

GROUND CABLE

1шт.

AT25418

GROUND CABLE

1шт.

6

19H2676

CAP SCREW

3/8" X 1"

1шт.

19H3239

CAP SCREW

3/8" X 1-1/4"

1шт.

19H1648

CAP SCREW

3/8" X 3/4"

1шт.

7

12H304

LOCK WASHER

3/8"

1шт.

8

14H812

NUT

3/8"

1шт.

9

24M7096

WASHER

0.413" X 0.709" X 0.063"

1шт.
