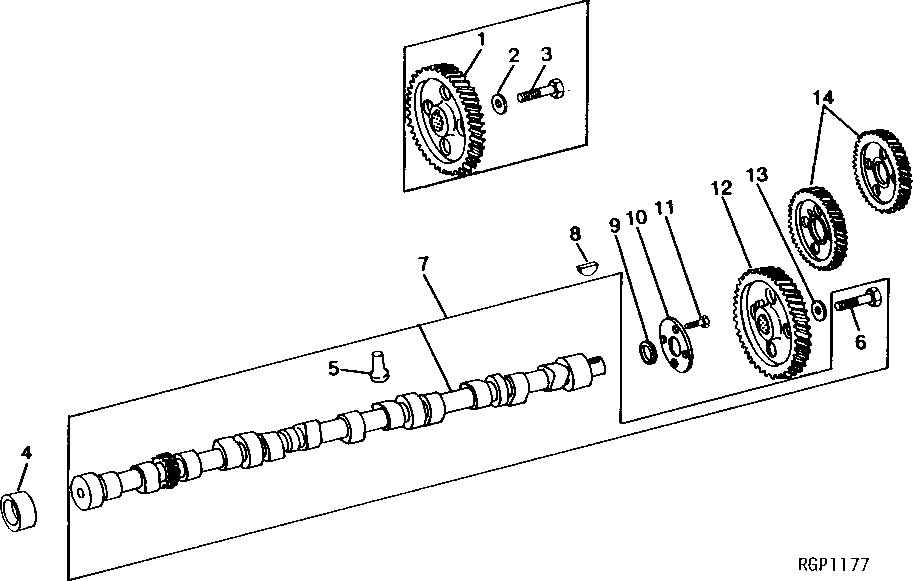

Запчасти John Deere 90 7 - CAMSHAFT AND GEARS 10 - ENGINE

1

AR43594

GEAR

(MARKED R43742)

1шт.

2

R35256

WASHER

1шт.

3

19H2993

CAP SCREW

1/2" X 1-1/2"

1шт.

4

R46903

BUSHING

(SUB FOR R42339)

4шт.

5

R52773

CAM FOLLOWER

12шт.

6

19H3182

CAP SCREW

1/2" X 1-7/8", (USE WITH R57289 OR R59420)

1шт.

19H2473

CAP SCREW

1/2" X 1-3/4", (USE WITH R61150)

1шт.

R93238

CAP SCREW

1/2" X 2", (USE WITH R71529 OR R71531) (SUB FOR R79850, THIS APPLICATION)

1шт.

7

RE15727

CAMSHAFT

(MARKED R43677, R59420, R61150 OR R71531) (SUB FOR AR63280, AR71709, AR74144 OR AR100384)

1шт.

AR100385

KIT

(MARKED R64086 OR R71529) (SUB FOR AR79610)

1шт.

8

26H72

SHAFT KEY

1/8" X 5/8"

1шт.

9

R42356

WASHER

1шт.

10

R49275

WASHER

1шт.

11

19H1813

CAP SCREW

5/16" X 5/8"

4шт.

12

AR49503

GEAR

(MARKED R46999)

1шт.

34H170

SPRING PIN

3/8" X 7/8"

1шт.

13

R47012

WASHER

1шт.

14

AR52671

GEAR

(MARKED R47011 AND R47013) (MATCHED SET)

1шт.
