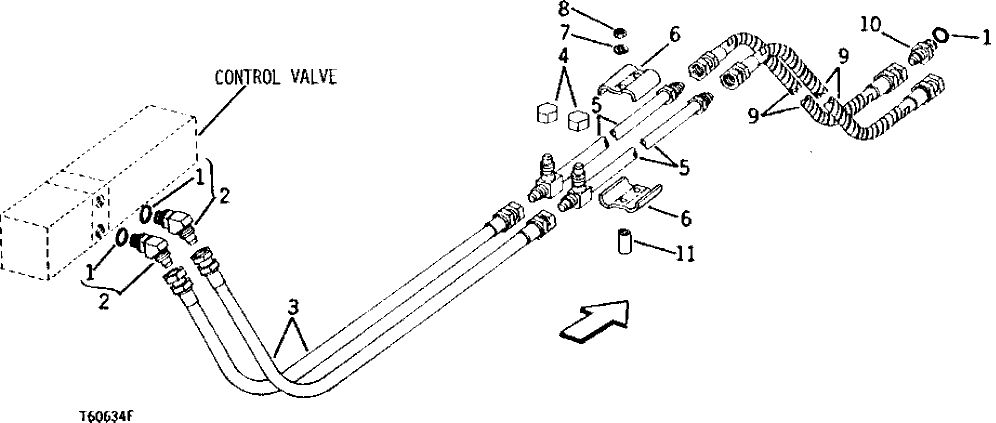

Запчасти John Deere 90B 5 - OIL LINES, VALVE TO CROWD CYLINDER 60 - HYDRAULIC SYSTEM

1

R29936

O-RING

3шт.

2

AU43288

ELBOW FITTING

45°

2шт.

3

AT34207

HYDRAULIC HOSE - FABRICATE

1-5/16" X 1 118 MM (44") X 1-5/16"

2шт.

4

U45826

FITTING

2шт.

5

AU43581

LINE

2шт.

6

T35868

CLAMP

4шт.

7

12H301

LOCK WASHER

1/2"

4шт.

8

H32811

LOCK NUT

(SUB FOR U14502)

4шт.

9

AT35140

HYDRAULIC HOSE - FABRICATE

1-5/16" X 1 448 MM (57") X 1-5/16", WITH SPRING GUARD

2шт.

10

T26767

FITTING

(SUB FOR AU43250)

1шт.

X2503-16-16

ELBOW FITTING

(SUB FOR AU42832)

1шт.

U44756

FITTING

(USE WITH X2503-16-16) (NOT ILLUSTRATED)

1шт.

11

Z24862

SPACER

(SUB FOR L1730N)

4шт.
