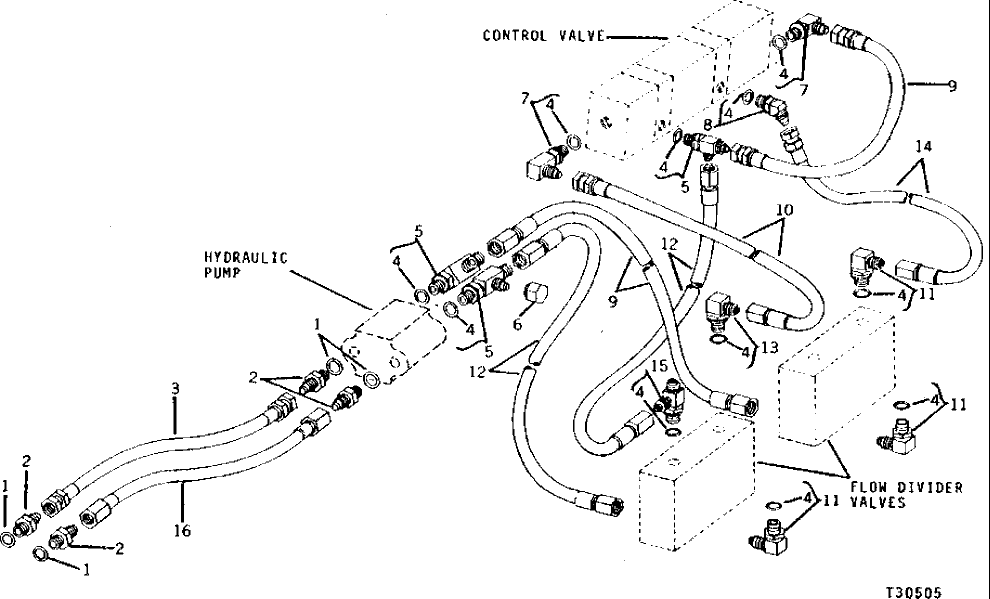

Запчасти John Deere 90B 16 - HYDRAULIC PUMP OIL LINES 60 - HYDRAULIC SYSTEM

1

U13639

O-RING

4шт.

2

T35268

ADAPTER FITTING

2шт.

3

AT80713

HYDRAULIC HOSE - FABRICATE

863 MM LONG (1-7/8" X 34") (PUMP TO RESERVOIR) (SUB FOR AT36104)

1шт.

4

R29936

O-RING

11шт.

5

X20R5OX-S

TEE FITTING

(SUB FOR AT31891)

2шт.

6

U45826

FITTING

37° FLARE

2шт.

7

X2503-16-16

ELBOW FITTING

(SUB FOR AU42832) 90°

2шт.

8

AU43288

ELBOW FITTING

45°

1шт.

9

AT34207

HYDRAULIC HOSE - FABRICATE

1 118 MM LONG (1-5/16" X 44") (PUMP TEE TO R.H. FLOW DIVIDER, AND CONTROL VALVE END COVER TO R.H. POWER BEYOND)

1шт.

10

AU43293

HYDRAULIC HOSE - FABRICATE

1 448 MM LONG (1-5/16" X 57") (CONTROL VALVE TO R.H. FLOW DIVIDER)

1шт.

11

X2503-16-16

ELBOW FITTING

(SUB FOR AU42832) ADJUSTABLE 90°

1шт.

12

AU43765

HYDRAULIC HOSE - FABRICATE

927 MM LONG (1-5/16" X 36-1/2") (PUMP TO R.H. FLOW DIVIDER AND CONTROL VALVE TO R.H. FLOW DIVIDER)

2шт.

13

AT33917

ELBOW FITTING

90° SWIVEL, (SUB FOR AR29422)

1шт.

14

AT34207

HYDRAULIC HOSE - FABRICATE

1 118 MM LONG (1-5/16" X 44") (CONTROL VALVE TO L.H. FLOW DIVIDER)

1шт.

15

X20R5OX-S

TEE FITTING

(SUB FOR AT31891)

2шт.

16

AT36104

HYDRAULIC HOSE

762 MM LONG (1-7/8" X 30") (PUMP TO RESERVOIR)

1шт.
