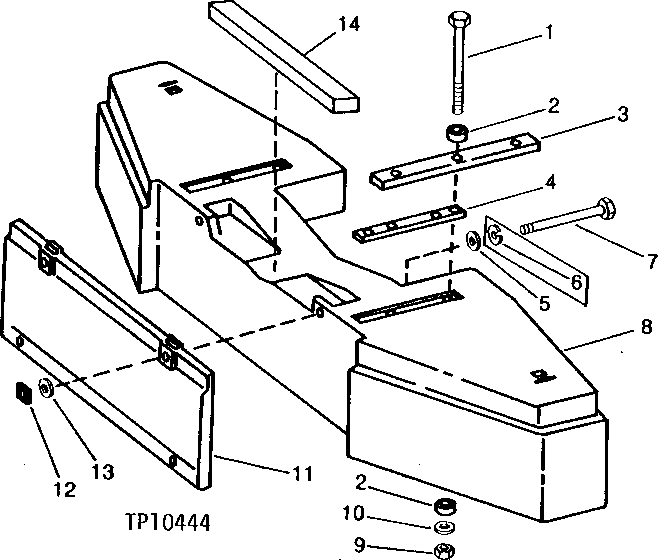

Запчасти John Deere 90B 7 - REAR BUMPER 70 - GRILLE, HOOD, FENDERS AND BUMPER

1

08H4645

CAP SCREW

HEX. MACH., 3/4" X 12-1/2"

4шт.

2

U10104

BUSHING

8шт.

3

T34532

STRAP

2шт.

T78631

STRAP

2шт.

4

U45290

STRAP

2шт.

T78630

STRAP

2шт.

5

24H1698

WASHER

21/32" X 1-5/8" X 1/4"

4шт.

6

12H294

LOCK WASHER

5/8"

4шт.

7

19H2599

CAP SCREW

5/8" X 2-1/2"

4шт.

8

T54798

BUMPER

(SUB T78632 IF AVAILABLE)

1шт.

BUMPER

( T78632 USE IF AVAILABLE)

1шт.

9

14H794

NUT

3/4"

4шт.

10

12H236

LOCK WASHER

3/4"

4шт.

11

T39538

BUMPER

CENTER

1шт.

12

14H955

NUT

SQ. 5/8"

4шт.

13

24H1376

WASHER

11/16" X 1-1/8" X 0.134"

ARшт.

24H1698

WASHER

21/32" X 1-5/8" X 1/4"

ARшт.

14

T54772

ISOLATOR

1шт.
