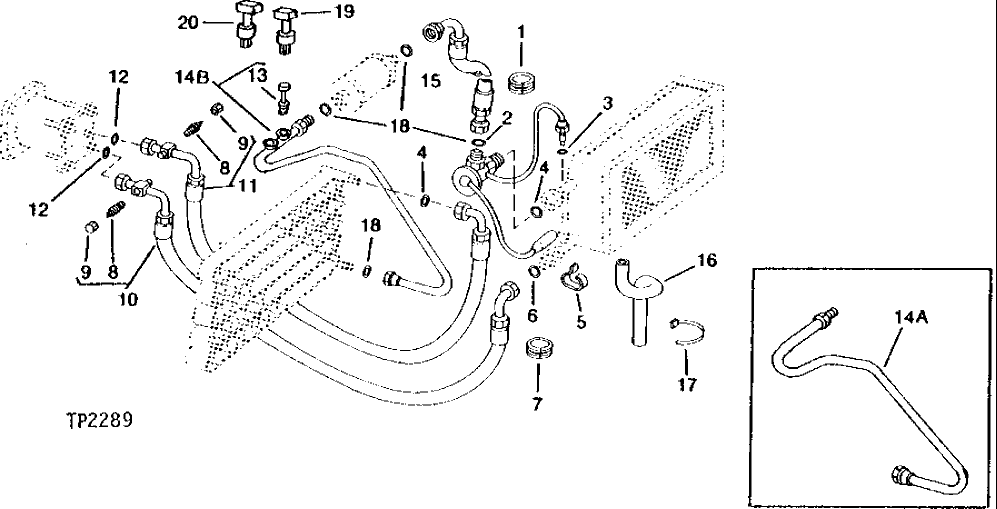

Запчасти John Deere 90B 29 - AIR CONDITIONING REFRIGERANT LINES 75 - CAB

1

T58739

GROMMET

(SUB FOR R38454, THIS APPLICATION)

1шт.

2

AR58482

VALVE

EXPANSION

1шт.

AT62543

THERMOSTATIC CONTROL VALVE

EXPANSION

1шт.

3

R34812

O-RING

1шт.

4

P51212

O-RING

2шт.

5

R66645

CLIP

(SUB FOR R50480)

3шт.

6

R33259

O-RING

(SUB FOR T58398)

1шт.

7

MOLDING

(MAKE FROM T58056) (SUB FOR T46876, THIS APPLICATION)

ARшт.

8

R60170

VALVE

1шт.

9

R60172

NUT

1шт.

10

AT56085

HOSE

1шт.

11

AT56086

HOSE

1шт.

12

R47235

O-RING

2шт.

13

R60170

VALVE

COMPRESSOR SERVICE VALVE

1шт.

14A

AT56084

TUBE

(SUB AT63510)

1шт.

14B

AT63510

TUBE

1шт.

15

AT56083

REFRIGERANT HOSE

1шт.

16

T16946

HOSE

DRAIN

1шт.

17

H77698

TIE BAND

(SUB FOR T44946)

2шт.

18

R10093

O-RING

4шт.

19

AT63265

SWITCH

HIGH PRESSURE

1шт.

20

AT63266

SWITCH

LOW PRESSURE

1шт.

TY15709

TAPE

(SUB FOR R57003) (NOT ILLUSTRATED)

1шт.
