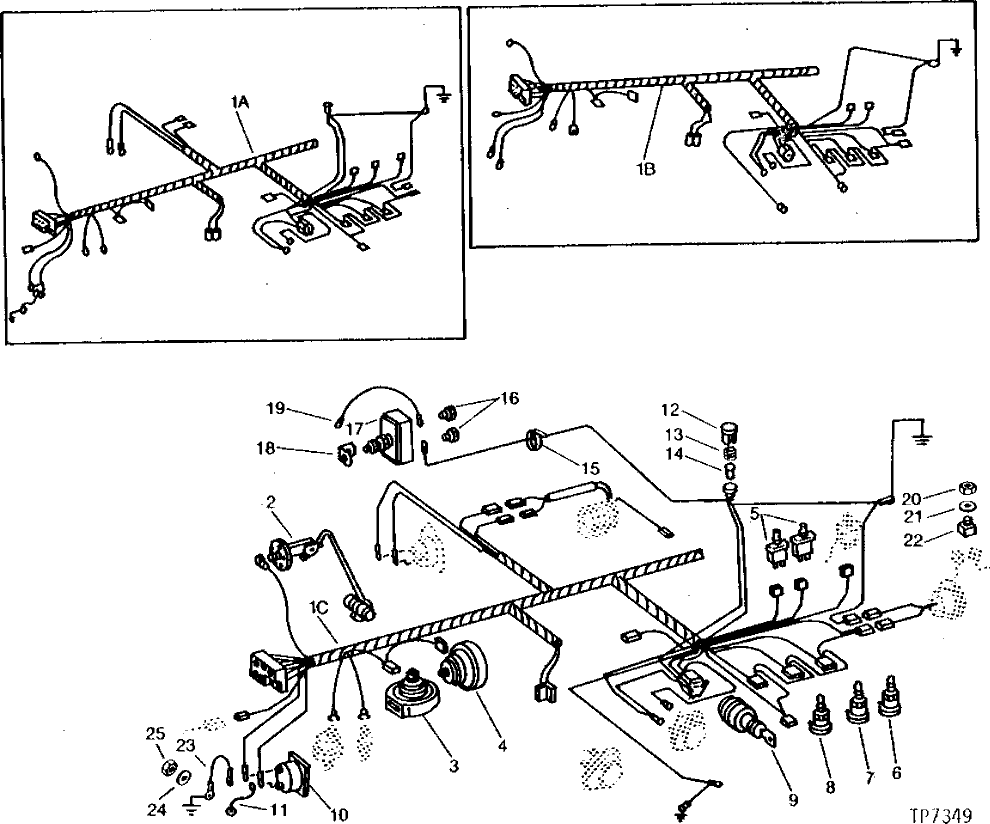

Запчасти John Deere 90B 12 - CAR WIRING HARNESS 80 - INSTRUMENTS, SWITCHES, GAUGES AND WIRING

1A

AT56102

WIRING HARNESS

(SUB AT63505) (WITH AIR CONDITIONING, ALSO ORDER AT63507, AT63508, AT63265, AT63266, AT63510, AT63509, AR73144, T66928 AND T66927)

1шт.

1B

AT63505

WIRING HARNESS

(WITHOUT PILOT CONTROLS)

1шт.

1C

AT66738

WIRING HARNESS

(WITHOUT PILOT CONTROLS)

1шт.

AT68915

WIRING HARNESS

(WITH PILOT CONTROLS)

1шт.

2

AT81470

SENDER

(SUB FOR AT41458)

1шт.

3

AT39043

HIGH NOTE HORN

LOW NOTE, (SUB FOR R11276)

1шт.

4

R64700

HIGH NOTE HORN

HIGH NOTE, (SUB FOR R11277)

1шт.

5

AU41449

TOGGLE/ROCKER SWITCH

AIR CONDITIONING, TRAVEL AND SWING BRAKE

3шт.

6

AR20235

SWITCH

HORN

1шт.

7

AR20235

SWITCH

FLUID STARTING AID

1шт.

8

AR20235

SWITCH

ENGINE STARTER

1шт.

9

AR58126

ROTARY SWITCH

IGNITION, WITH KEYS

1шт.

10

RE38391

STARTER RELAY

(SUB FOR AM53945) (SUB RE38391) STARTER (12 VOLT INTERMITTENT DUTY) ( AT68973 NO LONGER AVAILABLE)

1шт.

RE38391

STARTER RELAY

1шт.

11

AT61018

WIRING LEAD

GROUND

1шт.

12

AT34928

LENS

1шт.

13

R30378

SPRING

1шт.

14

AR50439

LAMP

NO. 257 OR NO. 431

1шт.

15

H77698

TIE BAND

(SUB FOR T44946)

1шт.

16

21H1289

SCREW

0.138" X 3/16" PAN HEAD

2шт.

17

AT34324

SWITCH

FLOW DIVIDER

1шт.

18

T81156

ANGLE

(SUB FOR T35423)

1шт.

19

AU40647

WIRING LEAD

GROUND

1шт.

20

AL58295

KNOB

(SUB FOR AR69370)

1шт.

21

R44165

LOCK NUT

1шт.

22

AH84588

SWITCH

HEATER BLOWER

1шт.

23

AU42892

WIRING LEAD

1шт.

24

24H1283

WASHER

7/32" X 1/2" X 0.049"

1шт.

25

14H631

NUT

0.190"

1шт.
