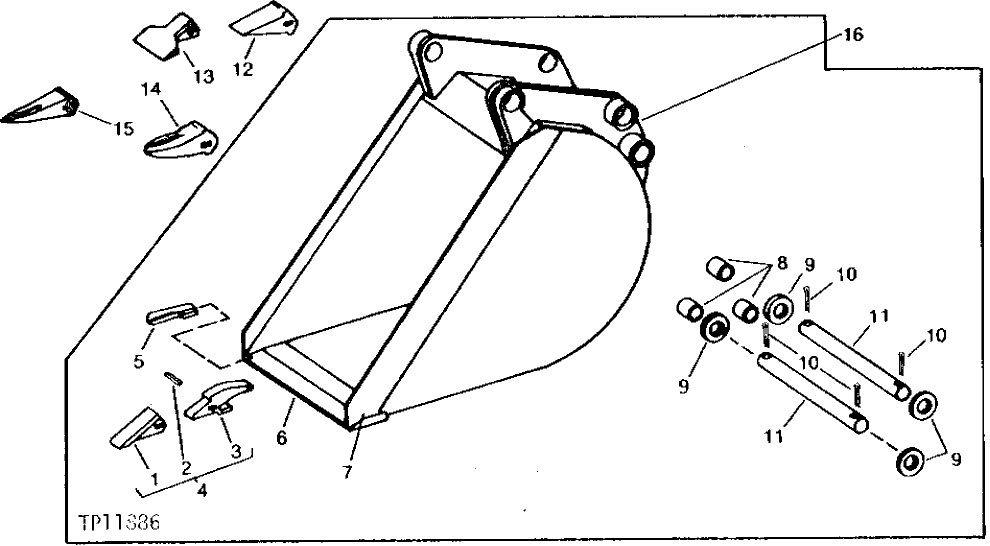

Запчасти John Deere 90C 2 - BUCKETS 3302 - BACKHOE AND EXCAVATOR 33

1

T252

TOOTH

(4 USED WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET) (SUB FOR AT33513)

ARшт.

2

U45574

PIN

(4 USED WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET)

ARшт.

3

T440X252

BUCKET TOOTH ADAPTER

(4 USED WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET) (SUB FOR U45349)

1шт.

4

KIT

(4 USED WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET) ( AT33512 NO LONGER AVAILABLE) (FURNISH COMPONENTS)

ARшт.

5

T34533

CORNER

R.H

1шт.

T34534

CORNER

L.H

1шт.

6

U45371

CUTTING EDGE

(24") BUCKET

1шт.

U45368

CUTTING EDGE

(30") BUCKET

1шт.

U45363

CUTTING EDGE

(36") BUCKET

1шт.

7

U45364

CUTTING EDGE

SIDE, R.H

1шт.

U45365

CUTTING EDGE

SIDE, L.H

1шт.

8

U45351

BUSHING

6шт.

9

U43779

WASHER

ARшт.

10

11H277

COTTER PIN

1/2" X 4"

4шт.

11

U45205

PIN FASTENER

2шт.

12

T252

TOOTH

(4 USED WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET) (SUB FOR T72583)

ARшт.

13

T250F

TOOTH

(4 USED WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET) (SUB FOR AT135911)

ARшт.

14

T252ST

TOOTH

(4 USED WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET) (SUB FOR T72581)

ARшт.

15

T252ST

TOOTH

(4 USED WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET) (SUB FOR T72581 AND T72582)

ARшт.

16

EXCAVATOR BUCKET

610 MM (24") ( AT34745 NO LONGER AVAILABLE)

1шт.

EXCAVATOR BUCKET

762 MM (30") ( AT34746 NO LONGER AVAILABLE)

1шт.

EXCAVATOR BUCKET

914 MM (36") ( AT34747 NO LONGER AVAILABLE)

1шт.
