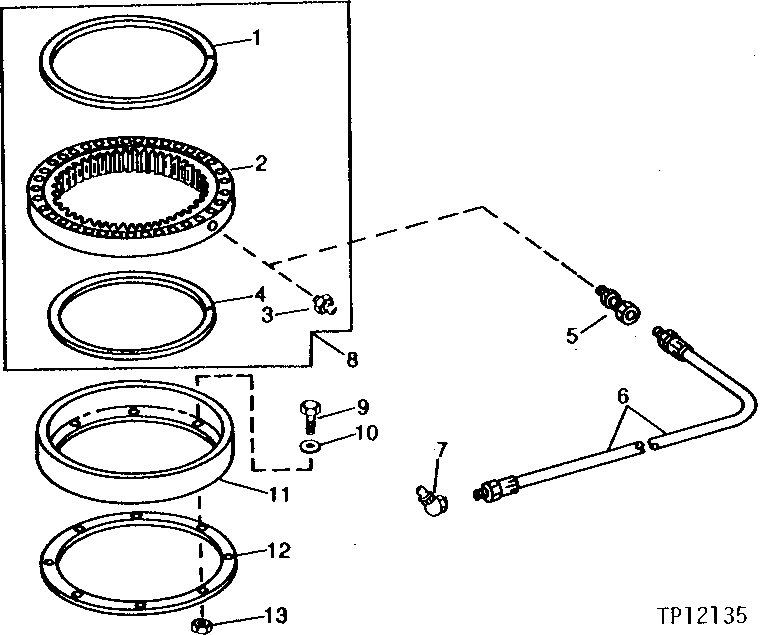

Запчасти John Deere 90C 1 - SWING BEARING AND LUBRICATION LINE 4350 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

T61191

SEAL

(SUB FOR AT58761) (ALSO ORDER AT63519)

1шт.

2

BEARING

(SUB AT79378)

1шт.

3

JD7759

LUBRICATION FITTING

3шт.

4

T61192

SEAL

(SUB FOR AT58762) (ALSO ORDER AT63519)

1шт.

5

E12378

ELBOW FITTING

(SUB FOR T18794)

1шт.

E12379

NUT

1шт.

6

H111472

HOSE

1/8" X 1 600 MM (63") X 1/8", (SUB FOR H98306)

1шт.

7

JD7820

LUBRICATION FITTING

1шт.

8

AT80780

SWING BEARING

(SUB FOR AT79378)

1шт.

9

19H1726

CAP SCREW

3/8" X 2-1/4", (SUB FOR 19H1819, THIS APPLICATION)

8шт.

10

24H1864

WASHER

13/32" X 3/4" X 7/64"

8шт.

11

T42345

RING

1шт.

12

T42346

GASKET

1шт.

13

14H812

NUT

3/8"

8шт.
