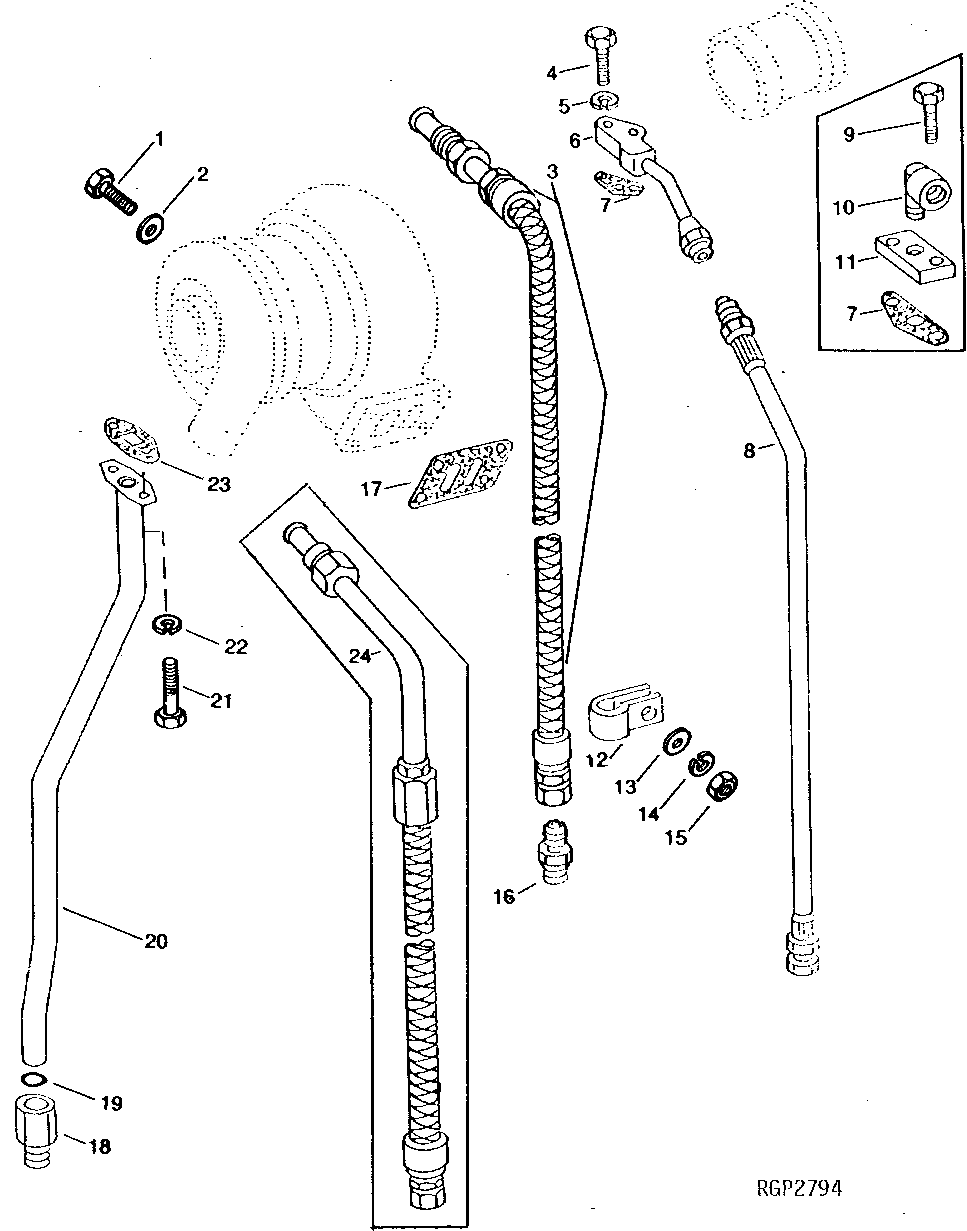

Запчасти John Deere 90CR 4 - TURBOCHARGER OIL LINES 416 - ENGINE 4

1

R54500

SCREW

4шт.

2

24H1305

WASHER

13/32" X 13/16" X 0.065"

4шт.

3

RE20231

HOSE

1шт.

4

19H3552

CAP SCREW

5/16" X 1-1/2"

2шт.

5

12H303

LOCK WASHER

5/16"

2шт.

6

AR61590

OIL LINE

(SUB RE20231) (ALSO ORDER R79723, R43413, (2) 19H2705 AND T11180)

1шт.

7

R43413

GASKET

1шт.

8

AR76424

HYDRAULIC HOSE

(SUB RE20231) (ALSO ORDER R79723, R43413, (2) 19H1905 AND T11180)

1шт.

9

19H1905

CAP SCREW

5/16" X 1"

2шт.

10

T11180

ELBOW FITTING

1шт.

11

R79723

STRAP

1шт.

12

AH80916

CLIP

1шт.

13

24H753

WASHER

9/32" X 5/8" X 0.049"

1шт.

14

12H297

LOCK WASHER

1/4"

1шт.

15

14H786

NUT

1/4"

1шт.

16

R62239

FITTING

1шт.

17

R43751

GASKET

1шт.

18

R41285

ADAPTER FITTING

1шт.

19

R72328

O-RING

(SUB FOR R43780)

1шт.

20

AR73815

OIL LINE

1шт.

21

19H2284

CAP SCREW

3/8" X 7/8"

2шт.

22

12H304

LOCK WASHER

3/8"

2шт.

23

R43416

GASKET

1шт.

24

RE20230

OIL LINE

(SUB RE20231, THIS APPLICATION)

1шт.
