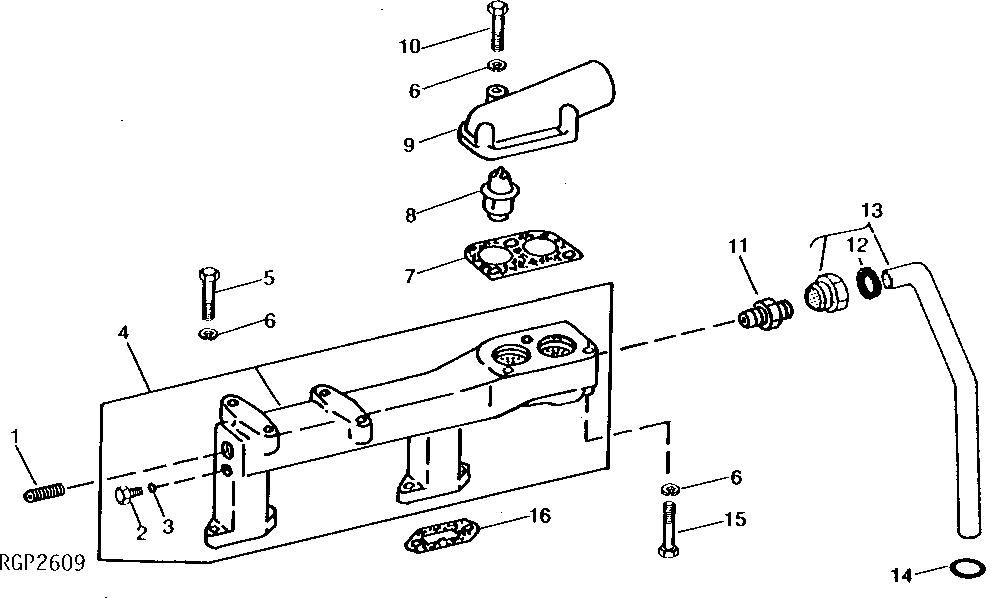

Запчасти John Deere 90CR 1 - WATER OUTLET MANIFOLD AND THERMOSTATS 418 - ENGINE 4

1

15H665

PIPE PLUG

3/4"

1шт.

2

R82719

FITTING PLUG

(SUB FOR R27094, THIS APPLICATION)

1шт.

3

R77673

O-RING

1шт.

4

RE12848

MANIFOLD

(MARKED R78123 OR R50415)

1шт.

5

19H3385

CAP SCREW

1/2" X 1-1/8"

4шт.

6

12H304

LOCK WASHER

3/8"

7шт.

7

R46479

GASKET

1шт.

8

AR48675

THERMOSTAT

82°C (180°F)

2шт.

9

R58721

COVER

1шт.

10

19H3031

CAP SCREW

3/8" X 2-1/2"

1шт.

11

R76560

COUPLING

1шт.

12

R76558

SLEEVE

1шт.

13

AR103815

OIL LINE

1шт.

14

R47153

O-RING

1шт.

15

19H2458

CAP SCREW

3/8" X 3"

2шт.

16

R42693

GASKET

2шт.
