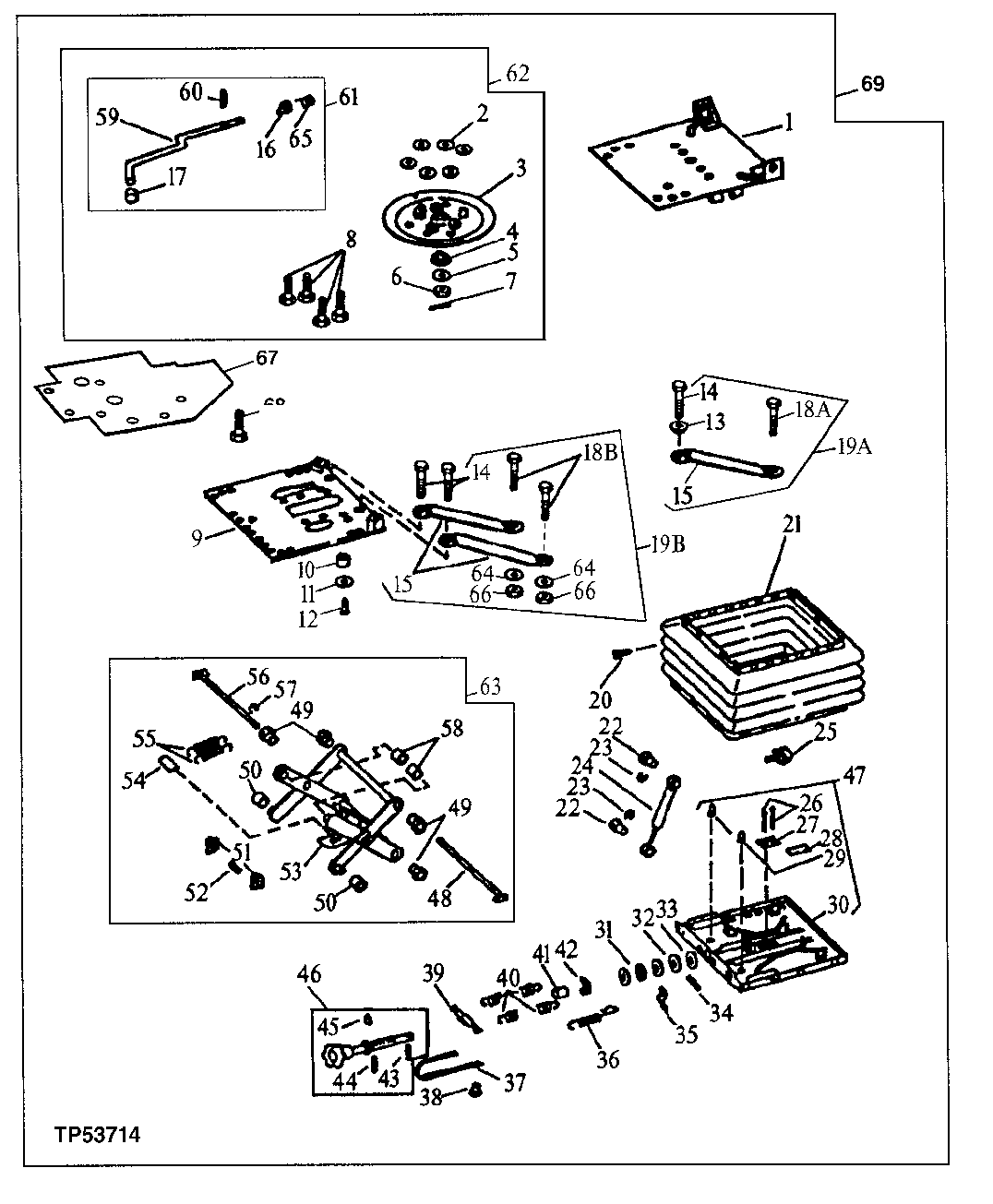

Запчасти John Deere 90CR 9A - SEAT SUSPENSION BASE WITH TURNTABLE 1821 - OPERATORS STATION 18

40

T82227

EXTENSION SPRING

2шт.

41

L42038

BUSHING

(SUB FOR T82226)

1шт.

42

L38861

NUT

(SUB FOR T82225)

1шт.

43

34M7129

SPRING PIN

3 X 16 MM

1шт.

44

34M7130

SPRING PIN

4 X 20 MM

1шт.

45

40M7051

SNAP RING

1шт.

46

AL38524

ADJUSTER

(SUB FOR AT84223)

1шт.

47

AT84218

PLATE

1шт.

48

AT84228

PIN FASTENER

1шт.

49

L42041

BEARING

(SUB FOR T82235)

4шт.

50

L42042

ROLLER

(SUB FOR T82238)

2шт.

51

L38852

PLATE

(SUB FOR T82239)

2шт.

52

L38862

BAR

(SUB FOR T82240)

1шт.

53

AL64580

ARM

(SUB FOR AT84227)

1шт.

54

L38853

PLATE

(SUB FOR T82237)

1шт.

55

L38854

SPRING

2шт.

56

AT84226

PIN FASTENER

1шт.

57

40M7030

SNAP RING

1шт.

58

L38855

ROLLER

(SUB FOR T112201)

2шт.

59

T141397

ROD

(SUB FOR T82216)

1шт.

60

34M7094

SPRING PIN

4 X 16 MM

1шт.

61

AT84214

LEVER

(NO LONGER AVAILABLE)

1шт.

62

AT107542

BASE

(SUB FOR AT84213)

1шт.

63

AT84225

ROCKER

1шт.

64

12H293

LOCK WASHER

7/16"

2шт.

65

T82219

EXTENSION SPRING

1шт.

66

14H807

NUT

7/16"

2шт.

67

T146639

PLATE

1шт.

68

T146652

SCREW

4шт.

69

AT169499

BASE

(SUB FOR AT84217 AND AT78488)

1шт.
