2 - AIR CONDITIONER WIRING HARNESS

Запчасти John Deere 90CR 2 - AIR CONDITIONER WIRING HARNESS 1830 - OPERATORS STATION 18

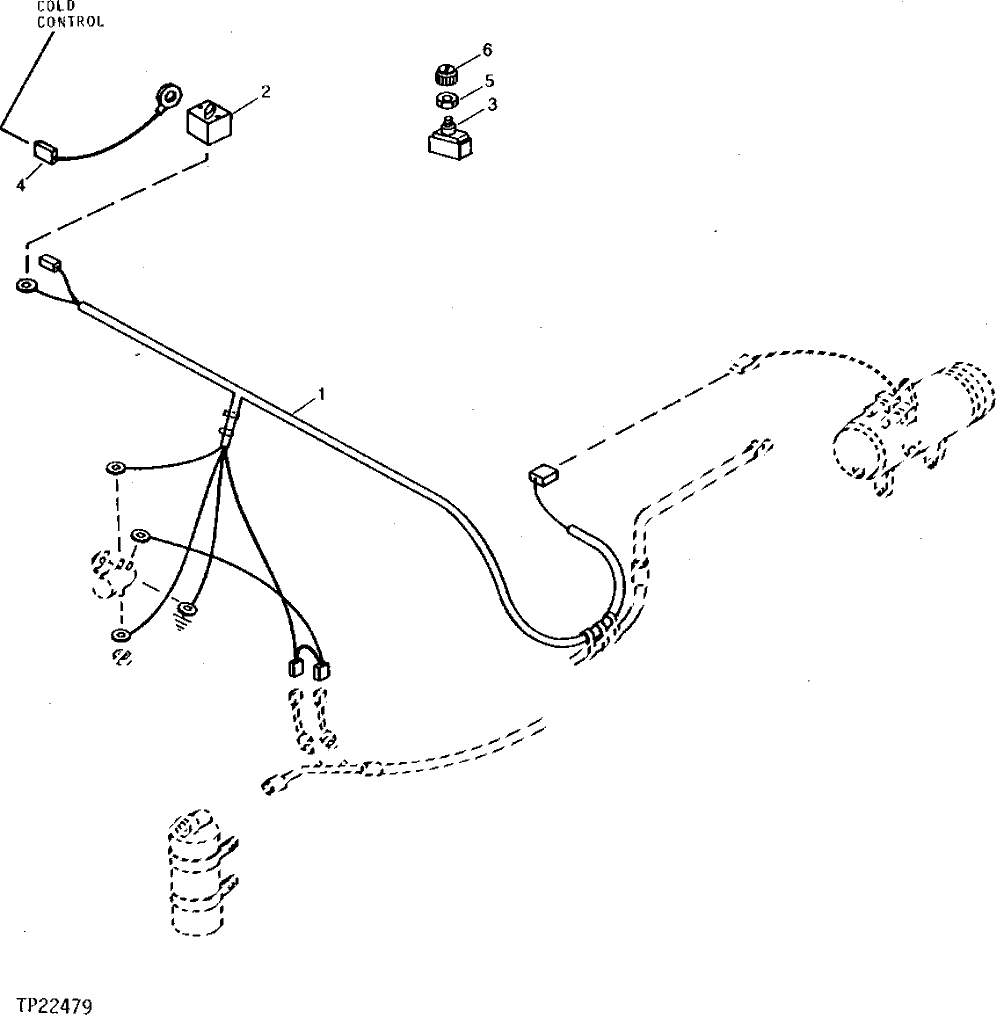

Схема запчастей John Deere 90CR - 2 - AIR CONDITIONER WIRING HARNESS 1830 - OPERATORS STATION 18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AT79350

WIRING HARNESS

1шт.

R44302

TIE BAND

HARNESS TO COMPRESSOR INLET HOSE

3шт.

T74416

CLAMP

AIR CONDITIONED HARNESS AND VEHICLE HARNESS TO BATTERY BOX

1шт.

2

4173490

SWITCH

(SUB FOR AT82707) BLOWER

1шт.

3

AT61602

SWITCH

THERMAL

1шт.

4

AT65347

WIRING LEAD

1шт.

5

E46066

NUT

1шт.

6

AL58295

KNOB

(SUB FOR AR69370)

1шт.
