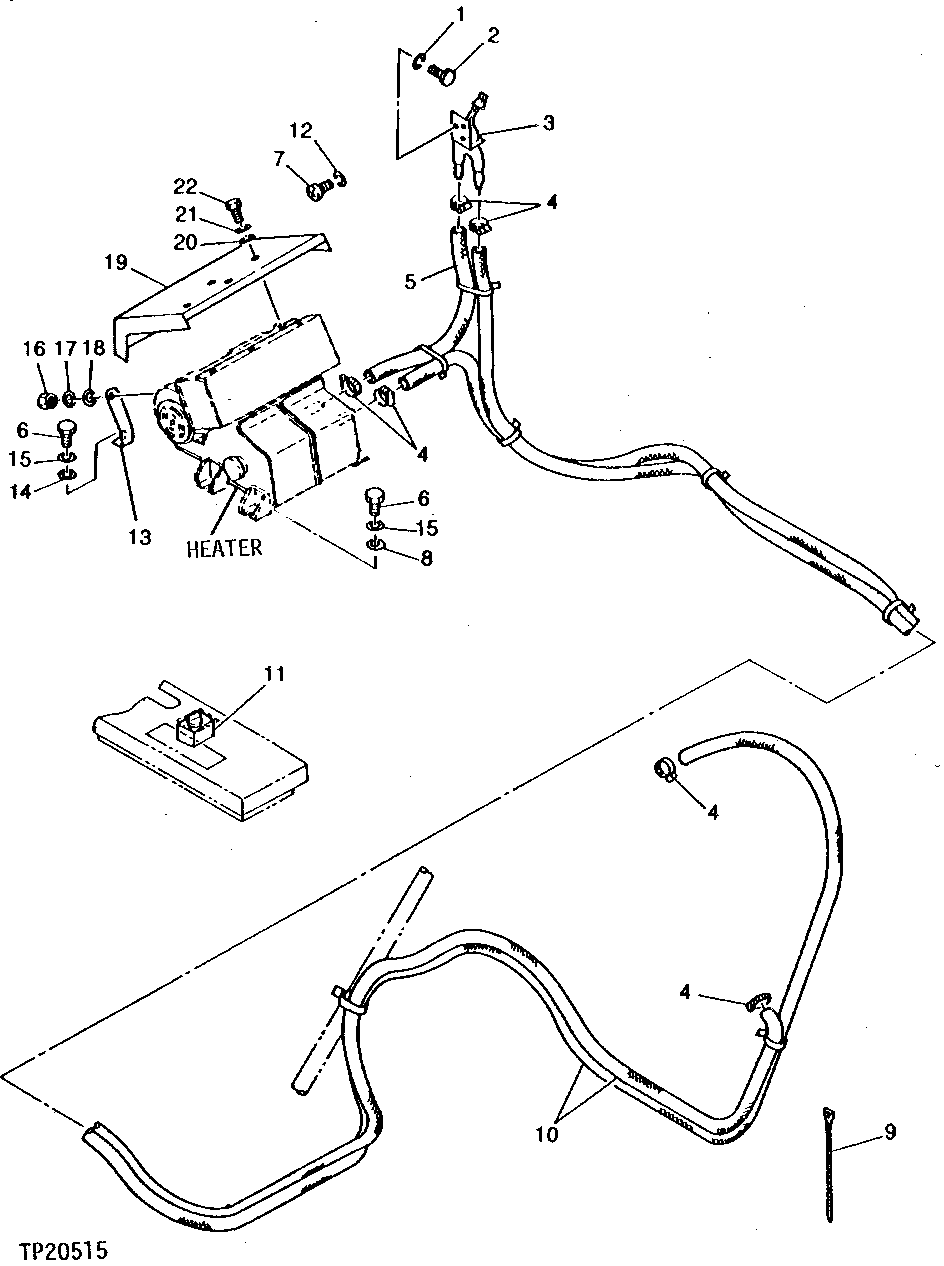

Запчасти John Deere 90CR 4 - CAB HEATER HOSES AND CONTROL VALVE 1830 - OPERATORS STATION 18

1

12M7064

LOCK WASHER

5 MM

3шт.

2

21M7278

SCREW

M5 X 10

3шт.

3

4115856

VALVE

(SUB FOR TH101085)

1шт.

4

AR21837

CLAMP

6шт.

5

HOSE

(MAKE FROM TY22328 BULK MATERIAL, CUT TO LENGTH)

1шт.

6

19M7938

CAP SCREW

M10 X 20

5шт.

7

21M7278

SCREW

3шт.

8

24M7028

WASHER

10.500 X 20 X 2 MM

7шт.

9

H77698

TIE BAND

10шт.

H77698

TIE BAND

(SUB FOR M88199)

5шт.

10

HOSE

(MAKE FROM TY22328 BULK MATERIAL, CUT TO LENGTH)

2шт.

11

4173490

SWITCH

(SUB FOR AT82707)

1шт.

12

12M7064

LOCK WASHER

5 MM

3шт.

13

4080636

BRACKET

(SUB FOR TH101086)

1шт.

14

24M7028

WASHER

10.500 X 20 X 2 MM

1шт.

15

12M7066

LOCK WASHER

10 MM

7шт.

16

14M7273

NUT

M8

1шт.

17

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

1шт.

18

24M7055

WASHER

8.400 X 16 X 1.600 MM

1шт.

19

7009413

COVER

(SUB FOR TH101092)

1шт.

20

24M7054

WASHER

6.400 X 12 X 1.600 MM

4шт.

21

12M7006

LOCK WASHER

6 MM

4шт.

22

19M7286

CAP SCREW

4шт.
