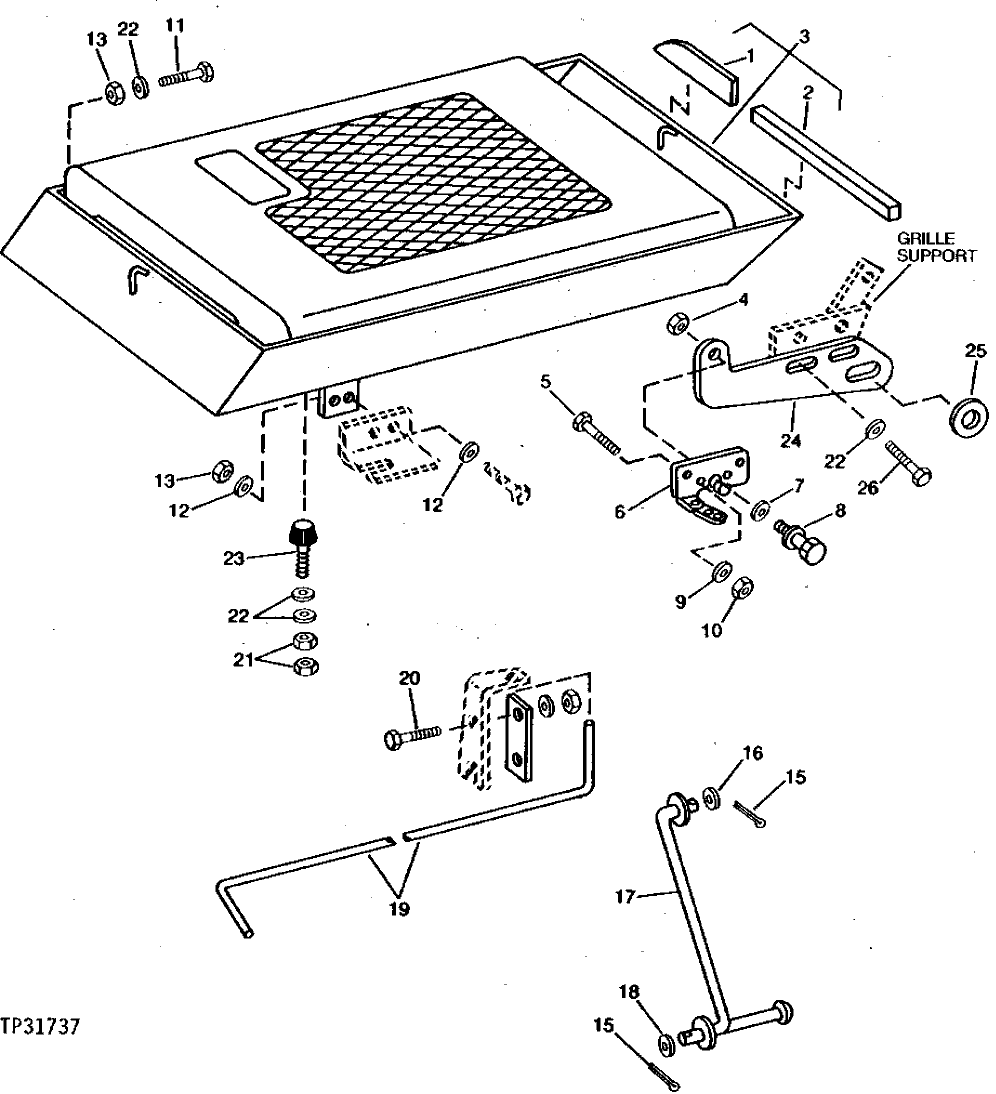

Запчасти John Deere 90CR 2 - HOOD AND HOOD SUPPORTS 1910 - SHEET METAL AND STYLING 19

1

T79413

ISOLATOR

1шт.

2

T80171

ISOLATOR

1шт.

3

AT84253

HOOD

1шт.

4

14H1047

NUT

7/16"

1шт.

5

19M7874

CAP SCREW

M6 X 30

4шт.

6

AT80712

LATCH

1шт.

7

24M7034

WASHER

17 X 50 X 3 MM

1шт.

8

AT59896

STRIKER

1шт.

9

12H302

LOCK WASHER

1/4"

4шт.

10

14M7272

NUT

M6

4шт.

11

19M7662

CAP SCREW

M10 X 30

4шт.

A15147

SPRING LOCKING PIN

FRONT HOOD HINGE PIN, HOOD ROD TO MAIN FRAME

1шт.

12

24M7296

WASHER

10.500 X 30 X 2.500 MM

8шт.

13

14M7274

NUT

M10

6шт.

14

N163737

STRAP

1шт.

15

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR 11M7023)

2шт.

16

24M1589

WASHER

17 X 30 X 3 MM

1шт.

17

AT78556

ROD

1шт.

18

24H1893

WASHER

25/32" X 3-7/8" X 0.194"

1шт.

19

T78915

TORSION SPRING

1шт.

20

19M7402

CAP SCREW

M10 X 25

1шт.

21

14M7273

NUT

M8

3шт.

22

24M7296

WASHER

10.500 X 30 X 2.500 MM

24шт.

23

AT59634

BUMPER

3шт.

24

T126957

STRAP

1шт.

25

24H1098

WASHER

21/32" X 3" X 3/8"

1шт.

26

19M8162

SCREW

M10 X 40

1шт.
