10 - HYDRAULIC PUMP INLET HOSE TO RESERVOIR

Запчасти John Deere 90CR 10 - HYDRAULIC PUMP INLET HOSE TO RESERVOIR 2160 - MAIN HYDRAULIC SYSTEM 21

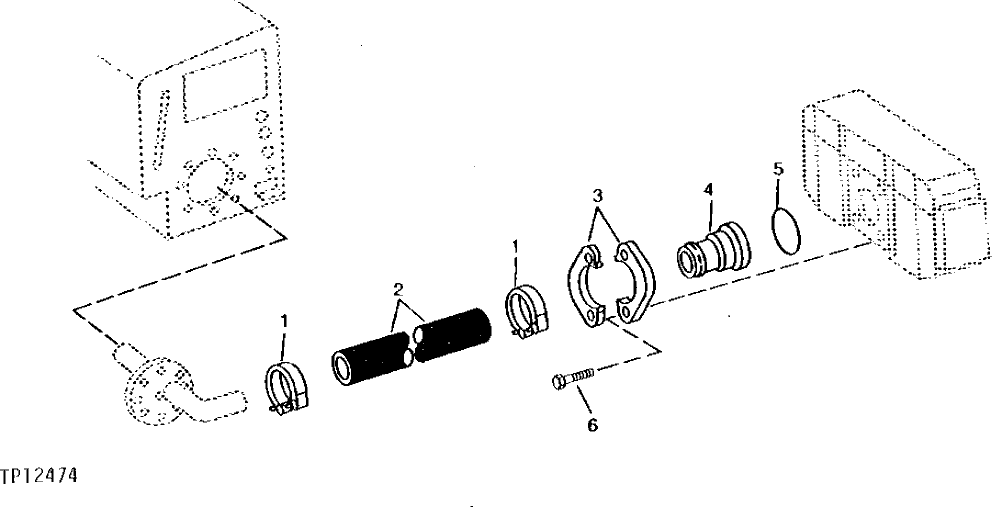

Схема запчастей John Deere 90CR - 10 - HYDRAULIC PUMP INLET HOSE TO RESERVOIR 2160 - MAIN HYDRAULIC SYSTEM 21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AT39141

HOSE CLAMP

2шт.

2

T80021

HYDRAULIC HOSE

63.5MM (2.5 IN) ID X 559.0MM (22.0 IN) LG

1шт.

3

X51H-40

FLANGE FITTING

(SUB FOR U44384)

2шт.

4

T78953

THREADED NIPPLE

1шт.

5

R86192

O-RING

(SUB FOR U12331)

1шт.

6

19H2993

CAP SCREW

1/2" X 1-1/2"

4шт.
