1 - CONTROL VALVE TO RETURN FILTER HOSES AND FITTINGS

Запчасти John Deere 90CR 1 - CONTROL VALVE TO RETURN FILTER HOSES AND FITTINGS 3360 - BACKHOE AND EXCAVATOR 33

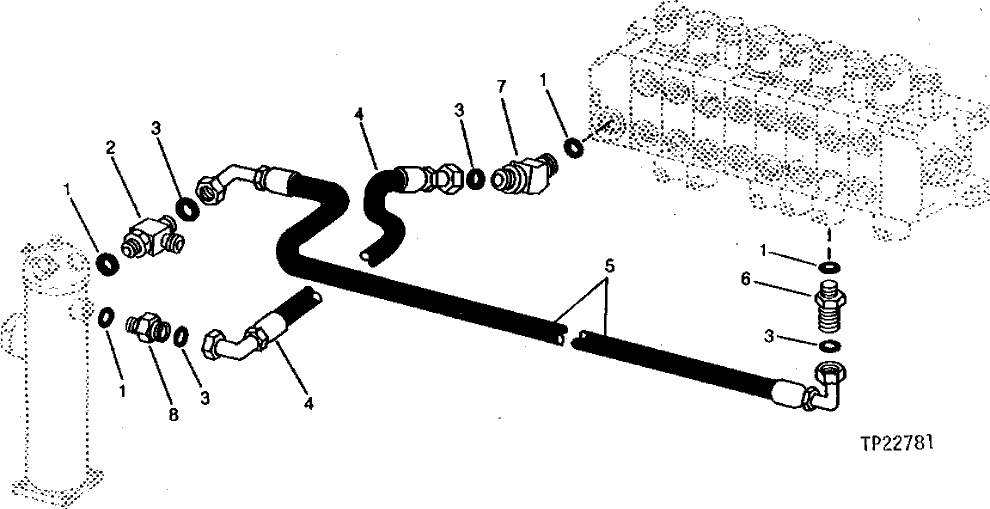

Схема запчастей John Deere 90CR - 1 - CONTROL VALVE TO RETURN FILTER HOSES AND FITTINGS 3360 - BACKHOE AND EXCAVATOR 33
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R47156

O-RING

4шт.

2

38H1028

TEE FITTING

1шт.

3

T78612

O-RING

(SUB FOR AT250019)

4шт.

4

AT78062

HYDRAULIC HOSE - FABRICATE

1шт.

5

AT79335

HYDRAULIC HOSE

1-11/16" X 1 016 MM (40") X 1-11/16"

1шт.

6

38H1217

ADAPTER FITTING

1шт.

7

38H1050

ELBOW FITTING

1шт.

8

38H1165

ADAPTER FITTING

1шт.

Выбрано товаров: 0
