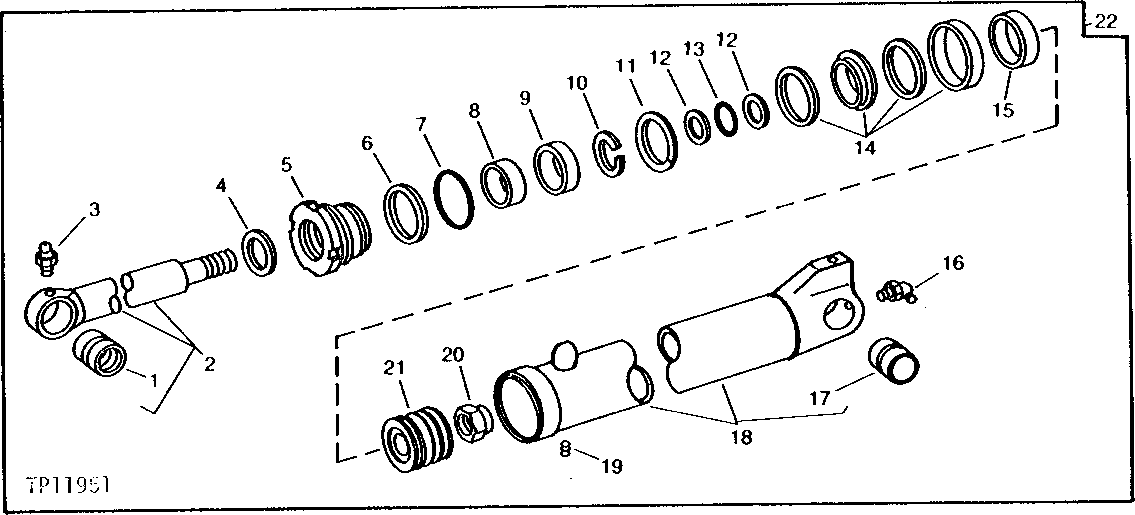

Запчасти John Deere 90CR 17 - BUCKET CYLINDER 3360 - BACKHOE AND EXCAVATOR 33

1

U46436

BUSHING

1шт.

2

RE21402

HYDRAULIC CYLINDER ROD

1шт.

3

JD7759

LUBRICATION FITTING

1шт.

4

RE21404

SEAL

(RK)

1шт.

5

R82413

GUIDE

1шт.

6

R78818

BACK-UP RING

(BK)

1шт.

7

T38485

O-RING

(BK)

1шт.

8

R82414

WEAR RING

(RK)

1шт.

9

RE21405

SEAL

(RK)

1шт.

10

RE21403

SEAL

(RK)

1шт.

11

U46616

PISTON RING

1шт.

12

R78393

BACK-UP RING

(RK)

2шт.

13

P50631

O-RING

(RK)

1шт.

14

RE11920

SEAL

(BK)

1шт.

15

U45180

WEAR RING

(BK)

1шт.

16

JD7781

LUBRICATION FITTING

1шт.

17

U45831

BUSHING

1шт.

18

RE19065

HYDRAULIC CYLINDER BARREL

1шт.

19

22H1077

SET SCREW

1/4" X 5/16"

1шт.

20

U43399

LOCK NUT

1шт.

21

R81108

PISTON

1шт.

22

RE21400

HYDRAULIC CYLINDER

1шт.
