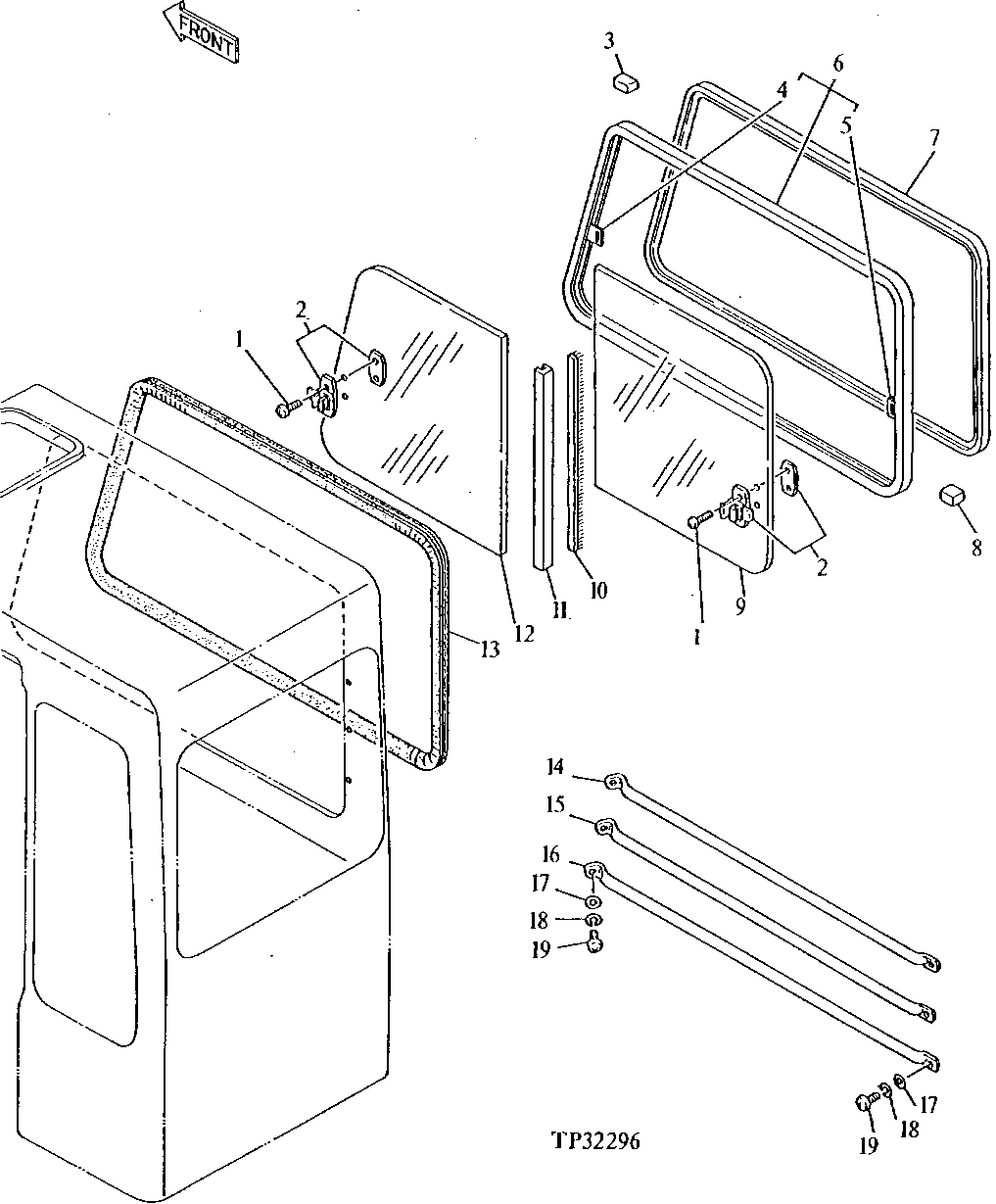

Запчасти John Deere 90D 10 - CAB RIGHT, UPPER WINDOW AND GUARDS 1810 - OPERATORS STATION 18

1

37M7100

SCREW

4шт.

2

4369653

LOCK

(SUB FOR TH106626, 4295610 AND 4141713)

2шт.

3

4204567

SPACER

(SUB FOR TH108647)

3шт.

4

RUNNER

(SUB TH108731)

1шт.

5

LOCK

(SUB TH108731)

1шт.

6

4208949

FRAME

(SUB FOR TH108731)

1шт.

7

4204635

RUNNER

(SUB FOR TH108733)

1шт.

8

4147896

SPACER

(SUB FOR TH108646)

9шт.

9

TH108735

WINDOWPANE

1шт.

10

4231414

WEATHERSTRIP

(SUB FOR TH108737) (SUB FOR TH111881)

1шт.

11

4204638

FRAME

(SUB FOR TH108736)

1шт.

12

TH108734

WINDOWPANE

1шт.

13

4204585

MOLDING

(SUB FOR TH108667)

1шт.

14

4204568

GUARD

(SUB FOR TH108650)

1шт.

15

4204569

GUARD

(SUB FOR TH108651)

1шт.

16

4204570

GUARD

(SUB FOR TH108652)

1шт.

17

24M7055

WASHER

8.400 X 16 X 1.600 MM

6шт.

18

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

6шт.

19

21M7291

SCREW

M8 X 20

6шт.
