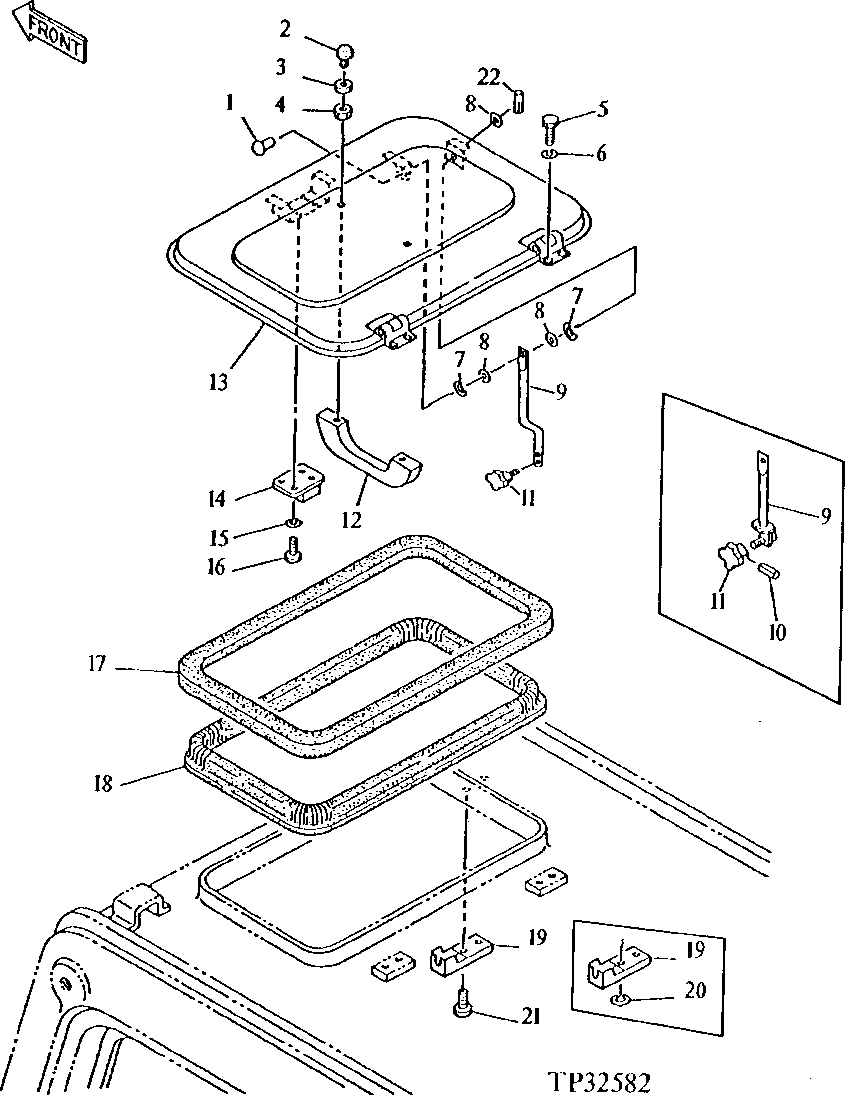

Запчасти John Deere 90D 16 - CAB ROOF DOOR 1810 - OPERATORS STATION 18

1

16M2507

RIVET

1шт.

4239991

RIVET

(SUB FOR AT130879)

1шт.

2

4204580

BUMPER

(SUB FOR TH108662)

2шт.

3

4204581

WASHER

(SUB FOR TH108663)

2шт.

4

14M7297

NUT

M5

2шт.

5

19M7865

SCREW

M8 X 16

4шт.

6

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

7

12M7075

WASHER

5.300 X 11 X 0.500 MM

2шт.

4239992

WASHER

(SUB FOR AT130880)

2шт.

8

24M7027

WASHER

5.300 X 10 X 1 MM

2шт.

24M7054

WASHER

6.400 X 12 X 1.600 MM

3шт.

9

4208942

SUPPORT

(SUB FOR TH108696)

1шт.

4341195

SUPPORT

(SUB FOR AT130878)

1шт.

10

34M7137

SPRING PIN

3 X 18 MM

1шт.

11

4208945

KNOB

(SUB FOR TH108699)

1шт.

4289287

KNOB

(SUB FOR AT130881)

1шт.

12

4204579

HANDLE

(SUB FOR TH108661)

1шт.

13

4208935

COVER

(SUB FOR TH108659)

1шт.

4239988

COVER

(SUB FOR AT130875)

1шт.

14

4204578

LOCK

(SUB FOR TH108660)

1шт.

15

12M7064

LOCK WASHER

5 MM

4шт.

16

21M7265

SCREW

M5 X 12

4шт.

17

4204583

ISOLATOR

(SUB FOR TH108664)

1шт.

18

4204582

SUPPORT

(SUB FOR TH108665)

1шт.

19

4208941

BRACKET

(SUB FOR TH108695)

1шт.

4239989

BRACKET

(SUB FOR AT130876)

1шт.

20

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

21

21M7361

SCREW

M8 X 12

2шт.

12M7056

LOCK WASHER

(SUB FOR AT130877) (ALSO ORDER 21M7192)

2шт.

22

M800051

PIN

(SUB FOR TH106585) (SUB FOR CH10542)

1шт.
