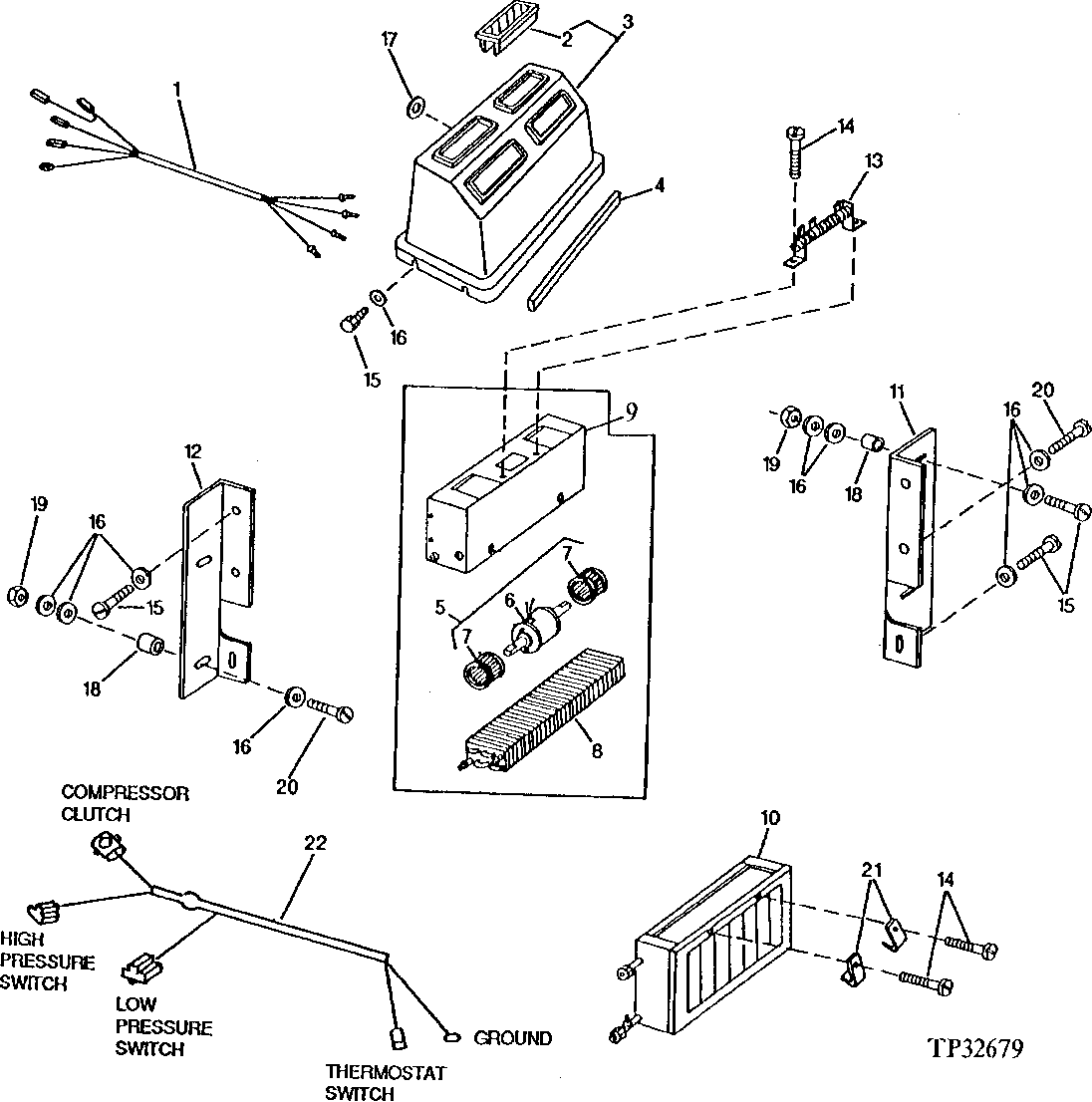

Запчасти John Deere 90D 10 - HEATER AND AIR CONDITIONING ASSEMBLY 1830 - OPERATORS STATION 18

1

AT112079

WIRING HARNESS

1шт.

R44302

TIE BAND

(WIRES UNDER PLENUM COVER)

1шт.

T19935

CLAMP

2шт.

2

AT130121

LOUVER

(SUB FOR AT81207)

4шт.

3

AT132891

COVER

(SUB FOR AT81206 AND AT130120)

1шт.

4

WEATHERSTRIP

(MAKE FROM T70636 BULK MATERIAL, CUT TO LENGTH)

1шт.

5

AT80368

BLOWER

1шт.

6

AT80369

ELECTRIC MOTOR

1шт.

7

AT66343

BLOWER FAN

1шт.

8

AT56095

CORE

1шт.

9

HEATER

( AT80367 NO LONGER AVAILABLE)

1шт.

10

EVAPORATOR

( AT56094 NLA)

1шт.

11

T80640

BRACKET

(USE IF AVAILABLE)

1шт.

12

T80639

BRACKET

(USE IF AVAILABLE)

1шт.

13

AT56762

RESISTOR

1шт.

14

37H43

SCREW

4шт.

15

37H84

SCREW

10шт.

16

24H1821

WASHER

9/32" X 47/64" X 1/16"

30шт.

17

B30667

GROMMET

1шт.

18

28H1495

SPACER

0.493" X 0.675" X 1", (BETWEEN BRACKETS AND CAB WALL)

4шт.

19

14M7165

LOCK NUT

M6

4шт.

20

19M8321

SCREW

M6 X 45

4шт.

21

T59954

CLIP

(EVAPORATOR TO HEATER)

2шт.

22

AT112080

WIRING HARNESS

1шт.
