16 - HEATER BLOWER RESISTOR

Запчасти John Deere 90D 16 - HEATER BLOWER RESISTOR 1830 - OPERATORS STATION 18

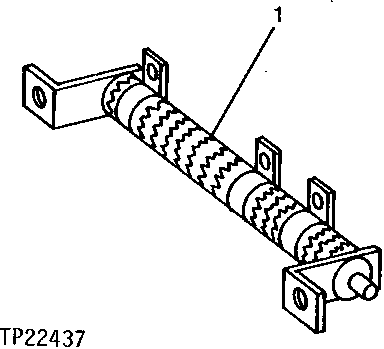

Схема запчастей John Deere 90D - 16 - HEATER BLOWER RESISTOR 1830 - OPERATORS STATION 18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AT56762

RESISTOR

INSIDE RIGHT CONSOLE

1шт.

37H20

SCREW

RESISTOR TO BRACKET (NOT ILLUSTRATED)

2шт.

24H1721

WASHER

13/64" X 15/32" X 0.049", SCREWS TO RESISTOR (NOT ILLUSTRATED)

2шт.
