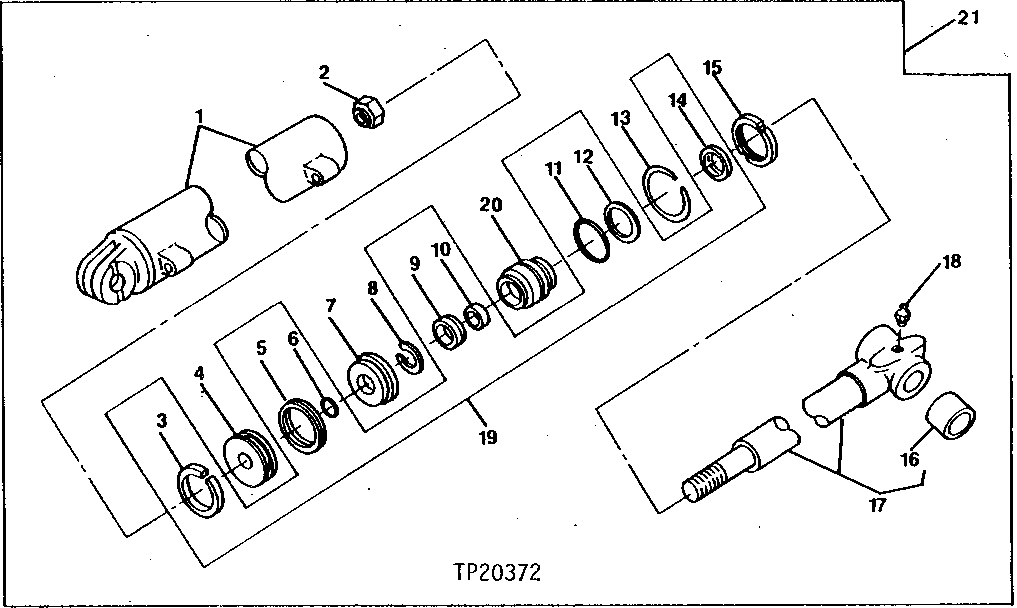

Запчасти John Deere 90D 2 - LIFT, TILT AND ANGLING CYLINDERS 3260 - BULLDOZERS 32

1

AU13860

HYDRAULIC CYLINDER BARREL

ANGLING AND LIFT CYLINDER

1шт.

AU13846

HYDRAULIC CYLINDER BARREL

TILT CYLINDER

1шт.

2

U13572

LOCK NUT

1шт.

3

U17217

WEAR RING

1шт.

4

U17349

PISTON

1шт.

5

T38193

PACKING

1шт.

6

A3606R

O-RING

1шт.

7

U17345

PISTON

1шт.

8

N51168

SNAP RING

1шт.

9

R76804

SEAL

1шт.

10

U41825

WEAR RING

1шт.

11

U10776

O-RING

1шт.

12

U10777

BACK-UP RING

1шт.

13

U10775

SNAP RING

1шт.

14

U10296

SEAL

1шт.

15

U10769

NUT

1шт.

16

U15925

BUSHING

TILT CYLINDER

2шт.

U13064

BUSHING

ANGLING AND LIFT CYLINDER

2шт.

17

AU13844

HYDRAULIC CYLINDER ROD

TILT CYLINDER

1шт.

AU13858

HYDRAULIC CYLINDER ROD

ANGLING AND LIFT CYLINDER

1шт.

18

JD7759

LUBRICATION FITTING

TILT CYLINDER

1шт.

JD7781

LUBRICATION FITTING

ANGLING AND LIFT CYLINDER

1шт.

19

AR105432

HYDRAULIC CYLINDER KIT

1шт.

20

U42078

HYDR. CYLINDER ROD GUIDE

1шт.

21

AU13861

HYDRAULIC CYLINDER

ANGLING AND LIFT CYLINDER

1шт.

AU13847

HYDRAULIC CYLINDER

TILT CYLINDER

1шт.
