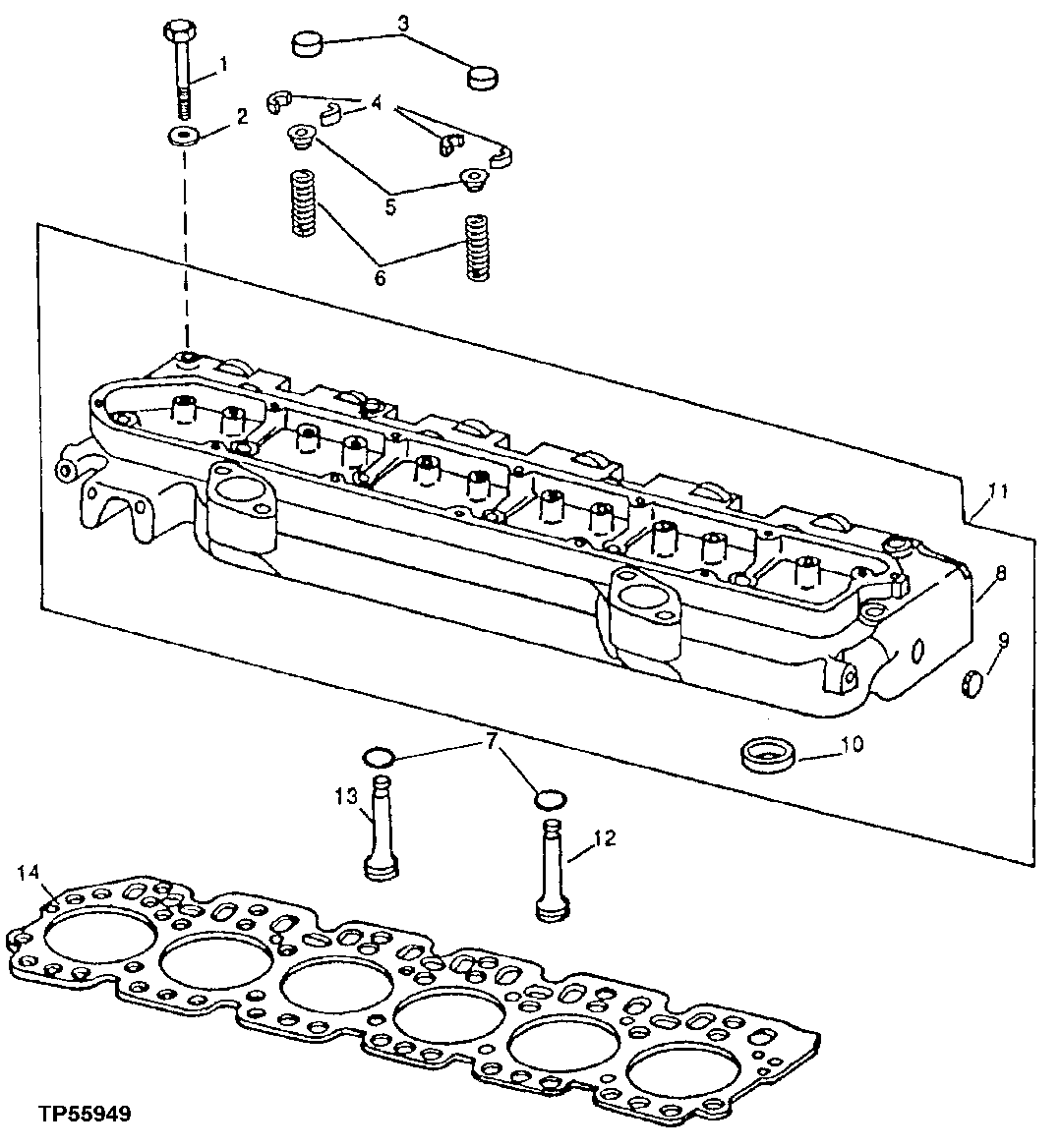

Запчасти John Deere 90D 2 - CYLINDER HEAD HEAD GASKET AND VALVES 409 - ENGINE 4

1

R85363

CAP SCREW

(SUB FOR R78558)

26шт.

2

T20168

WASHER

(DO NOT USE WITH R85363)

26шт.

3

T20129

CAP

12шт.

4

T20077

RETAINER

24шт.

5

RE11410

ROTATOR

12шт.

6

R26125

SPRING

12шт.

7

R87627

O-RING

ARшт.

8

CYLINDER HEAD

(SUB RE56544)

1шт.

9

CD16284

PLUG

(32.5 MM) (SUB FOR A3910R, 1.0")

ARшт.

10

R73064

VALVE SEAT INSERT

INTAKE

6шт.

R73065

INSERT

EXHAUST

6шт.

11

AR96841

HYDRAULIC HEAD AND ROTOR

(MARKED R61035) (SUB RE56544)

1шт.

12

R89226

EXHAUST VALVE

STANDARD STEM, (SUB FOR R73063) (ALSO ORDER R87627)

6шт.

R89227

EXHAUST VALVE

0.08 MM (.003") OVERSIZE STEM, (SUB FOR R76539) (ALSO ORDER R87627)

6шт.

R89228

EXHAUST VALVE

0.38 MM (.015:) OVERSIZE STEM, (SUB FOR R76541) (ALSO ORDER R87627)

6шт.

R89229

EXHAUST VALVE

0.76 MM (.030") OVERSIZE STEM, (SUB FOR R76543) (ALSO ORDER R87627)

6шт.

13

R83071

INTAKE VALVE

STANDARD STEM

6шт.

R89223

INTAKE VALVE

0.08 MM (.003") OVERSIZE STEM, (SUB FOR R88174) (ALSO ORDER R87627)

6шт.

R89224

INTAKE VALVE

0.38 MM (.015") OVERSIZE STEM, (SUB FOR R88175) (ALSO ORDER R87627)

6шт.

INTAKE VALVE

( R89225 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE STEM, (SUB FOR R88176) (ALSO ORDER R87627)

6шт.

14

R114157

ENGINE CYLINDER HEAD GASKET

(SUB FOR R80244, R91880 OR R92426)

1шт.
