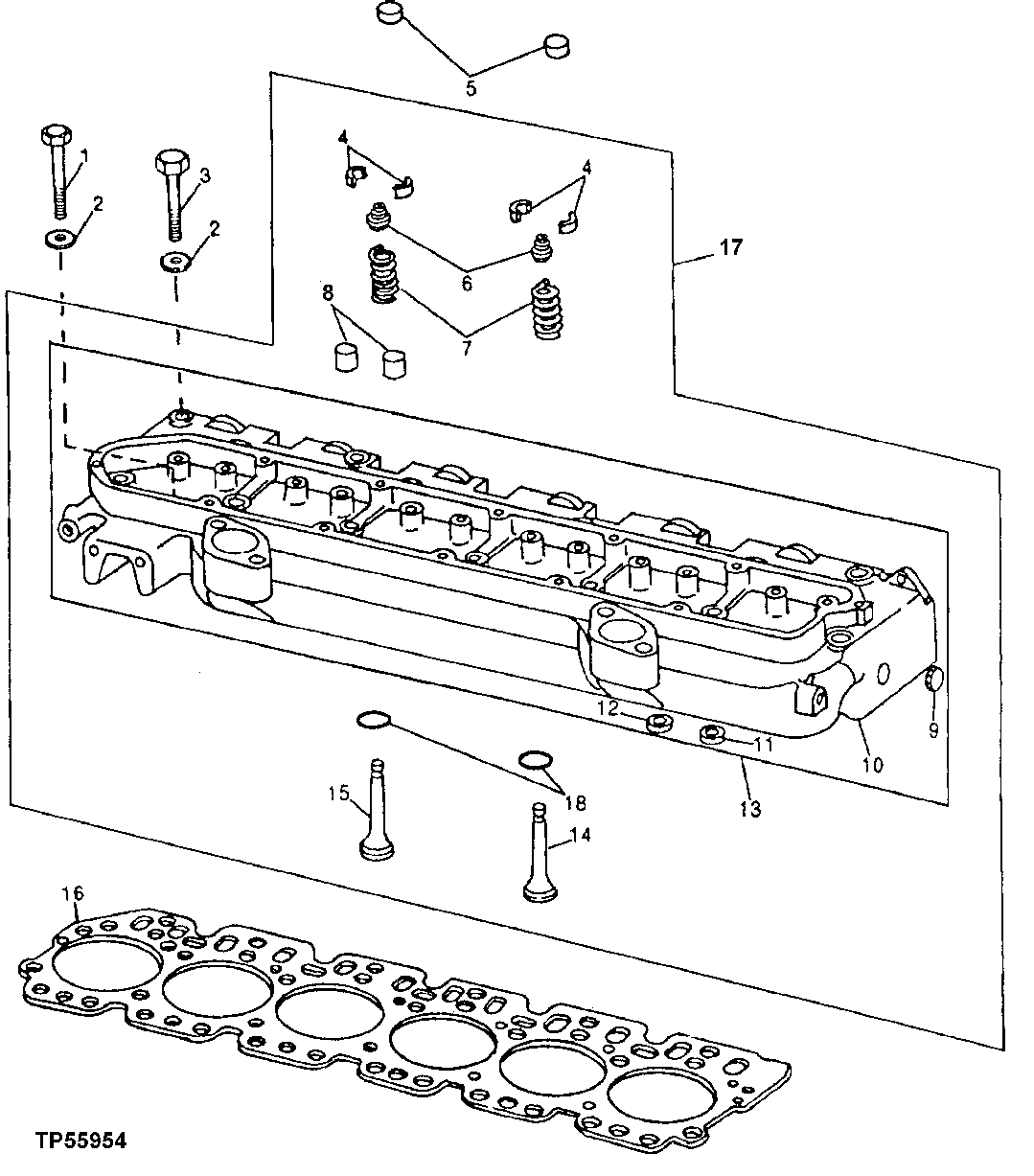

Запчасти John Deere 90D 3A - REPLACEMENT CYLINDER HEAD AND VALVES 409 - ENGINE 4

1

R85363

CAP SCREW

(SUB FOR T20182 AND R85363) 1/2" X 4-1/2" (USE WITH RE19127 AND RE19876 SHORT BLOCK)

6шт.

R85363

CAP SCREW

(SUB FOR R78558) 1/2" X 4-1/2" (USE WITH RE25612 AND RE31657 SHORT BLOCKS)

6шт.

2

T20168

WASHER

(DO NOT USE WITH R85363)

26шт.

3

R53223

CAP SCREW

1/2" X 4-1/4" (USE WITH RE19127 AND RE19876 SHORT BLOCK)

20шт.

R85363

CAP SCREW

(SUB FOR R78558) 1/2" X 4-1/2" (USE WITH RE25612 AND RE31657 SHORT BLOCKS)

20шт.

4

T20077

RETAINER

24шт.

5

T20129

CAP

12шт.

6

RE11410

ROTATOR

(SUB FOR AR41006, THIS APPLICATION)

12шт.

7

R26125

SPRING

12шт.

8

R110524

SEAL

(USE WITH RE56544)

12шт.

9

A3910R

PLUG

(SUB N102039)

ARшт.

CD16284

PLUG

ARшт.

10

CYLINDER HEAD

1шт.

11

R73064

VALVE SEAT INSERT

6шт.

12

R73065

INSERT

6шт.

13

CYLINDER HEAD

(MARKED R61035) (SUB RE56544)

1шт.

14

R89226

EXHAUST VALVE

STANDARD, (SUB FOR R73063) (ALSO ORDER R87627)

6шт.

R89227

EXHAUST VALVE

0.08 MM (.003") OVERSIZE STEM, (SUB FOR R76539) (ALSO ORDER R87627)

6шт.

R89228

EXHAUST VALVE

0.38 MM (.015") OVERSIZE STEM, (SUB FOR R76541) (ALSO ORDER R87627)

6шт.

R89229

EXHAUST VALVE

0.76 MM (.030") OVERSIZE STEM, (SUB FOR R76543) (ALSO ORDER R87627) (NLA)

6шт.

15

R83071

INTAKE VALVE

STANDARD, (SUB FOR R72611)

6шт.

R89223

INTAKE VALVE

0.08 MM (.003") OVERSIZE STEM, (SUB FOR R76538 AND R88174) (ALSO ORDER R87627)

6шт.

R89224

INTAKE VALVE

0.38 MM (.015") OVERSIZE STEM, (SUB FOR R76540 AND R88175) (ALSO ORDER R87617)

6шт.

R88176

INTAKE VALVE

0.76 MM (.030") OVERSIZE STEM, (SUB FOR R76542 AND R88176) (ALSO ORDER R87627) (NLA)

6шт.

16

R114157

ENGINE CYLINDER HEAD GASKET

(SUB FOR R73429, R80244 AND R91880 OR R92426)

1шт.

17

RE56544

CYLINDER HEAD

(MARKED R61035)

1шт.

18

R87627

O-RING

(USE WITH AR96841)

ARшт.
