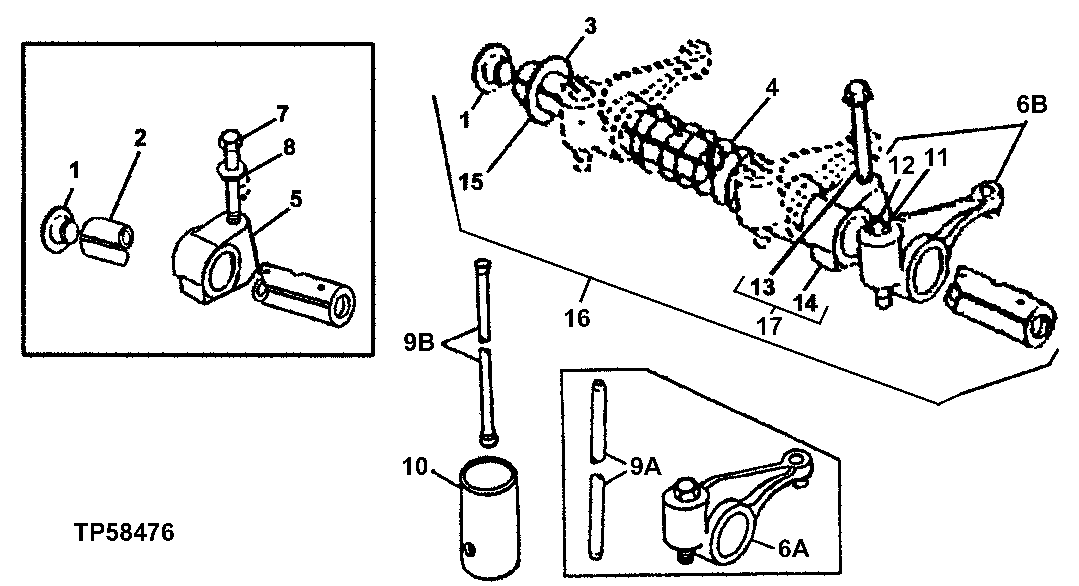

Запчасти John Deere 90ELC 23 - Rocker Arm Shaft, Push Rods and Rocker Arms ( - 704568) 0402 Camshaft And Valve Actuating Means 6068TDW07, 6068TDW56 6068TDW07, 6068TDW56

1

R54565

Plug

2шт.

2

R54986

Rocker Arm Shaft

(SUB RE502873 ) (USE W ITH 19H3031 AND T20315)

1шт.

3

T20316

Washer

2шт.

4

T20314

Spring

5шт.

5

T20315

Support

(SUB RE502861 ) (USE W ITH 19H3031 AND R54986)

6шт.

6A

RE31973

Rocker Arm

12шт.

6B

RE62148

Rocker Arm

(SUB FOR RE43384)

12шт.

7

19H3031

Cap Screw

3/8" X 2-1/2"

6шт.

8

R42729

Washer

6шт.

9A

R83429

Push Rod

12шт.

9B

R107731

Push Rod

12шт.

10

T20073

Cam Follower

12шт.

11

R125881

Lock Nut

(SUB FOR R119314)

12шт.

12

R125880

Screw

(SUB FOR R106116)

12шт.

13

R504813

Self-Locking Screw

(SUB FOR R501529)

ARшт.

19H3031

Cap Screw

3/8" X 2-1/2"

ARшт.

14

R123161

Support

6шт.

15

R123514

Rocker Arm Shaft

1шт.

16

RE502873

Rocker Arm Shaft

1шт.

17

RE502861

Support

1шт.
