44 - Engine Oil Filler Inlet Cover ( - 704568)

Запчасти John Deere 90ELC 44 - Engine Oil Filler Inlet Cover ( - 704568) 0407 OILING SYSTEM 6068TDW07, 6068TDW56 6068TDW07, 6068TDW56

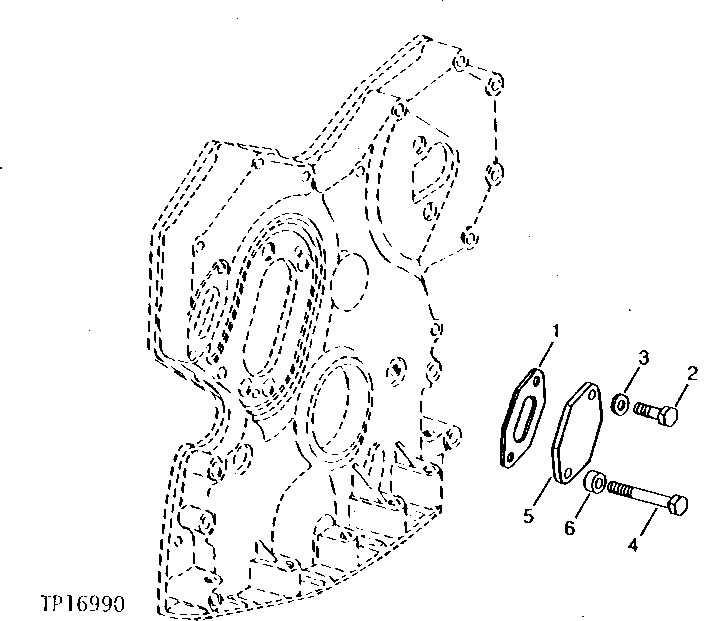

Схема запчастей John Deere 90ELC - 44 - Engine Oil Filler Inlet Cover ( - 704568) 0407 OILING SYSTEM 6068TDW07, 6068TDW56 6068TDW07, 6068TDW56
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R97352

Gasket

1шт.

2

R122618

Screw

(SUB FOR 19H2284, THIS APPLICATION)

1шт.

3

24M7106

Washer

10 X 18 X 2.500 mm

1шт.

4

19H1726

Cap Screw

3/8" X 2-1/4" (SUB FOR 1 9H1819, THIS APPLICATION)

1шт.

5

T23260

Cover

1шт.
