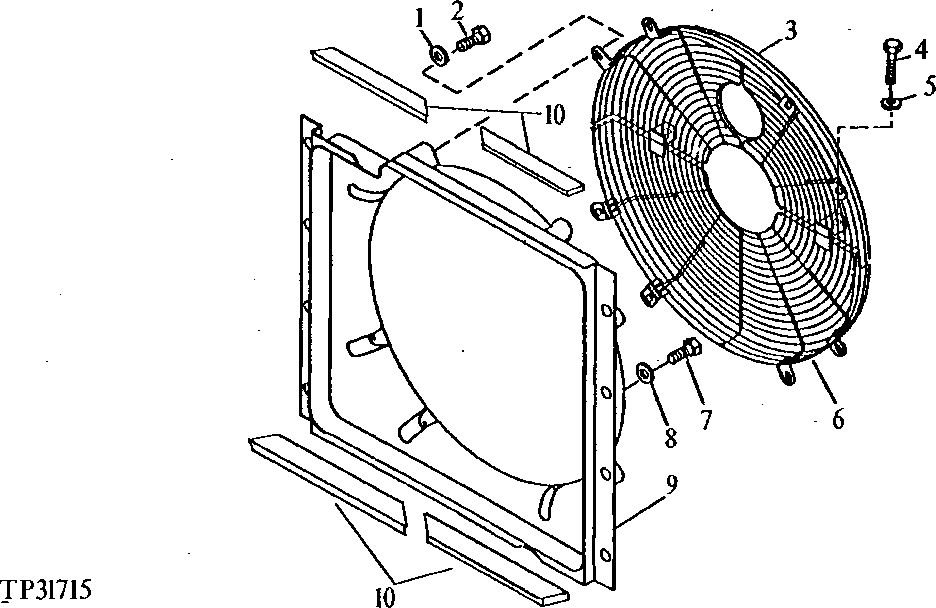

Запчасти John Deere 90ELC 100 - RADIATOR FAN SHROUD AND FAN GUARD ( - 559602) 0510 COOLING SYSTEMS

1

24M7298

Washer

8.400 X 25 X 2 mm

8шт.

2

19M7867

Screw

M8 X 25

8шт.

3

AT147419

Guard

1шт.

4

19M7785

Screw

M10 X 25

2шт.

5

24M7239

Washer

10.700 X 21 X 2.500 mm

2шт.

6

AT147323

Guard

1шт.

7

19M7785

Screw

M10 X 25

8шт.

8

24H1330

Washer

15/32" X 1-3/8" X 7/64"

8шт.

9

AT147321

Shroud

1шт.

10

Isolator

(MAKE FROM AT66778 BULK MATERIAL, CUT TO LENGTH)

ARшт.
