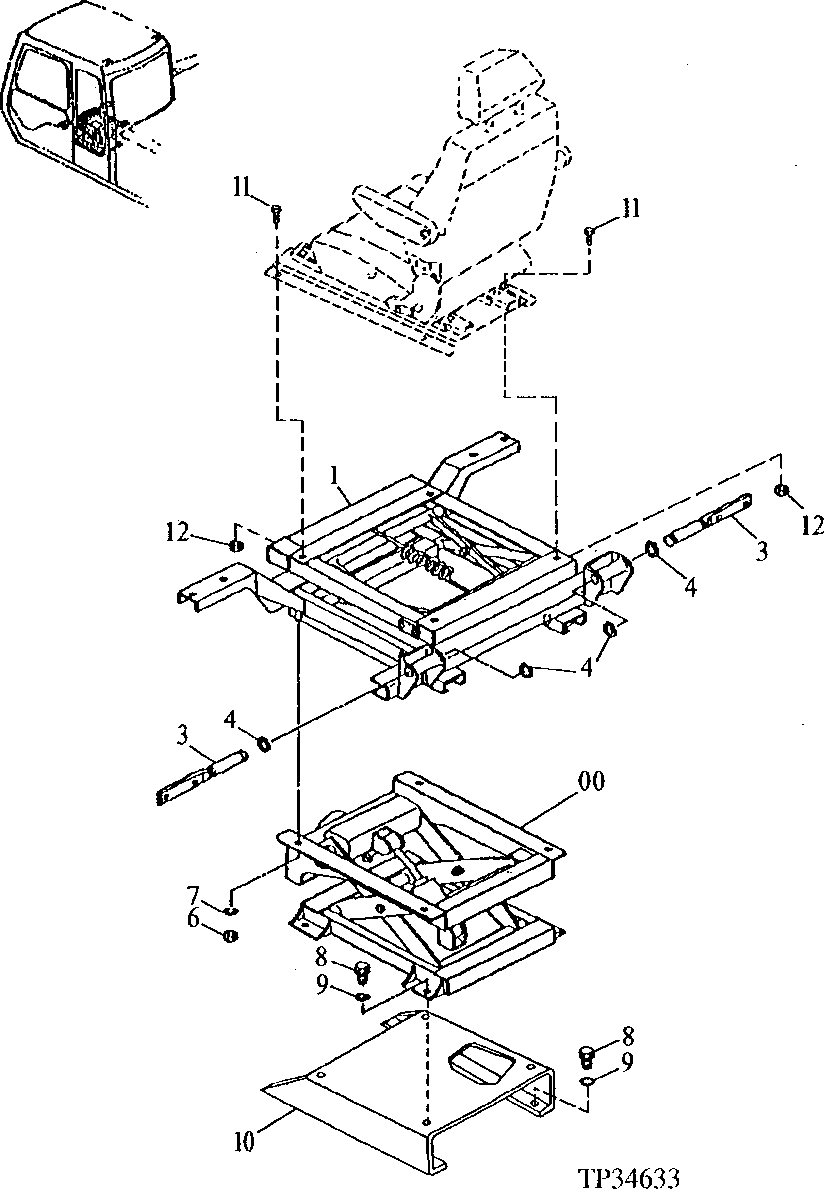

Запчасти John Deere 90ELC 190 - Seat Stand ( - 547853) 1821 SEAT AND SEAT BELT

0

4298833

Seat Suspension

SUB FOR AT154941 AND AT161754

1шт.

1

4293352

Stand

NLA, SUB FOR AT155016

1шт.

3

3052566

Pin

SUB FOR AT154900

2шт.

4

40M1824

Snap Ring

SUB FOR AT154878

4шт.

6

14M7444

Nut

M10 SUB FOR TH104196 AND J952010

4шт.

7

12M7066

Lock Washer

10 mm

4шт.

8

19M7662

Cap Screw

M10 X 30

8шт.

9

12M7066

Lock Washer

10 mm

8шт.

10

AT134364

Support

Seat

1шт.

11

19M7881

Screw

M8 X 20

4шт.

12

14M7273

Nut

M8

4шт.
