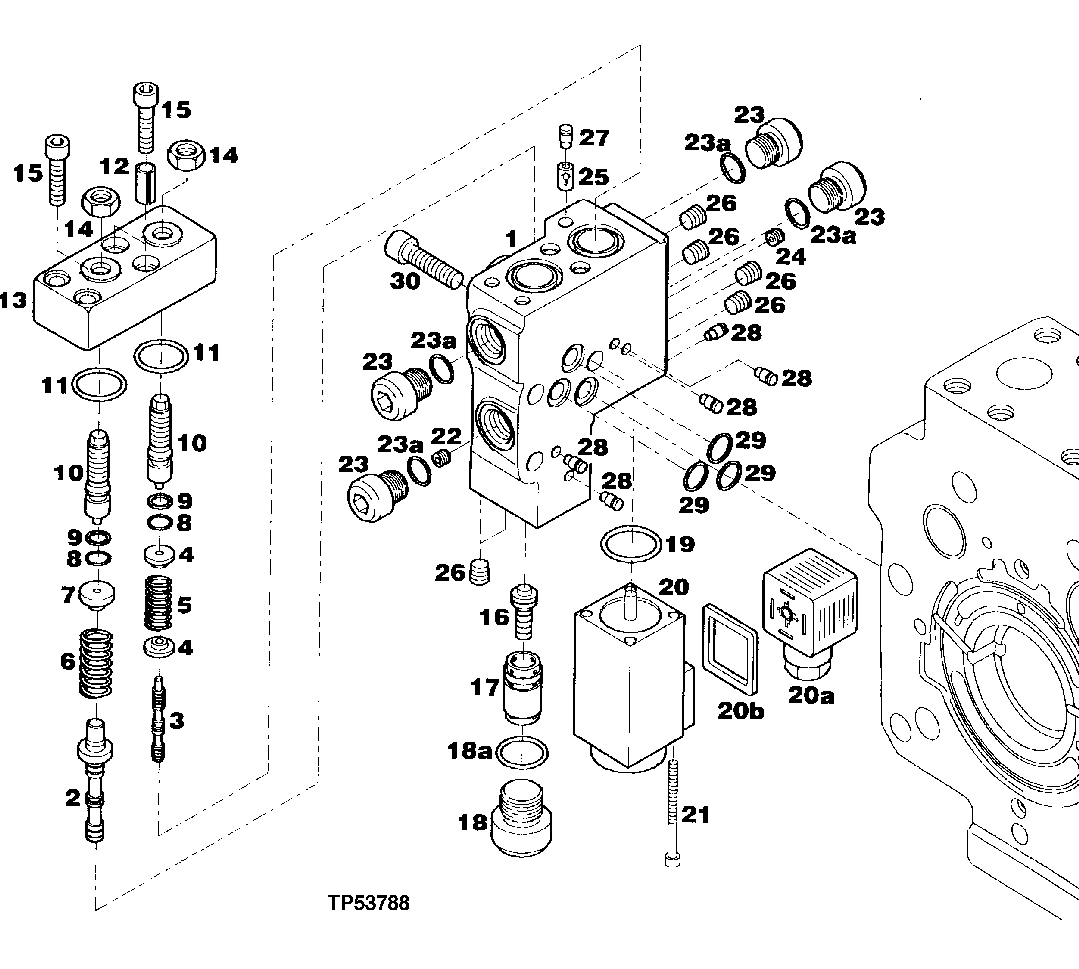

Запчасти John Deere 90ELC 248 - HYDRAULIC PUMP PRESSURE REGULATOR (559603 - ) 2160 HYDRAULIC SYSTEM

1

Housing

1шт.

2

Guide

WITHIN HOUSING (NOT ILLUSTRATED)

1шт.

3

Piston

WITHIN HOUSING (NOT ILLUSTRATED)

1шт.

4

Plate

2шт.

5

Compression Spring

1шт.

6

Compression Spring

1шт.

7

Plate

1шт.

8

T161738

O-Ring

2шт.

9

T161739

Ring

2шт.

10

T161762

Bolt

2шт.

11

T75984

O-Ring

2шт.

12

Sleeve

2шт.

13

Cover

1шт.

14

R65044

Nut

2шт.

15

19M8505

Screw

M6 X 25

4шт.

16

Piston

1шт.

17

Bushing

1шт.

18

Plug

1шт.

18A

51M7043

O-Ring

15.300 X 2.200 mm

1шт.

19

T49819

O-Ring

1шт.

20

AT152024

Solenoid

1шт.

20A

Plug

1шт.

20B

Seal

1шт.

21

19M8812

Screw

M4 X 50

4шт.

22

Pin

1шт.

23

Plug

SCREW

4шт.

23A

L53813

O-Ring

4шт.

24

T161764

Orifice

1шт.

25

Check Valve

1шт.

26

Plug

SCREW

6шт.

27

Plug

SEALING

1шт.

28

Plug

SEALING

5шт.

29

L53976

O-Ring

3шт.

30

Socket Head Screw

3шт.

AT180184

Regulator

INCLUDES ALL PARTS (REGULATOR ASSEMBLY) (CONTAINS ALL PARTS LISTED ON THIS PAGE)

1шт.
