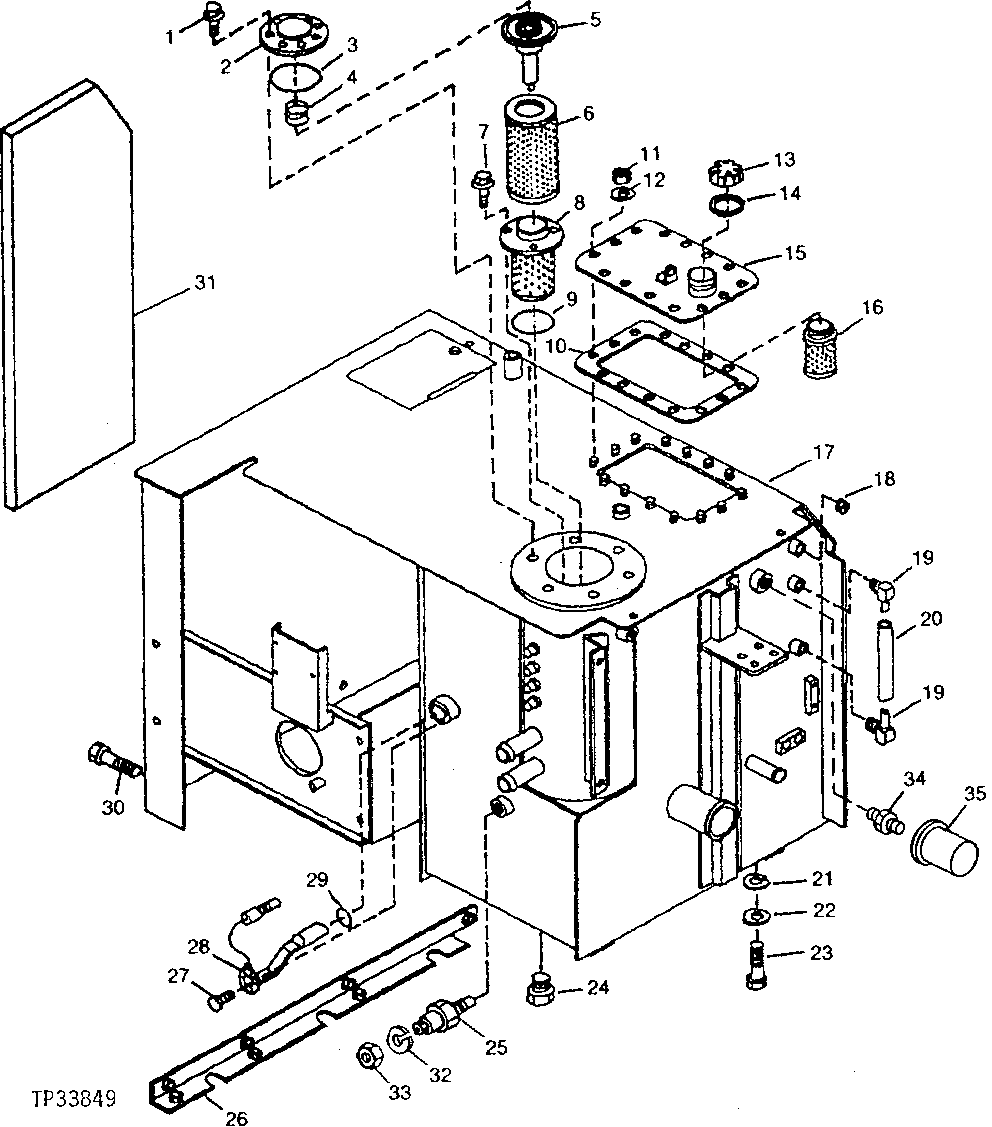

Запчасти John Deere 90ELC 260 - Hydraulic Reservoir ( - 538062) 2160 HYDRAULIC SYSTEM

1

19M7783

Screw

M10 X 16

6шт.

2

4204057

Cover

(SUB FOR TH111304)

1шт.

3

T110444

O-Ring

189.300 X 5.700 mm (7-29/64" X 0.224")

1шт.

4

4226549

Extension Spring

(SUB FOR TH109512)

1шт.

5

4180414

Flow Control Hyd. Valve

(SUB FOR TH109511)

1шт.

6

AT147343

Filter Element

1шт.

AT162766

Filter Element

(CLEAN-UP FILTER) (SHORT TERM USE - A PPROXIMATELY THREE HOURS) (IDLE SPEED)

1шт.

7

19M7862

Screw

M6 X 20

3шт.

8

AT152028

Strainer

1шт.

9

T38485

O-Ring

1шт.

10

T114729

Gasket

1шт.

11

14M7296

Flange Nut

M10

14шт.

12

24M7296

Washer

10.500 X 30 X 2.500 mm

14шт.

13

T191207

Filler Cap

(SUB FOR T121028)

1шт.

14

T103461

Sealing Washer

1шт.

15

AT142356

Cover

1шт.

16

AT147349

Screen

1шт.

17

Hydraulic Reservoir

( AT147240 NO LONGER AV AILABLE) (SUB AT161074)

1шт.

18

RE57836

Pipe Plug

12.700 mm (1/2") (SUB FOR 15H561)

1шт.

19

N115724

Elbow Fitting

2шт.

20

Tube

(MAKE FROM T107253 BULK MATERIAL, CUT TO LENGTH)

1шт.

21

24H1454

Washer

1-1/32" X 2" X 0.060"

ARшт.

22

T29049

Washer

4шт.

23

19M7950

Cap Screw

M20 X 45

4шт.

24

U17027

Fitting

1шт.

25

AT135260

Switch

TEMPERATURE

1шт.

26

AT152030

Angle

1шт.

27

19M7077

Cap Screw

M6 X 20

3шт.

28

RE16223

Sensor

1шт.

29

R47154

O-Ring

1шт.

30

19M7402

Cap Screw

M10 X 25

7шт.

31

T143354

Deflector

(ONE BETWEEN FRONT OF TANK AND OUTER SKIN A ND ONE BETWEEN RESERVOIR TANK AND FUEL TANK)

2шт.

32

12H246

Lock Washer

0.190"

1шт.

33

14H605

Nut

0.164"

1шт.

34

AT79591

Pressure Relief Valve

1шт.

35

AT79590

Filter Element

1шт.
