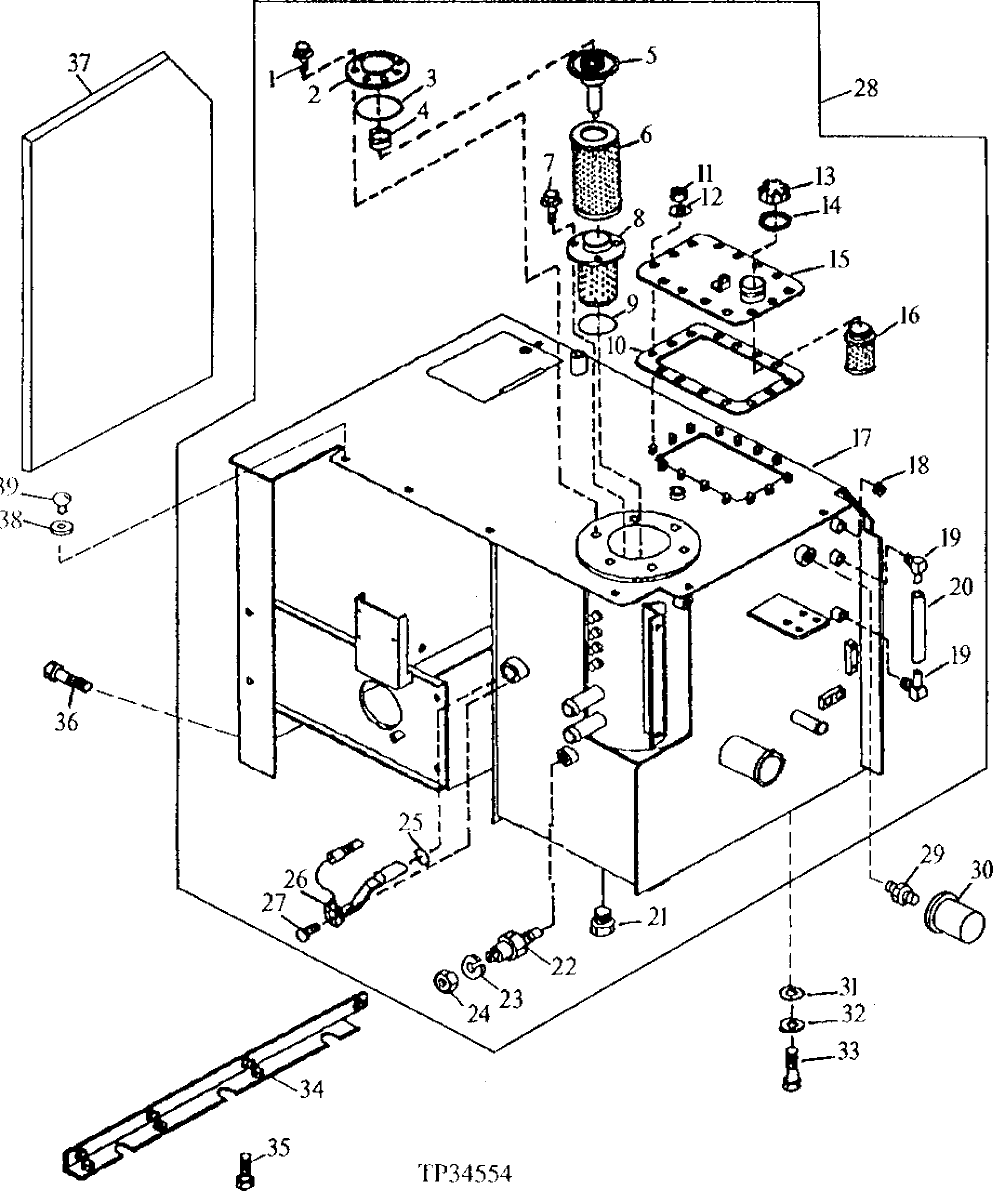

Запчасти John Deere 90ELC 261 - Hydraulic Reservoir (538063 - ) 2160 HYDRAULIC SYSTEM

1

19M7783

Screw

M10 X 16

6шт.

2

4204057

Cover

SUB FOR TH111304

1шт.

3

T110444

O-Ring

189.300 X 5.700 mm (7-29/64" X 0.224")

1шт.

4

4226549

Extension Spring

SUB FOR TH109512

1шт.

5

4180414

Flow Control Hyd. Valve

SUB FOR TH109511

1шт.

6

AT147343

Filter Element

1шт.

AT162766

Filter Element

CLEAN-UP FILTER, SHORT TERM USE - A PPROXIMATELY THREE HOURS, IDLE SPEED

1шт.

7

19M7862

Screw

M6 X 20

3шт.

8

AT152028

Strainer

1шт.

9

T38485

O-Ring

1шт.

10

T114729

Gasket

1шт.

11

14M7296

Flange Nut

M10

14шт.

12

24M7296

Washer

10.500 X 30 X 2.500 mm

14шт.

13

T191207

Filler Cap

SUB FOR T121028

1шт.

14

T103461

Sealing Washer

1шт.

15

AT142356

Cover

1шт.

16

AT147349

Screen

1шт.

17

Hydraulic Reservoir

SUB AT161074

1шт.

18

RE57836

Pipe Plug

12.700 mm (1/2") SUB FOR 15H561

1шт.

19

N115724

Elbow Fitting

2шт.

20

Tube

MAKE FROM T107253 BULK MATERIAL, CUT TO LENGTH

1шт.

21

U17027

Fitting

1шт.

22

AT135260

Switch

TEMPERATURE

1шт.

23

12H246

Lock Washer

0.190"

1шт.

24

14H605

Nut

0.164"

1шт.

25

R47154

O-Ring

1шт.

26

RE16223

Sensor

1шт.

27

19M8425

Cap Screw

M6 X 16

3шт.

28

AT161074

Reservoir

1шт.

29

AT79591

Pressure Relief Valve

1шт.

29H118

Threaded Nipple

1/4" USE BETWEEN RELIEF VALVE AND ELBOW FITTING

1шт.

30

AT79590

Filter Element

1шт.

31

24H1454

Washer

1-1/32" X 2" X 0.060"

ARшт.

32

T29049

Washer

4шт.

33

19M7950

Cap Screw

M20 X 45

4шт.

34

AT152030

Angle

1шт.

35

19M7785

Screw

M10 X 25

7шт.

36

19M7402

Cap Screw

M10 X 25

7шт.

37

T143354

Deflector

BETWEEN RESERVOIR TANK AND FUEL TANK

1шт.

38

M91380

Washer

4шт.

39

T149880

Bumper

4шт.
