307 - HEAVY DUTY BUCKET (ORDER BUCKET TEETH SEPARATELY)

Запчасти John Deere 90ELC 307 - HEAVY DUTY BUCKET (ORDER BUCKET TEETH SEPARATELY) 3302 Bucket With Teeth

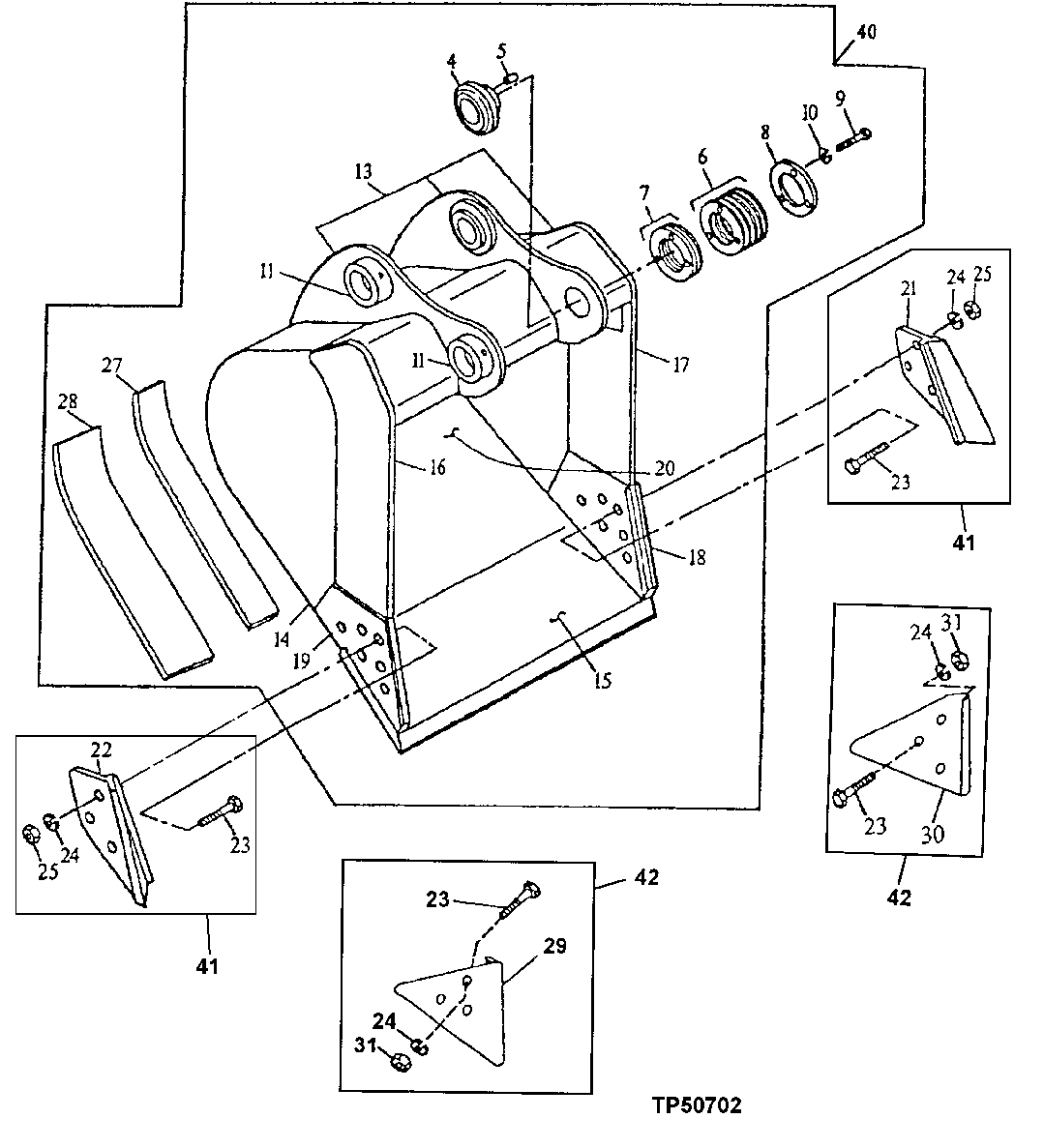

Схема запчастей John Deere 90ELC - 307 - HEAVY DUTY BUCKET (ORDER BUCKET TEETH SEPARATELY) 3302 Bucket With Teeth
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

4

Self-Aligning Bushing

(1 INCH HEAD THICKNESS) ( AT131083 NLA)

1шт.

5

R48685

Dowel Pin

1шт.

6

TH104512

Washer

9шт.

7

TH104513

Shim

1шт.

8

TH104514

Spacer

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH104509

Bushing

(LOCKING COLLAR)

2шт.

13

C607480

Pivot

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

300804

Plate

(A) (RIGHT AND LEFT SIDE)

2шт.

15

Cutting Edge

(CUT TO LENGTH FROM AT131082 BULK MATERIAL)

1шт.

16

300526

Vertical Cutter

(A) (UPPER RIGHT SIDE)

1шт.

17

300527

Vertical Cutter

(A) (UPPER LEFT SIDE)

1шт.

18

304568

Vertical Cutter

(A) (LEFT INSERT)

1шт.

19

304567

Vertical Cutter

(A) (RIGHT INSERT)

1шт.

20

600417

Moldboard

(A) (24 INCH)

1шт.

600418

Moldboard

(A) (30 INCH)

1шт.

600419

Moldboard

(A) (36 INCH)

1шт.

600420

Moldboard

(A) (42 INCH)

1шт.

600122

Moldboard

(A) (48 INCH)

1шт.

21

Cutting Edge

(SUB AT131085)(LEFT)

1шт.

22

Cutting Edge

(SUB AT131085)(RIGHT)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300524

Bar

(A) (INNER WEAR)

1шт.

28

304564

Bar

(A) (OUTER WEAR)

2шт.

29

Shroud

(WEAR SHROUD) (SUB AT167876)

1шт.

30

Shroud

(WEAR SHROUD) (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

6шт.

40

Excavator Bucket

(SUB AT332688)(AT163611 NLA) WHOLEGOO DS (24 INCH - .59 CUBIC YARD) (AVAILAB LE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332689)(AT163612 NLA) WHOLEGOO DS (30 INCH - .77 CUBIC YARD) (AVAILAB LE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332690)(AT163613 NLA) WHOLEGOO DS (36 INCH - .95 CUBIC YARD) (AVAILAB LE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332691)(AT163614 NLA) WHOLEGOO DS (42 INCH - 1.12 CUBIC YARD) (AVAILA BLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332692)(AT163615 NLA) WHOLEGOO DS (48 INCH - 1.30 CUBIC YARD) (AVAILA BLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

41

Kit

(CUTTING EDGE) WHOLEGOODS ( AT131085 NL A) (WOODS-CENTRAL FABRICATORS NO. C15029)

1шт.

42

Kit

(WEAR) WHOLEGOODS ( AT167876 NLA) ( WOODS-CENTRAL FABRICATORS NO. C27994)

1шт.
