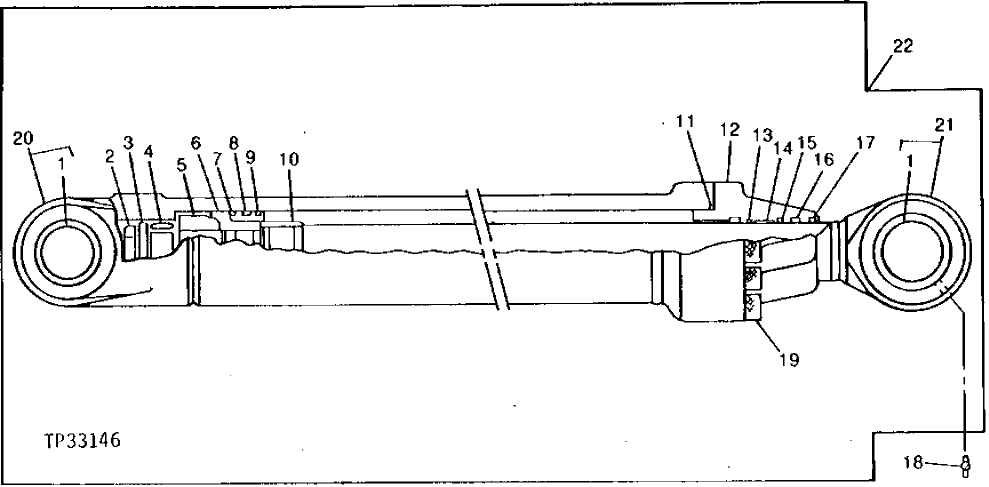

Запчасти John Deere 90ELC 345 - Arm Cylinder (544626 - ) 3360 HYDRAULIC SYSTEM

1

H144210

Bushing

HEAD AND ROD END

2шт.

TH102446

Seal

4шт.

2

19M7974

Cap Screw

M24 X 50

1шт.

3

H144875

Washer

1шт.

4

H144839

Cushion

1шт.

5

H144236

Nut

1шт.

6

H144224

Piston

1шт.

7

AH138084

Seal

(K)

1шт.

8

H144227

Wear Ring

(K)

2шт.

9

H144230

Back-Up Ring

(K)

2шт.

10

H144233

Cushion

1шт.

11

H144920

Ring

(K)

1шт.

12

H146299

Hydr. Cylinder Rod Guide

1шт.

13

R81787

Ring

1шт.

14

T108050

Wear Ring

(SUB FOR H146481)

1шт.

15

AH144608

Seal

(K) (SUB FOR AH139764)

1шт.

16

AH140482

Seal

(K)

1шт.

17

H149664

Seal

(K) (SUB FOR H146688)

1шт.

18

JD7784

Lubrication Fitting

1шт.

19

19M8630

Screw

M24 X 80

8шт.

20

AH144656

Hydraulic Cylinder Barrel

1шт.

21

AH138072

Hydraulic Cylinder Rod

1шт.

22

AH144677

Hydraulic Cylinder

1шт.

AH144595

Hydraulic Cylinder Kit

INCLUDES ALL (K) PARTS (CYLINDER SEAL)

1шт.
