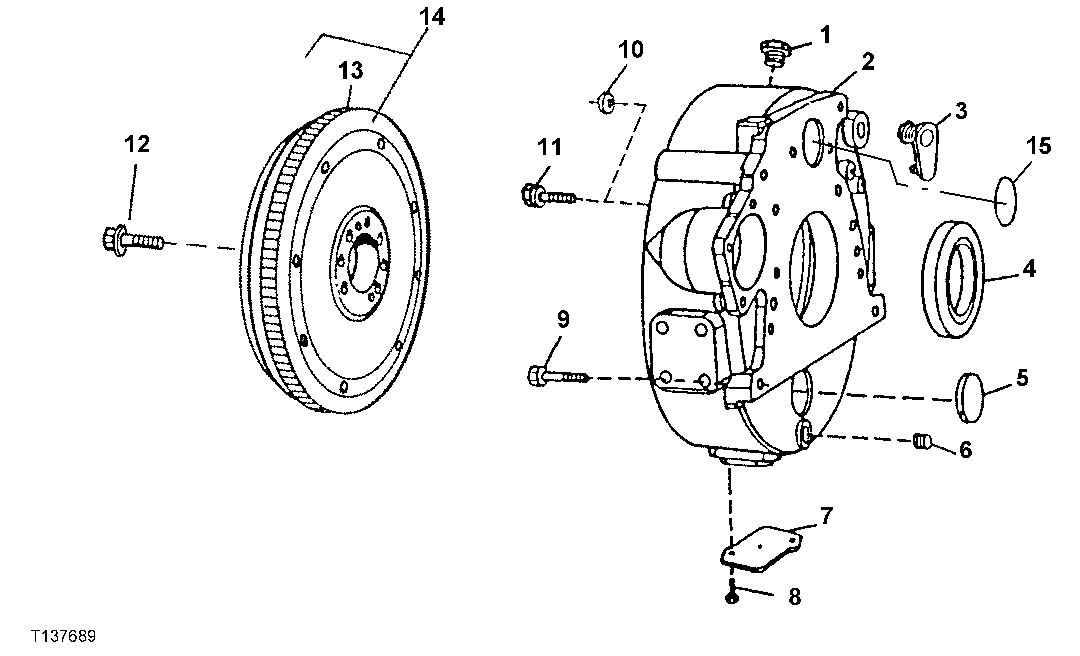

Запчасти John Deere 90ELC 93 - Flywheel Housing (704569 - ) 0433 FLYWHEEL, HOUSING AND FASTENINGS 6068TDW07, 6068TDW56 6068TDW07, 6068TDW56

1

R39112

Fitting

1шт.

2

R132006

Housing

(SUB R503451 AND R61467)

1шт.

R503451

Housing

(ALSO ORDER R61467)

1шт.

3

R131769

Plug

1шт.

4

RE44574

Seal

1шт.

5

T13518

Plug

1шт.

6

RE57836

Pipe Plug

12.700 mm (1/2") (SUB FOR 15H624)

1шт.

7

R121039

Plate

2шт.

8

19M7923

Cap Screw

M6 X 12

2шт.

9

19M8306

Screw

M12 X 50

4шт.

10

T77258

Washer

(USE WITH 19M7493)

8шт.

11

R135918

Bolt

(SUB FOR 19M7493)

8шт.

12

R135918

Bolt

6шт.

13

R28811

Ring Gear

1шт.

14

RE500398

Flywheel

1шт.

15

R61467

O-Ring

1шт.
