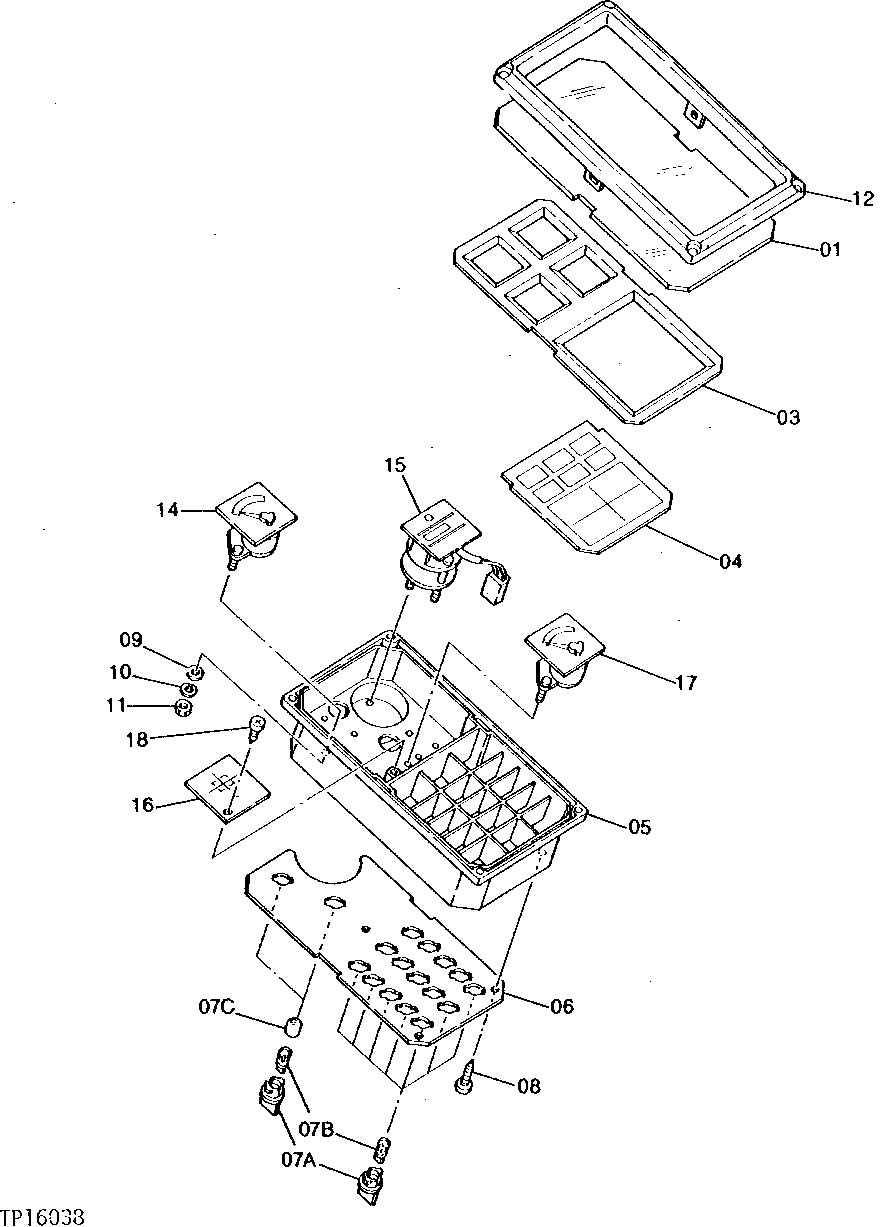

Запчасти John Deere 0 2 - GAUGE PANEL 1676 - ELECTRICAL SYSTEM 16

1

4149055

COVER

(SUB FOR TH100602)

1шт.

3

4149056

LENS

(SUB FOR TH100603)

1шт.

4

4153469

LENS

(SUB FOR TH101077)

1шт.

5

4149061

HOUSING

(SUB FOR TH100605)

1шт.

6

4149063

CIRCUIT BOARD

(SUB FOR TH100606)

1шт.

7A

4127783

SOCKET

(SUB FOR TH100607)

17шт.

7B

57M7169

BULB

17шт.

7C

4149128

LENS

(SUB FOR TH100609)

2шт.

8

4149067

SCREW

(SUB FOR TH100610)

3шт.

9

24M7029

SHIM

0.500 MM, (SUB FOR TH100611)

11шт.

10

12H233

LOCK WASHER

3.175 MM, (SUB FOR TH100580) (SUB FOR 12M7048)

11шт.

11

14M7030

NUT

M3

11шт.

12

4149054

BEZEL

(SUB FOR TH100601)

1шт.

14

4142553

TEMPERATURE GAUGE

(SUB FOR TH100613)

1шт.

15

4142552

HOUR METER

(SUB FOR TH100614)

1шт.

16

TH100615

LENS

1шт.

17

4142554

LEVEL GAUGE

(SUB FOR TH100616)

1шт.

18

TH100617

SCREW

1шт.
