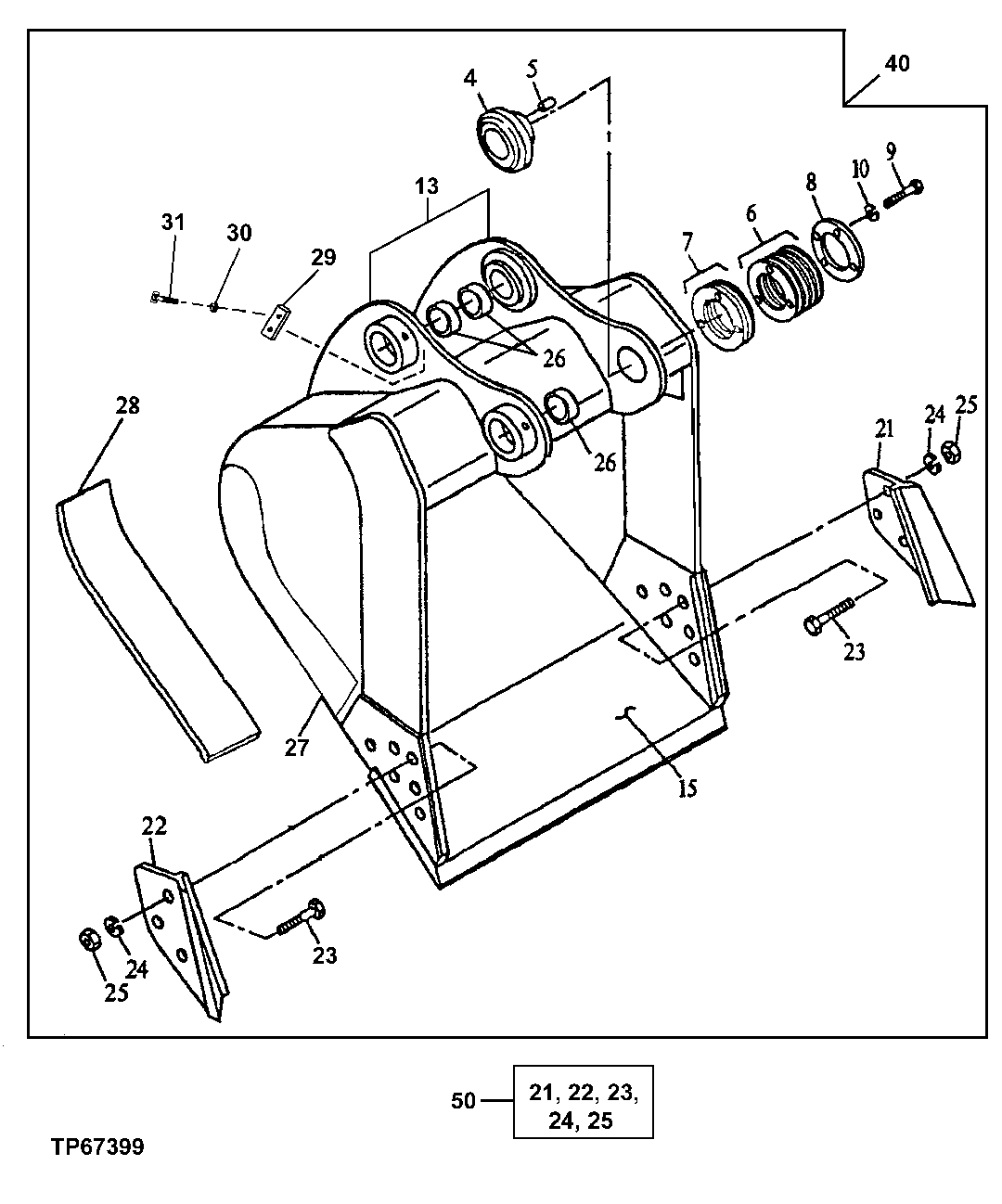

Запчасти John Deere 50 114 - Heavy Duty Bucket (Also Order Bucket Tooth Assemblies) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

4

AT189912

Bushing

1шт.

5

C31732

Dowel Pin

(F)

2шт.

6

4267761

Shim

(SUB FOR AT189913)

6шт.

7

C31733

Shim

(F)

2шт.

8

AT189914

Retainer

1шт.

9

AT189916

Cap Screw

4шт.

10

AT189915

Washer

4шт.

13

10072

Pivot

(F) (36 INCH - 1.97 CUBIC YARD B UCKET) (BUCKET EAR BLANK ASSEMBLY)

1шт.

10073

Pivot

(F) (42 INCH - 2.43 CUBIC YARD B UCKET) (BUCKET EAR BLANK ASSEMBLY)

1шт.

10074

Pivot

(F) (48 INCH - 2.90 CUBIC YARD B UCKET) (BUCKET EAR BLANK ASSEMBLY)

1шт.

10075

Pivot

(F) (54 INCH - 3.38 CUBIC YARD B UCKET) (BUCKET EAR BLANK ASSEMBLY)

1шт.

10076

Pivot

(F) (60 INCH - 3.86 CUBIC YARD B UCKET) (BUCKET EAR BLANK ASSEMBLY)

1шт.

10078

Pivot

(F) (72 INCH - 4.84 CUBIC YARD B UCKET) (BUCKET EAR BLANK ASSEMBLY)

1шт.

15

C30651

Cutting Edge

(F) (36 INCH - 1.97 CUBIC YARD BUCKET)

1шт.

C30652

Cutting Edge

(F) (42 INCH - 2.43 CUBIC YARD BUCKET)

1шт.

C30653

Cutting Edge

(F) (48 INCH - 2.90 CUBIC YARD BUCKET)

1шт.

C30654

Cutting Edge

(F) (54 INCH - 3.38 CUBIC YARD BUCKET)

1шт.

C30655

Cutting Edge

(F) (60 INCH - 3.86 CUBIC YARD BUCKET)

1шт.

C30657

Cutting Edge

(F) (72 INCH - 4.84 CUBIC YARD BUCKET)

1шт.

21

Cutting Edge

(SUB AT189734)

1шт.

22

Cutting Edge

(SUB AT189734)

1шт.

23

Bolt

(SUB AT189734)

ARшт.

24

Lock Washer

(SUB AT189734)

ARшт.

25

Nut

(SUB AT189734)

ARшт.

26

C31729

Bushing

(F)

2шт.

C31728

Bushing

(F)

1шт.

27

C317345

Plate

(F)

2шт.

28

C616777

Bar

(F) (36 INCH - 1.97 CUBIC YARD BUCKET)

1шт.

C616778

Bar

(F) (42 INCH - 2.43 CUBIC YARD BUCKET)

1шт.

C616779

Bar

(F) (48 INCH - 2.90 CUBIC YARD BUCKET)

1шт.

C616780

Bar

(F) (54 INCH - 3.38 CUBIC YARD BUCKET)

1шт.

C616781

Bar

(F) (60 INCH - 3.86 CUBIC YARD BUCKET)

1шт.

C616783

Bar

(F) (72 INCH - 4.84 CUBIC YARD BUCKET)

1шт.

29

AT189911

Retainer

1шт.

30

12M7068

Lock Washer

14 mm

2шт.

31

19M6579

Cap Screw

M14 X 50

2шт.

40

Excavator Bucket

(36 INCH - 1.97 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT189788 NLA) (USE WITH 17'9" LONG ARM)

1шт.

Excavator Bucket

(42 INCH - 2.43 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT189789 NLA) (USE WITH 17'9" LONG ARM)

1шт.

Excavator Bucket

(48 INCH - 2.90 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT189790 NLA) (USE WITH 17'9" LONG ARM)

1шт.

Excavator Bucket

(54 INCH - 3.38 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT189791 NLA) (USE WITH 17'9" LONG ARM)

1шт.

Excavator Bucket

(60 INCH - 3.86 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT189792 NLA) (USE WITH 17'9" LONG ARM)

1шт.

Excavator Bucket

(72 INCH - 4.84 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT189793 NLA) (USE WITH 17'9" LONG ARM)

1шт.

50

Kit

SIDE CUTTER ( AT189734 NLA)

1шт.
