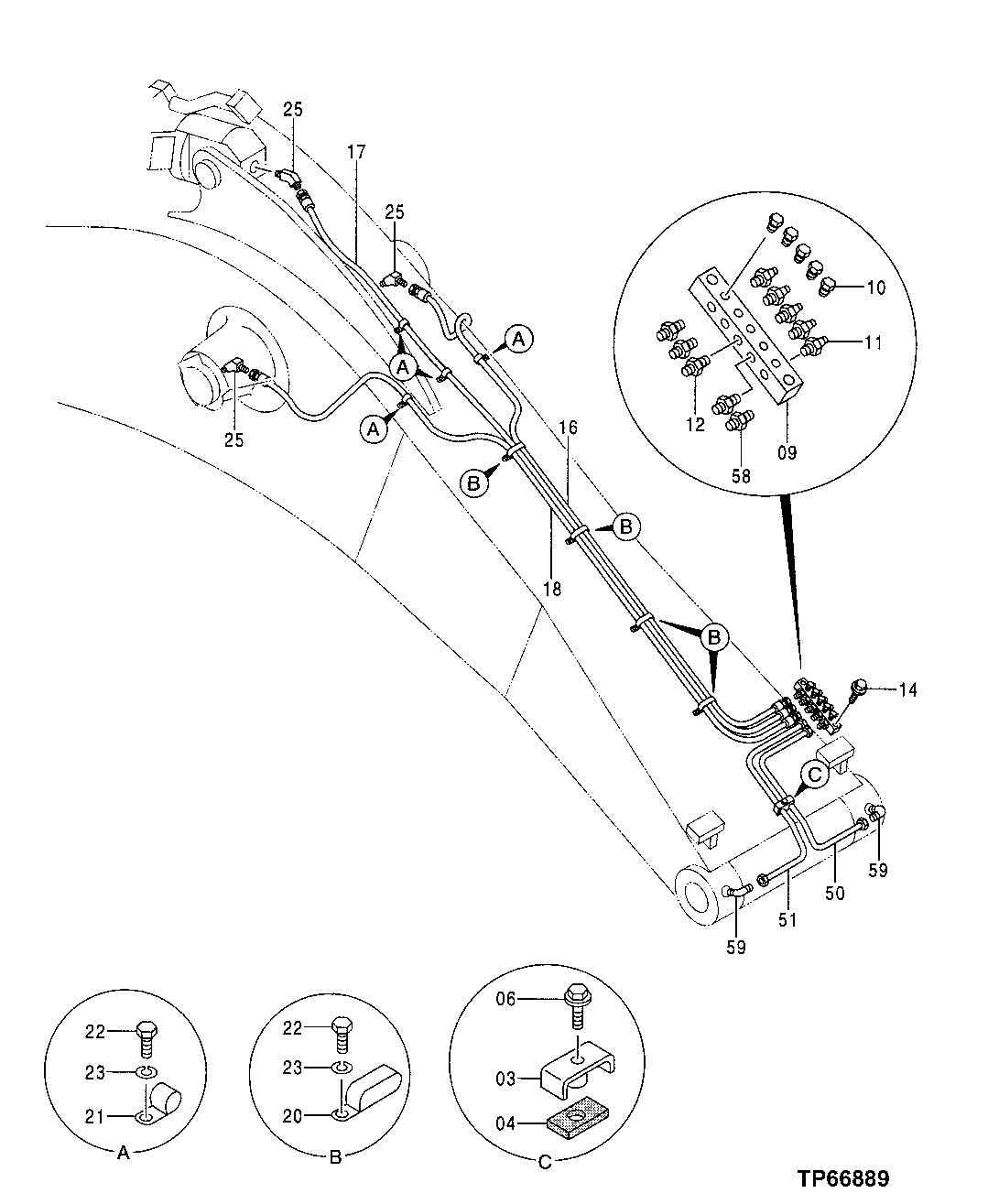

Запчасти John Deere 50 169 - Lubricate Pipings - Mass Excavation Boom 3360 HYDRAULIC SYSTEM

3

9736422

Clamp

(SUB FOR AT202175)

1шт.

4

AT318012

Isolator

(SUB FOR 4269657 ) (SUB FOR AT130970)

1шт.

6

19M7662

Cap Screw

M10 X 30

1шт.

12M7066

Lock Washer

10 mm

1шт.

9

4333514

Junction Block

(SUB FOR TH4333514)

1шт.

10

JD7769

Lubrication Fitting

5шт.

11

446536

Plug

(SUB FOR TH446536)

5шт.

12

X4-4FTX-S

Adapter Fitting

(SUB FOR X0103-4-4 ) (SUB FOR TH100963)

3шт.

14

19M7658

Cap Screw

M10 X 50

2шт.

12M7066

Lock Washer

10 mm

2шт.

16

4316009

Hose

(SUB FOR AT167078)

1шт.

17

4224467

Hydraulic Hose

(SUB FOR TH4224467)

1шт.

18

4364320

Hydraulic Hose

(SUB FOR TH4364320)

1шт.

20

T152608

Clamp

4шт.

21

4190261

Clip

(SUB FOR TH109649)

4шт.

22

19M8324

Cap Screw

M10 X 16

8шт.

23

12M7066

Lock Washer

10 mm

8шт.

25

4154655

Elbow Fitting

(SUB FOR TH101056)

3шт.

50

4343018

Oil Line

(SUB FOR TH4343018)

1шт.

51

4343019

Oil Line

(SUB FOR TH4343019)

1шт.

58

4130169

Fitting

(SUB FOR TH101391)

2шт.

59

4130175

Fitting

(SUB FOR TH101392)

2шт.
