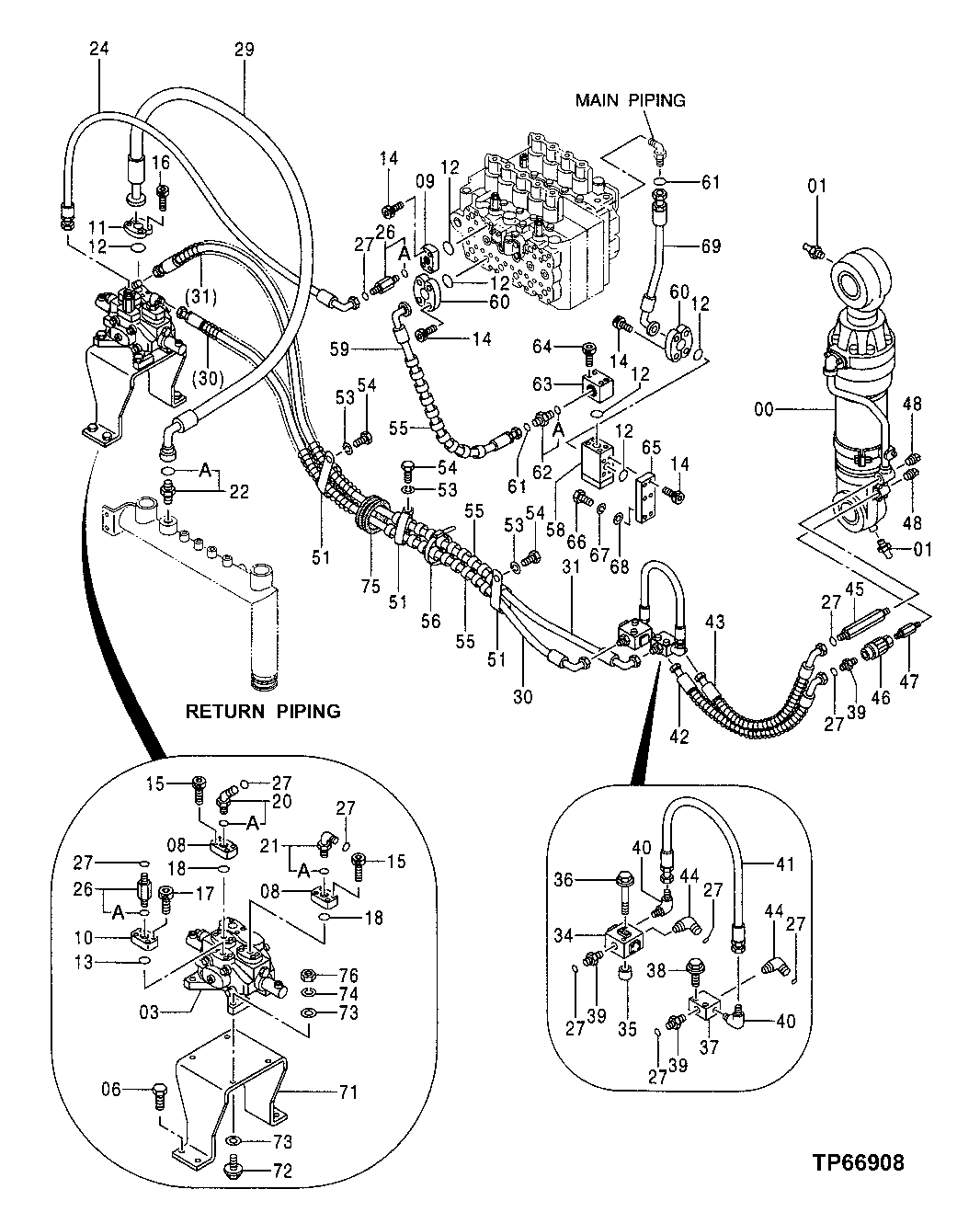

Запчасти John Deere 50 205 - HIGH PRESSURE PIPING REMOVAL DEVICE (CONTINUED) 3360 HYDRAULIC SYSTEM

51

R134002

Clamp

(SUB FOR TH111255 ) (SUB FOR 4193816)

3шт.

53

12M7066

Lock Washer

10 mm

3шт.

54

19M7938

Cap Screw

M10 X 20

3шт.

55

TH100996

Hose Guard

6шт.

56

H77698

Tie Band

4шт.

58

4272936

Check Valve

(SUB FOR TH4272936)

1шт.

59

4395631

Hydraulic Hose

(SUB FOR TH4395631)

1шт.

60

AT131685

Flange Fitting

4шт.

61

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

2шт.

62

4189535

Adapter Fitting

(SUB FOR AT114853)

1шт.

62A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

63

4395629

Manifold

(SUB FOR TH4395629)

1шт.

64

19M8803

Screw

M14 X 90

4шт.

65

4395627

Cover

(SUB FOR TH4395627)

1шт.

66

19M7489

Cap Screw

M16 X 45

2шт.

67

12H294

Lock Washer

5/8"

6шт.

68

24M7053

Washer

17 X 30 X 3 mm

6шт.

69

4395630

Hydraulic Hose

(SUB FOR TH4395630)

1шт.

71

3081466

Bracket

(SUB FOR TH3081466)

1шт.

72

19M7753

Cap Screw

M12 X 70

4шт.

73

24M7047

Washer

13 X 24 X 2.500 mm

8шт.

74

12H301

Lock Washer

1/2"

4шт.

75

4255567

Bushing

(SUB FOR TH4255567)

1шт.

76

14M7275

Nut

M12

4шт.
