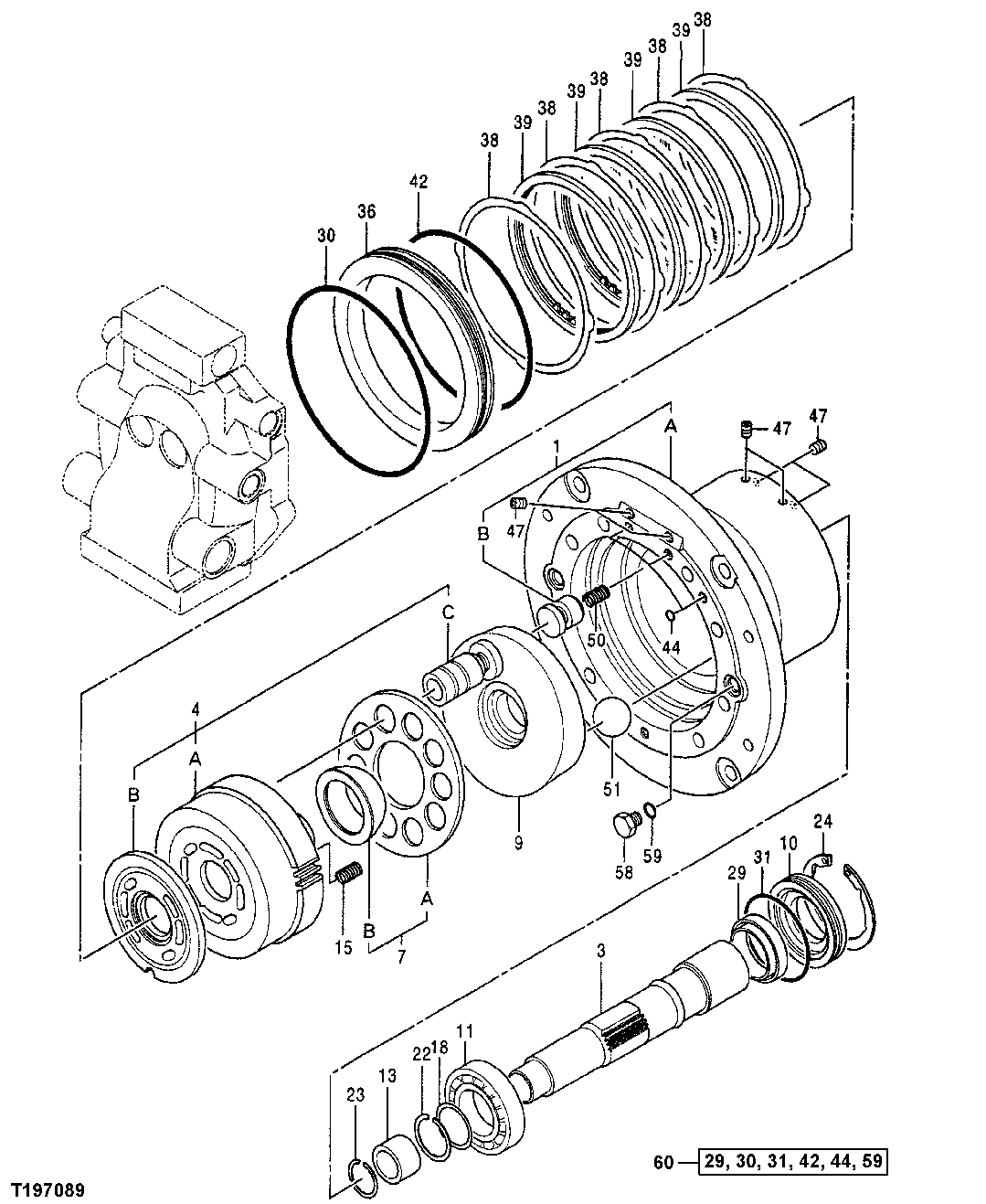

Запчасти John Deere 50 13 - Propel Drive Repair Parts 0260 HYDRAULIC SYSTEM

1

0682701

Housing

SUB FOR TH0682701

1шт.

1A

Housing

1шт.

1B

Piston

4шт.

3

0376902

Shaft

SUB FOR TH0376902

1шт.

4

0682702

Cylinder Block

SUB FOR TH0682702

1шт.

4A

Cylinder Block

1шт.

4B

Plate

1шт.

4C

Piston

9шт.

7

0709801

Plate

SUB FOR TH0702101

1шт.

7A

Plate

1шт.

7B

Holder

1шт.

9

0682703

Swash Plate

SUB FOR TH0682703

1шт.

10

0376905

Bearing Race

SUB FOR TH0376905

1шт.

11

0376906

Cylindrical Roller Bearing

SUB FOR TH0376906

1шт.

13

0352210

Bearing Race

SUB FOR AT132247

1шт.

15

0682704

Spring

SUB FOR TH0682704

9шт.

18

L39999

Washer

SUB FOR AT132251 OR 0352214

1шт.

22

0352215

Ring

SUB FOR AT132252

1шт.

23

0352216

Ring

SUB FOR AT132253

1шт.

24

0311317

Snap Ring

SUB FOR TH109060

1шт.

29

0376907

Seal

SUB FOR TH0376907 OR 4S01083

1шт.

30

0419806

O-Ring

SUB FOR AT201977

1шт.

31

AT264223

O-Ring

SUB FOR AT121852 OR A811105

1шт.

36

0352220

Piston

SUB FOR AT132257

1шт.

38

0682705

Plate

SUB FOR TH0682705

6шт.

39

0419808

Plate

SUB FOR AT201978

6шт.

42

0419809

O-Ring

SUB FOR AT204903

1шт.

44

CH17167

O-Ring

4шт.

47

15H560

Pipe Plug

1/16"

6шт.

50

0419811

Spring

SUB FOR AT201561

4шт.

51

0682706

Ball

SUB FOR TH0682706

2шт.

58

0311336

Pipe Plug

SUB FOR TH109082

2шт.

59

CH11570

O-Ring

2шт.

60

4621112

Seal Kit

1шт.
