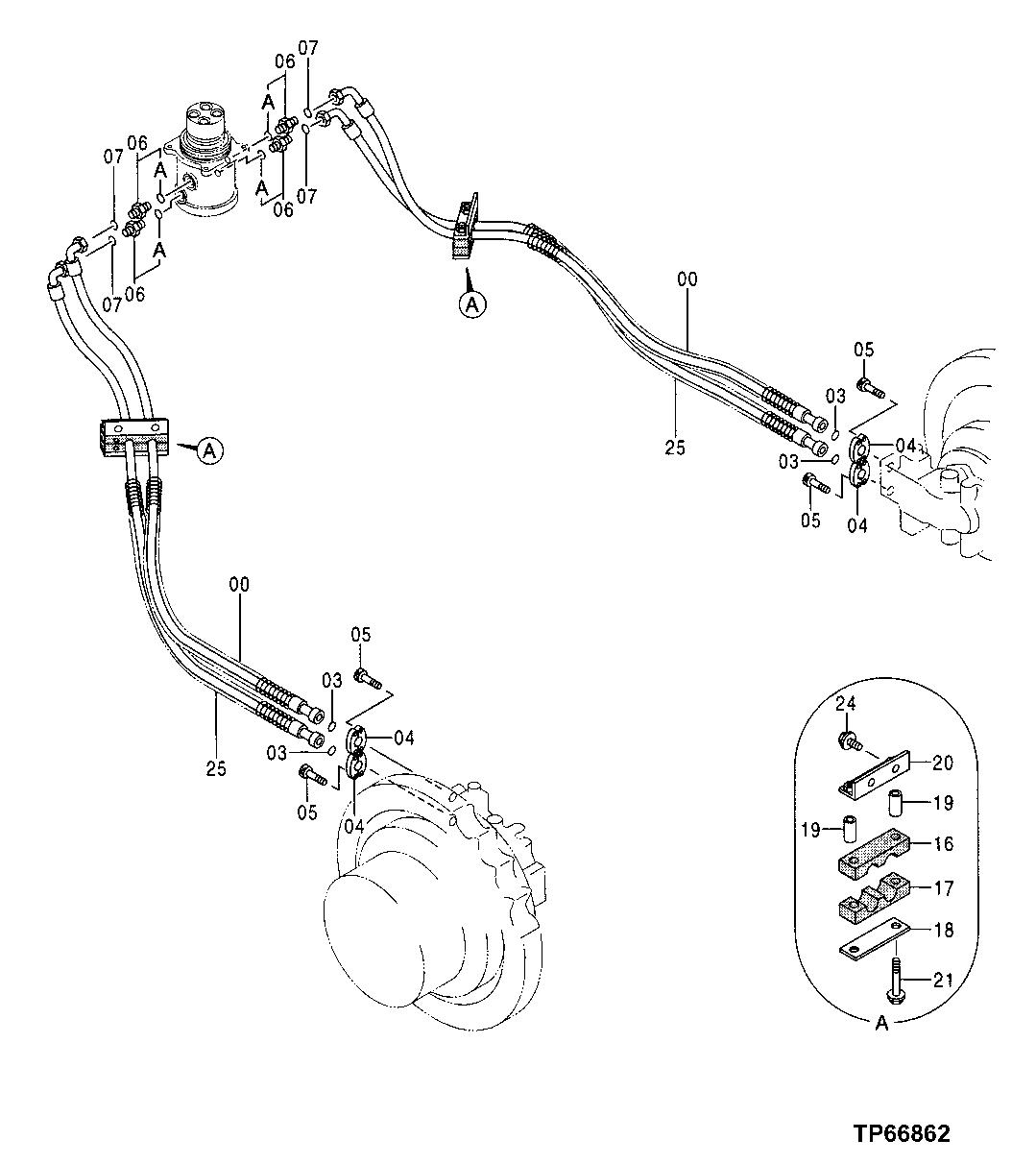

Запчасти John Deere 50 15 - TRAVEL PIPINGS 0260 HYDRAULIC SYSTEM

0

4390587

Hydraulic Hose

(SUB FOR TH4390587)

2шт.

3

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

4шт.

4

4085560

Flange Fitting

(SUB FOR TH101960)

8шт.

5

19M8395

Screw

M12 X 40

16шт.

6

4189535

Adapter Fitting

(SUB FOR AT114853)

4шт.

6A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

7

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

16

4364388

Hose Clamp

(SUB FOR TH4364388)

2шт.

17

4364389

Hose Clamp

(SUB FOR TH4364389)

2шт.

18

4364390

Plate

(SUB FOR TH4364390)

2шт.

19

4215879

Spacer

(SUB FOR AT178140)

4шт.

20

8064623

Bracket

(SUB FOR TH8064623)

2шт.

21

19M7949

Cap Screw

M12 X 100

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

24

12H301

Lock Washer

1/2"

4шт.

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

25

4390588

Hydraulic Hose

(SUB FOR TH4390588)

2шт.
