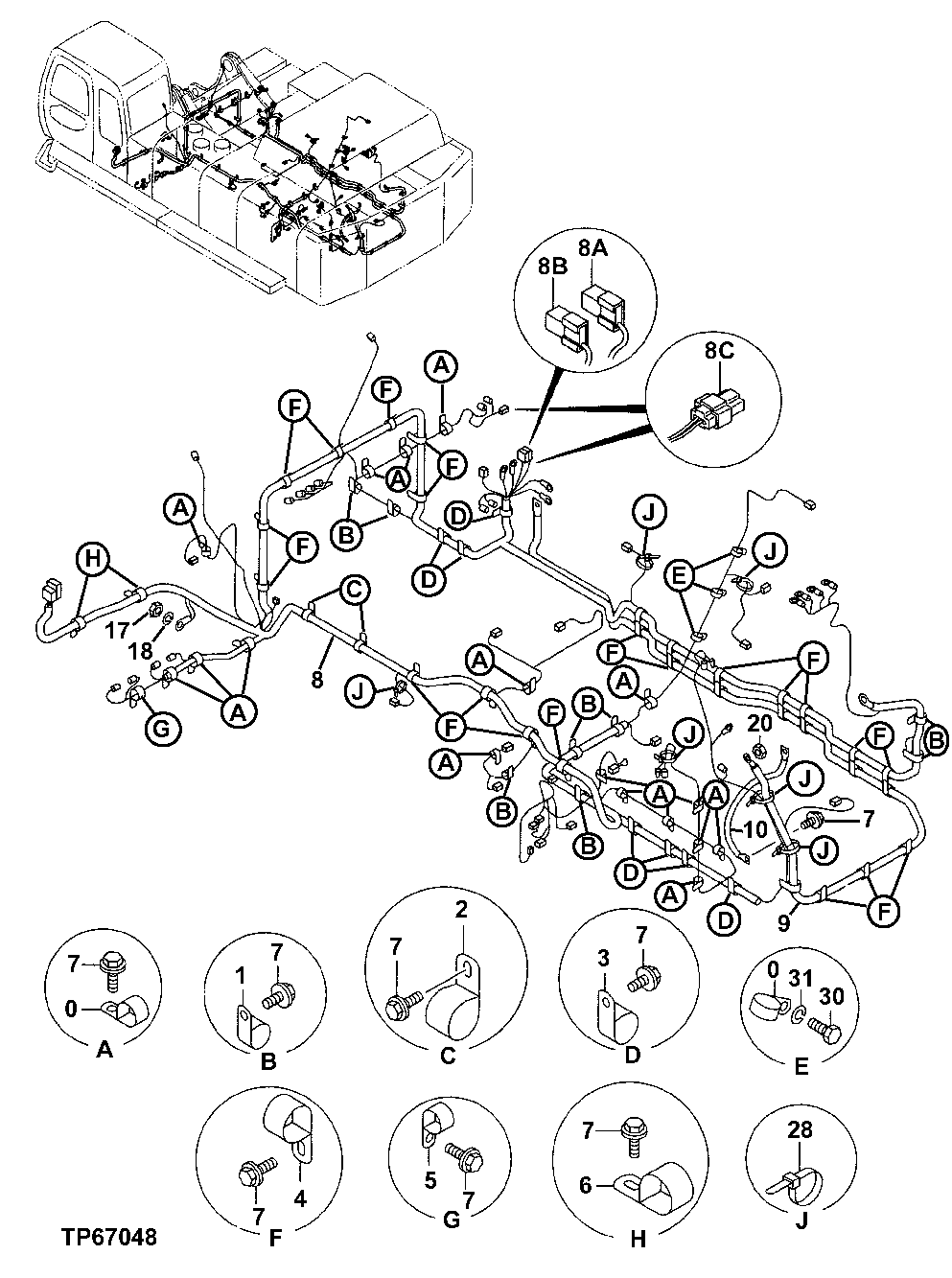

Запчасти John Deere 50 39 - ELECTRIC PARTS 1674 Wiring Harness And Switches

0

4190261

Clip

(SUB FOR TH109649)

21шт.

1

4190275

Clamp

(SUB FOR TH108598)

15шт.

2

AT121321

Hose Clamp

2шт.

3

T28949

Clamp

(SUB FOR TH108458 OR 4190274)

6шт.

4

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

22шт.

5

T38377

Clamp

1шт.

6

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

2шт.

7

19M8761

Screw

M10 X 22 (SUB FOR 19M7380)

56шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

56шт.

8

0003436

Wiring Harness

(SUB FOR TH0001975)

1шт.

8A

4315323

Fuse

(SUB FOR AT172435)

1шт.

8B

4315324

Link

(SUB FOR AT172436)

1шт.

8C

4288109

Diode

(SUB FOR (6) AT174465)

6шт.

9

4367205

Wiring Harness

(SUB FOR TH4367205)

1шт.

10

4367214

Wiring Harness

(SUB FOR TH4367214)

1шт.

17

14M7274

Nut

M10

1шт.

18

12M7066

Lock Washer

10 mm

1шт.

20

14H1040

Nut

1/2"

1шт.

28

H77698

Tie Band

6шт.

30

19M7938

Cap Screw

M10 X 20

3шт.

31

12M7066

Lock Washer

10 mm

3шт.
