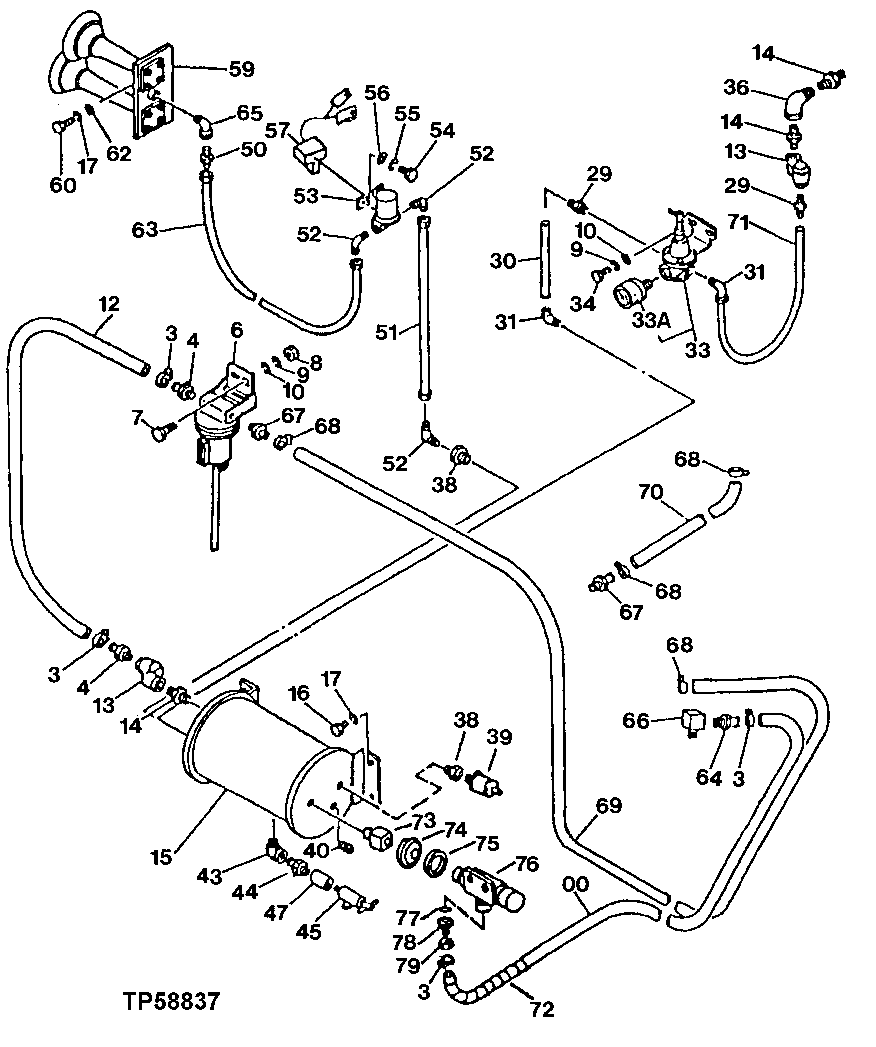

Запчасти John Deere 90 16 - AIR PIPINGS 2263 - PNEUMATIC SYSTEMS 22

47

J70083

ADAPTER FITTING

(SUB FOR TH102108) (SUB FOR TH103028)

1шт.

50

992313

ADAPTER FITTING

(SUB FOR TH102109)

1шт.

51

4049402

TUBE

(SUB FOR TH102110)

1шт.

52

992312

ELBOW FITTING

(SUB FOR TH102111)

3шт.

53

4326067

FLOW CONTROL HYD. VALVE

(SUB FOR AT167772) (HORN) (SUB FOR TH102112, ALONG WITH AT167773)

1шт.

54

19M7865

SCREW

M8 X 16

2шт.

55

COTTER PIN

2шт.

56

24M7055

WASHER

8.400 X 16 X 1.600 MM

2шт.

57

4325651

WIRE

(SUB FOR AT167773)

1шт.

59

4135433

HORN

(SUB FOR TH102114)

1шт.

60

19M8324

CAP SCREW

M10 X 16

2шт.

62

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

63

4511310

TUBE

(SUB FOR TH102115)

1шт.

64

R67293

FITTING

(SUB FOR TH102116)

1шт.

65

94-0646

ELBOW FITTING

(SUB FOR TH102117)

1шт.

66

4167360

ELBOW FITTING

(SUB FOR TH102118)

1шт.

67

4168965

FITTING

(SUB FOR TH102119)

2шт.

68

WZ2141223

HOSE CLAMP

(SUB FOR TH102120 OR AR21837, THIS APPLICATION) (SUB FOR AA34965)

4шт.

69

HOSE

(SUB FOR TH102121 OR T115300) (CUT TO LENGTH FROM TY22326 BULK MATERIAL)

1шт.

70

HOSE

(SUB FOR TH102122 OR T115300) (CUT TO LENGTH FROM TY22326 BULK MATERIAL)

1шт.

71

4054717

TUBE

(SUB FOR TH102099)

1шт.

72

T83427

CONDUIT

ARшт.

73

499820

ADAPTER FITTING

(SUB FOR TH103973)

1шт.

74

984219

SEALING WASHER

(SUB FOR TH103974)

1шт.

75

TH106786

SHIM

1шт.

76

4092238

GOVERNOR

(SUB FOR TH103975)

1шт.

77

984225

PACKING

(SUB FOR TH106787)

1шт.

78

487027

SLEEVE

(SUB FOR TH106788)

1шт.

79

TH106789

NUT

1шт.
