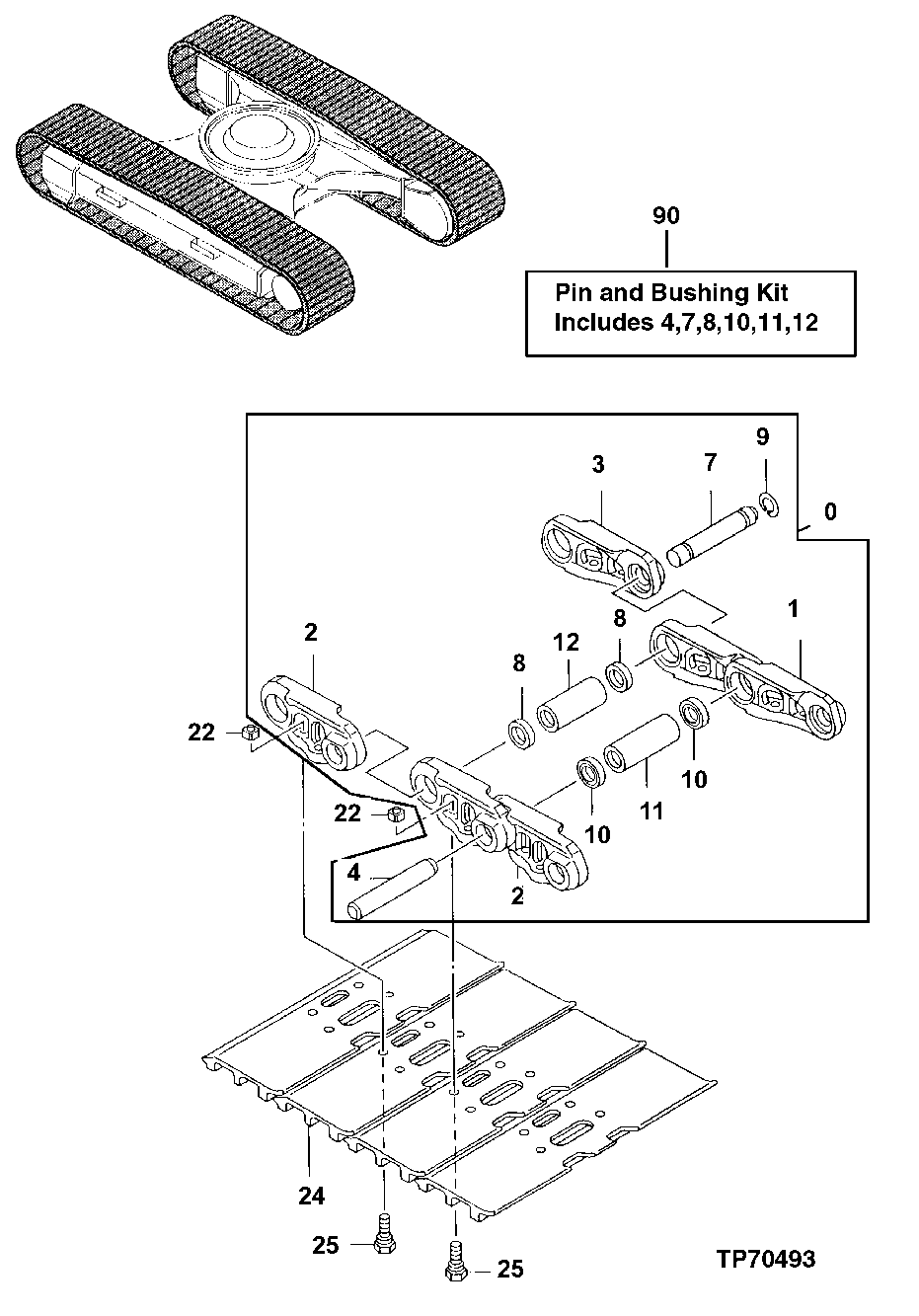

Запчасти John Deere 90 14 - REPLACEMENT TRACK CHAIN (SEMI-GROUSER SHOES FOR LONG UNDERCARRIAGE) (790) 130 - TRACKS 1

0

TRACK CHAIN W/O SHOES

( 9202848 NO LONGER AVAILABLE) (REPLACED BY AT311612) (SUB FOR AT186160) (M SEAL DESIGN) (QUANTITY OF 1 EACH SIDE OF UNIT)

1шт.

1

1028977

TRACK LINK

(SUB FOR AT217717)

50шт.

2

1028978

TRACK LINK

(SUB FOR AT217718)

51шт.

3

T209262

MASTER TRACK LINK-RH

(SUB FOR AT217752 OR 4456823)

1шт.

4

AT180028

PIN FASTENER

(K) (MASTER)

50шт.

7

AT180030

MASTER TRACK PIN

(K) (MASTER)

1шт.

8

AT219471

SPACER

(K)

2шт.

9

T209259

SNAP RING

(SUB FOR AT174863)

1шт.

10

AT186161

SEAL

(K)

100шт.

11

AT186162

BUSHING

(K)

50шт.

12

AT219468

BUSHING

(K) (MASTER)

1шт.

22

4255638

NUT

(SUB FOR AT154749) (EACH SIDE OF UNIT)

204шт.

24

2030005

OPEN CENTER 3 BAR SHOE

(SUB FOR TH102377) (600 MM - 24 INCH)

46шт.

2017550

OPEN CENTER 3 BAR SHOE

(SUB FOR TH102496) (800 MM - 32 INCH)

46шт.

25

4255637

BOLT

(SUB FOR AT154748) (EACH SIDE OF UNIT)

204шт.

90

AT187185

PIN & BUSHING KIT

(CONTAINS PARTS MARKED K) (ALSO ORDER (4) AT180028, (10) AT186161, AND (5) AT186162)

1шт.
