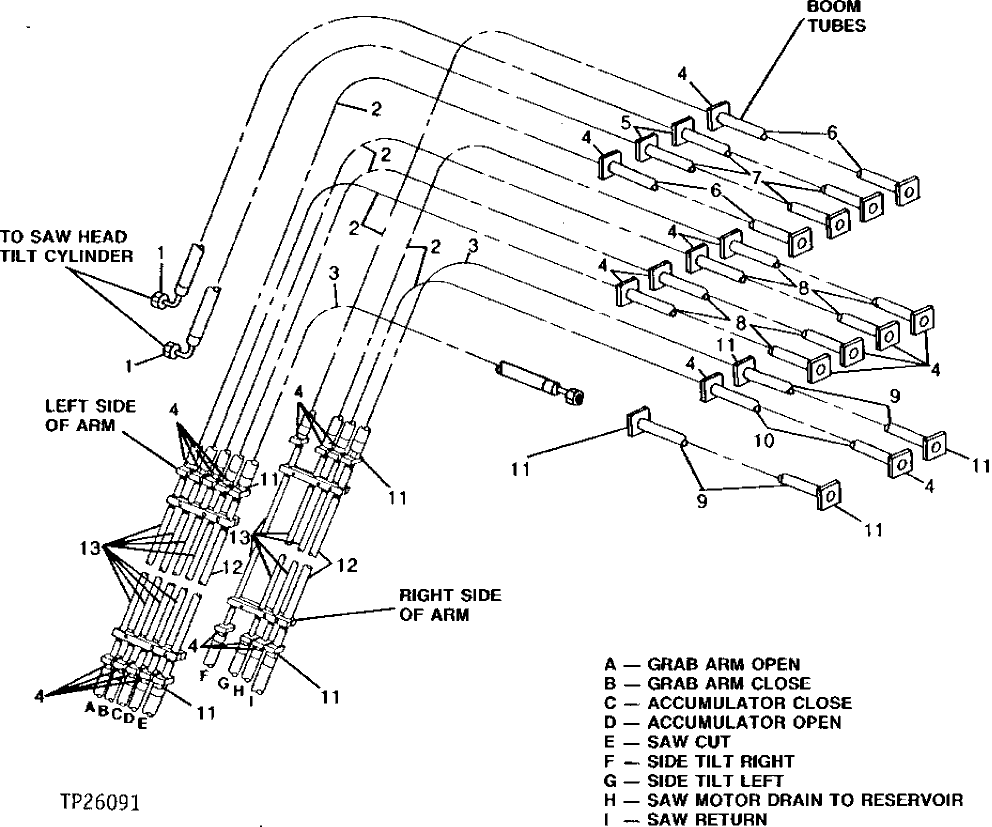

Запчасти John Deere 90D 116 - BOOM AND ARM HOSES, LINES AND CLAMPS 3360 - EXCAVATOR 33

1

AT108803

HYDRAULIC HOSE

2шт.

2

AT108804

HYDRAULIC HOSE

7шт.

3

HYDRAULIC HOSE

(SUB AT130926) ( AT108805 NO LONGER AVAILABLE)

2шт.

AT130926

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT108805)

2шт.

4

R29424

FLANGE FITTING

28шт.

19H3239

CAP SCREW

3/8" X 1-1/4"

56шт.

12H317

LOCK WASHER

9/16"

56шт.

5

H122182

FLANGE FITTING

(SUB FOR E73093)

4шт.

19H988

CAP SCREW

3/8" X 1-1/4"

8шт.

12H317

LOCK WASHER

9/16"

8шт.

6

AT108808

LINE

2шт.

7

AT108809

LINE

2шт.

8

AT108810

LINE

4шт.

9

AT108812

LINE

2шт.

10

AT108811

LINE

1шт.

11

R29867

FLANGE FITTING

8шт.

19H3205

CAP SCREW

7/16" X 1-1/2"

16шт.

12H317

LOCK WASHER

9/16"

16шт.

12

AT108814

LINE

2шт.

13

AT108815

LINE

7шт.
