8 - REPLACEMENT SWING DEVICE

Запчасти John Deere 90D 8 - REPLACEMENT SWING DEVICE 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

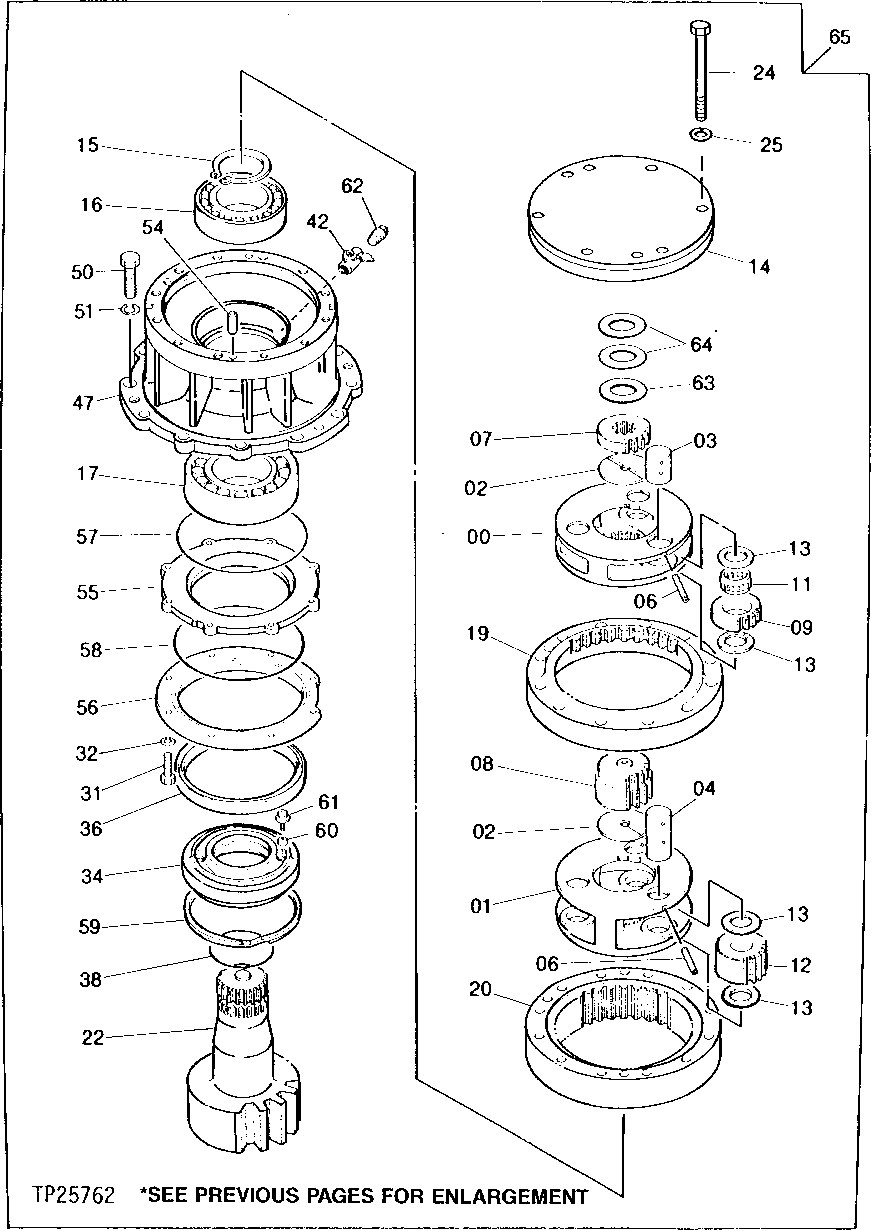

Схема запчастей John Deere 90D - 8 - REPLACEMENT SWING DEVICE 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

2022625

PLANET PINION CARRIER

(SUB FOR TH109477)

1шт.

1

1011451

PLANET PINION CARRIER

(SUB FOR TH109478)

1шт.

2

4642361

PLATE

(SUB FOR TH109479 OR 4187590)

2шт.

3

4187588

PIN

(SUB FOR TH109480)

3шт.

4

4244694

PIN FASTENER

(SUB FOR TH109481)

3шт.

6

34M5564

SPRING PIN

(SUB FOR TH109482)

6шт.

7

3035168

SUN GEAR

(SUB FOR TH109483)

1шт.

8

3039318

SUN GEAR

(SUB FOR TH109484)

1шт.

9

3035171

GEAR

(SUB FOR TH109485)

3шт.

11

4187318

NEEDLE BEARING

(SUB FOR TH109486)

3шт.

12

9725060

GEAR

(SUB FOR TH109487)

3шт.

13

4187591

PLATE

(SUB FOR TH109488)

12шт.

14

COVER

1шт.

15

40M7193

SNAP RING

(SUB FOR TH102289)

1шт.

16

TH109489

SPHERICAL ROLLER BEARING

1шт.

17

AT173109

SPHERICAL ROLLER BEARING

(SUB FOR TH109490 OR TH101854)

1шт.

19

2024897

RING GEAR

(SUB FOR TH109491)

1шт.

20

2023937

INTERMITTENT GEAR

(SUB FOR TH109492)

1шт.

22

2022626

SHAFT

(SUB FOR TH109493)

1шт.

24

BOLT

6шт.

25

12H236

LOCK WASHER

3/4"

6шт.

31

19M7493

CAP SCREW

M12 X 40

8шт.

32

12H301

LOCK WASHER

1/2"

8шт.

34

2024621

SLEEVE

(SUB FOR TH109494)

1шт.

36

4250326

SEAL

(SUB FOR AT130895 AND TH109495)

1шт.

38

AT264339

O-RING

(SUB FOR TH100122)

1шт.

42

4194712

DRAIN VALVE

(SUB FOR TH108278)

1шт.

47

1011687

HOUSING

(SUB FOR TH110136)

1шт.

54

J401640

DOWEL PIN

(SUB FOR TH110085)

2шт.

55

2025179

COVER

(SUB FOR TH110137)

1шт.

56

2024625

COVER

(SUB FOR TH109501)

1шт.

57

4210325

O-RING

(SUB FOR TH110138)

1шт.

58

4204138

O-RING

(SUB FOR TH109503)

1шт.

59

4204748

SNAP RING

(SUB FOR TH109504)

1шт.

60

4204644

MAGNET

(SUB FOR TH108284)

2шт.

61

21M7250

SCREW

M4 X 12, (SUB FOR 4204645, ALONG WITH 12H315 AND 24M7117)

2шт.

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

2шт.

24M7117

WASHER

4.300 X 9 X 0.800 MM

2шт.

62

94-2024

FITTING PLUG

(SUB FOR TH101292)

1шт.

63

SHIM

1шт.

64

SHIM

3шт.

65

9097705

DRIVE

(SUB FOR TH111876)

1шт.
