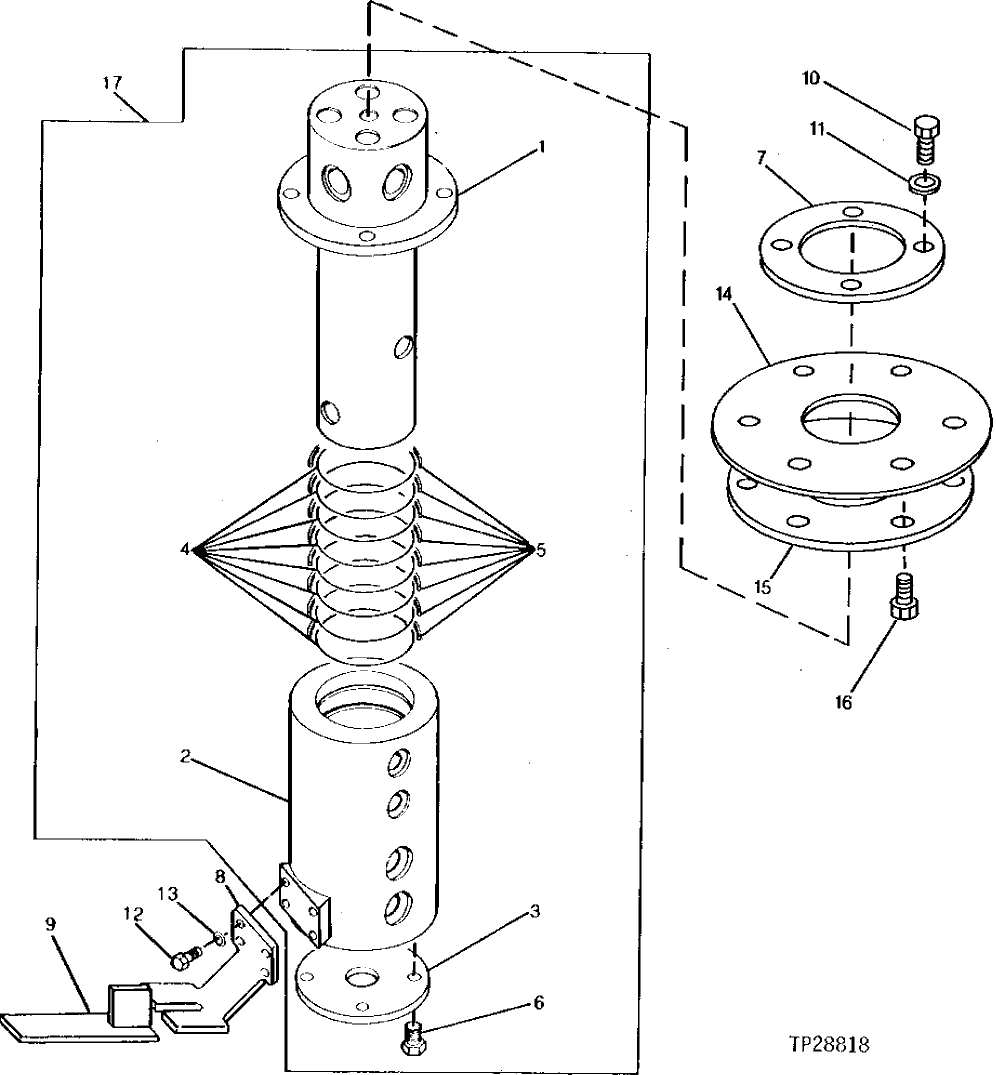

Запчасти John Deere 90D 4 - ROTARY MANIFOLD AND MOUNTING PARTS 260 - AXLES AND SUSPENSION SYSTEMS 2

1

STATOR

(NOT AVAILABLE)

1шт.

2

ROTOR

(NOT AVAILABLE)

1шт.

3

FLANGE

(NOT AVAILABLE)

1шт.

4

O-RING

(K) (SUB AT130229)

8шт.

5

RING

(K) (SUB AT130229)

8шт.

6

19M7550

CAP SCREW

(SUB FOR AT108555 OR 19M7169)

4шт.

7

AT108635

PLATE

1шт.

8

AT108639

ARM

1шт.

9

AT108636

STOP

1шт.

10

19H2898

CAP SCREW

1/2" X 1-1/4"

4шт.

11

12H301

LOCK WASHER

1/2"

4шт.

12

12H301

LOCK WASHER

1/2"

4шт.

13

19H2633

CAP SCREW

3/8" X 1-1/2", (SUB FOR AT108648)

4шт.

14

AT108638

SEAL

1шт.

15

AT108637

PLATE

1шт.

16

19H3239

CAP SCREW

3/8" X 1-1/4"

12шт.

17

AT108551

SWIVEL

ROTARY, (SUB FOR AT182274)

1шт.
