6 - FUEL SHUT-OFF AND THROTTLE CABLE BRACKET

Запчасти John Deere 90D 6 - FUEL SHUT-OFF AND THROTTLE CABLE BRACKET 413 - ENGINE 4

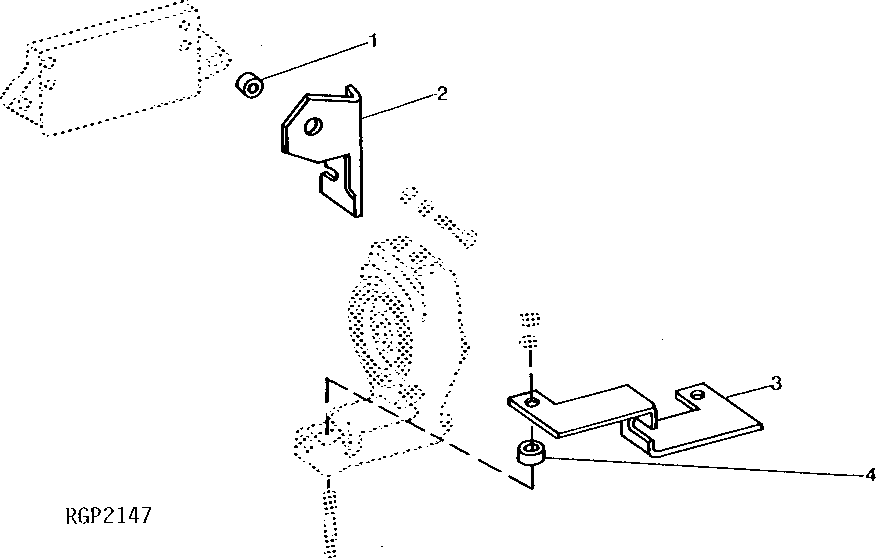

Схема запчастей John Deere 90D - 6 - FUEL SHUT-OFF AND THROTTLE CABLE BRACKET 413 - ENGINE 4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R63489

WASHER

0.472" X 0.925" X 0.120"

1шт.

2

T79243

BRACKET

(SHUT-OFF) (SUB AT128342)

1шт.

AT128342

BRACKET

1шт.

3

T79244

BRACKET

(THROTTLE) (AT 07, 08 ONLY)

1шт.

4

28H2457

WASHER

0.423" X 0.675" X 1/4"

1шт.
