179 - OIL COOLER PIPINGS (015000 - )

Запчасти John Deere 90ELC 179 - OIL COOLER PIPINGS (015000 - ) 2160 HYDRAULIC SYSTEM

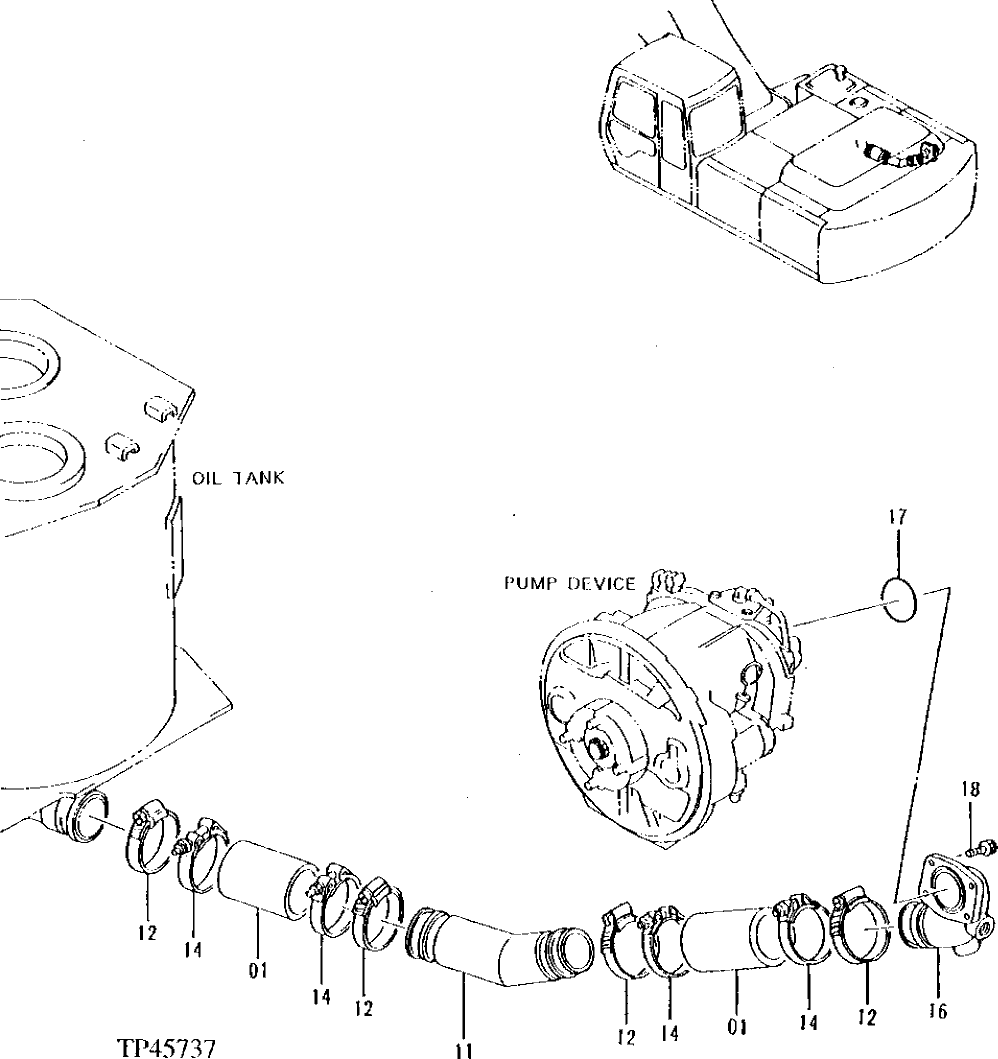

Схема запчастей John Deere 90ELC - 179 - OIL COOLER PIPINGS (015000 - ) 2160 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4348414

Hose

(SUB FOR AT176844)(SUB FOR 4109378, AL ONG WITH (2) AT56658, THIS APPLICATION)

2шт.

11

8063720

Line

(SUB FOR AT202476 ) (SUB FOR AT177405)

1шт.

12

Z29925

Clamp

(SUB FOR AH103182)

4шт.

14

AT56658

Hose Clamp

4шт.

16

2037825

Manifold

(SUB FOR AT202411 ) (SUB FOR AT176799)(USE IF AVAILABLE)

1шт.

17

CH17854

Packing

1шт.

18

19M8168

Screw

M12 X 25

4шт.
